Anti Radiation 5% Borated Polyethylene Shielding Sheet Blocks For Medical Door

Certification
China Tangyin Taixing Engineering Plastics Co., Ltd. certification
China Tangyin Taixing Engineering Plastics Co., Ltd. certification
I'm Online Chat Now

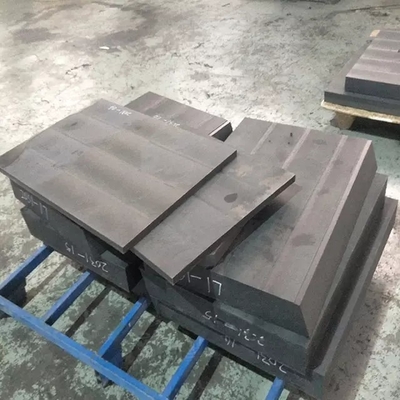

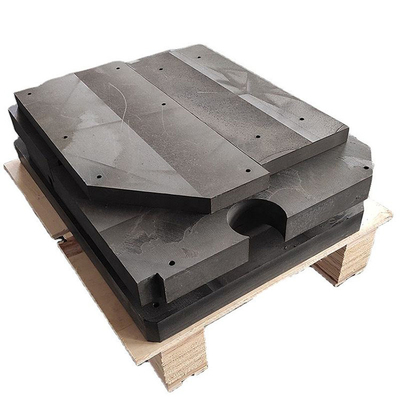

Anti Radiation 5% Borated Polyethylene Shielding Sheet Blocks For Medical Door

Anti Radiation 5% Borated Polyethylene Shielding Sheet Blocks For Medical Door
Anti Radiation 5% Borated Polyethylene Shielding Sheet Blocks For Medical Door Anti Radiation 5% Borated Polyethylene Shielding Sheet Blocks For Medical Door Anti Radiation 5% Borated Polyethylene Shielding Sheet Blocks For Medical Door Anti Radiation 5% Borated Polyethylene Shielding Sheet Blocks For Medical Door

Large Image :  Anti Radiation 5% Borated Polyethylene Shielding Sheet Blocks For Medical Door

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: Borated Polyethylene Shielding Sheet Blocks
Payment & Shipping Terms:
Minimum Order Quantity: 50 kilograms
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 5000 /Kilograms per Month

Anti Radiation 5% Borated Polyethylene Shielding Sheet Blocks For Medical Door

Description
Product Name: 5% Borated Polyethylene Shielding Sheet Blocks For Medical Door Material: 100% Virgin PE
Color: Black Size: 1220mm*2440 Mm
Thickness: 5-200mm Processing Service: Cutting, Moulding
Application: Nuclear Reactors,Medical Vaults,X-Ray Facilities
High Light:

Borated Polyethylene Shielding Sheet Blocks

,

5 borated polyethylene

,

5 borated polyethylene sheets

          Anti-radiation 5% Borated Polyethylene Shielding Sheet Blocks For Medical Door

Boron polyethylene shield (borated polyethylene shielding box) of boron polyethylene materials according to use need to customize, used for shielding radioactive source radiation shielding, in boron polyethylene shield, boron can absorb effect, of boron neutron reaction cross section is larger, in has not happened before the reaction of hydrogen boron neutron can be fully absorbed, Thus play a complete shielding role.


Anti Radiation 5% Borated Polyethylene Shielding Sheet Blocks For Medical Door 0

Boroned Polyethylene Board Advantages:

  1. Resistance to wear, because of its unique molecular structure, wear resistance is higher than general metal plastic products.
  2. Not sticky, small friction coefficient, surface tension of polarity, so no affinity with the common material, therefore not easy adhesion scaling.
  3. Small friction coefficient, good self-lubrication, small flow resistance.
  4. Chemical corrosion resistance: resistant to sulfuric acid, nitric acid and other strong oxidizer outside of acid, alkali, salt medium.
  5. Good resistance to impact, even at low temperatures, fracture by strong.
  6. Electrical insulation, good electrical insulation, high insulation resistance.



Product Specification:


Borated polyethylene is a product typically used in the medical field to shield neutrons. Made from high density polyethylene plastic with 5% boron content by weight, this material provides exceptional durability over a wide temperature range.



Project Unit Test Result
Notched Izod Impact ft. lbs/in.2 No Break
Vicat Softening Temp. ºC (ºF) 89ºC (192ºF)
Tensile Strength @ Break % >140
Elongation @ Yield p.s.i. >300
Shore Harness ShoreD 64
Flexural Modulus p.s.i. 3000



Anti Radiation 5% Borated Polyethylene Shielding Sheet Blocks For Medical Door 1


our company's standard boron content ranges from 2% to 30%, which can be customized according to customer use and needs. Boron carbide, boron trioxide, borax, boric acid, lead powder, lithium carbonate, etc. can be added to it. Size and thickness The company's design department has a specific splicing plan, and the radiation shielding performance will not be damaged after splicing.



Length x Width x Thickness ( mm ) Length x Width x Thickness (mm)
700 х 500 х 10 1000 х 500 х 10
700 х 500 х 20 1000 х 500 х 20
700 х 500 х 25 1000 х 500 х 25
700 х 500 х 30 1000 х 500 х 30
700 х 500 х 40 1000 х 500 х 40
700 х 500 х 50 1000 х 500 х 50
700 х 500 х 60 1000 х 500 х 60
700 х 500 х 65 1000 х 500 х 65
700 х 500 х 70 1000 х 500 х 70


Anti Radiation 5% Borated Polyethylene Shielding Sheet Blocks For Medical Door 2





Why Choose Boron-polyethylene board :


First of all, borated polyethylene is used in the nuclear power industry — to protect employees from radiation caused by:

  • fast and thermal neutrons;
  •  alpha and gamma radiation (primary and secondary).

Speaking generally, almost all structural divisions of nuclear power need borated polyethylene sheets:

  • nuclear power plants;
  • nuclear - powered ships, etc.

BPE sheets with the right distance from the source of ionizing radiation, dimensions, boron concentration and some other indicators can both delay background radiation and active radiation by 100%, and reduce their intensity to health-safe values.

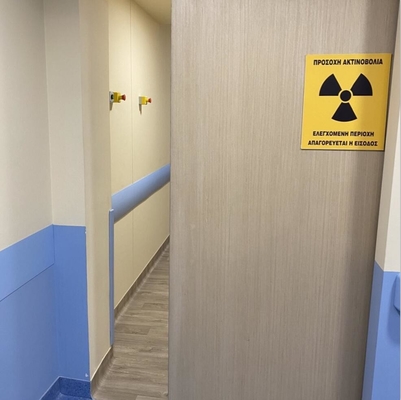

The second area of application of borated polyethylene is medical institutions — where there is a risk of radiation exposure: X-ray rooms, treatment rooms using fast neurons, rooms for fluorography, radiation therapy for cancer, etc.



The third area of demand is the creation of a safe environment in laboratories using radioactive installations and/or components.



Finally, borated polyethylene boards are purchased by ordinary citizens for household purposes if their homes are located near radio-emitting objects or the radio background is increased due to poor-quality building materials of walls, ceiling, etc.





FAQ:


1. Q: Are you a manufacturer or a trading company?

A: We are one of the leading PE manufacturer in China for more than 20 years.

2. Q: How long can I get the latest price?

A: We usually quote within 12 hours after we get your inquiry.

3. Q: What is your mainly products

A: UHMWPE/HDPE outrigger pads, HDPE ground protection mats, UHMWPE sheet, PE chopping board, UHMW PE belt conveyor roller, UHMWPE fender.

4. Q: Do your factory inspect the finished products?

A: Yes. Each step of products and finished products will be carried out inspection by QC department before shipping.

5. Q: How can I get sample from you

A: Just send your requirement and we will send you the samples accordingly by DHL,UPS,TNT or others
