Black Neutron Shielding Material 7% Borated Polyethylene Boron Carbide Board

Black Neutron Shielding Material 7% Borated Polyethylene Boron Carbide Board
Black Neutron Shielding Material 7% Borated Polyethylene Boron Carbide Board Black Neutron Shielding Material 7% Borated Polyethylene Boron Carbide Board Black Neutron Shielding Material 7% Borated Polyethylene Boron Carbide Board Black Neutron Shielding Material 7% Borated Polyethylene Boron Carbide Board

Large Image :  Black Neutron Shielding Material 7% Borated Polyethylene Boron Carbide Board

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: Borated Polyethylene Boron Carbide Board
Payment & Shipping Terms:
Minimum Order Quantity: 50 kilograms
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 5000 /Kilograms per Month

Black Neutron Shielding Material 7% Borated Polyethylene Boron Carbide Board

Description
Item:: 5 Neutron Shielding Material 7% Borated Polyethylene Boron Carbide Board Material: 100% Virgin PE
Color:: Black Size:: 1220mm*2440 Mm
Thickness:: 5-200mm Elemental Boron: 7% By Weight
Processing Service:: Cutting, Moulding
High Light:

Borated Polyethylene Boron Carbide Board

,

Black boron polyethylene Board

,

Neutron Shielding boron polyethylene

          Neutron Shielding Material 7% Borated Polyethylene Boron Carbide Board


Black Neutron Shielding Material 7% Borated Polyethylene Boron Carbide Board

Boron polyethylene shield (borated polyethylene shielding box) of boron polyethylene materials according to use need to customize, used for shielding radioactive source radiation shielding, in boron polyethylene shield, boron can absorb effect, of boron neutron reaction cross section is larger, in has not happened before the reaction of hydrogen boron neutron can be fully absorbed, Thus play a complete shielding role.

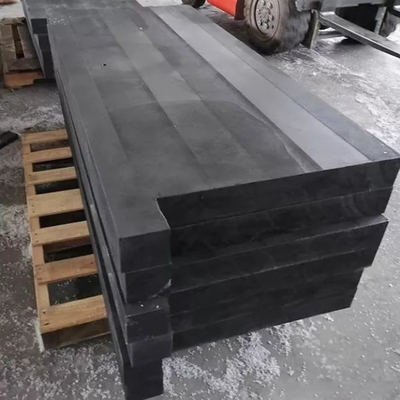

Black Neutron Shielding Material 7% Borated Polyethylene Boron Carbide Board 0

Boroned Polyethylene Board Advantages:



1.Borated polyethylene board is an effective and well-received anti-neutron material, with good shielding effect, no corrosion to equipment, wide application range, waste materials can be recycled, and no environmental pollution.


2.Compared with metal and concrete materials, 5 borated polyethylene sheet has the characteristics of low density, simple loading and unloading, convenient use, low cost, and good processing performance.

Product Specification:


Instead of a portable shield, the plate is used as a gasket and electrical insulation in various hollow structures or devices whose housing is protected by a casing (the plate is placed between the housing and the casing or is tightly lined on the outside of the object).



Project Unit Test Result
Notched Izod Impact ft. lbs/in.2 No Break
Vicat Softening Temp. ºC (ºF) 89ºC (192ºF)
Tensile Strength @ Break % >140
Elongation @ Yield p.s.i. >300
Shore Harness ShoreD 64
Flexural Modulus p.s.i. 3000

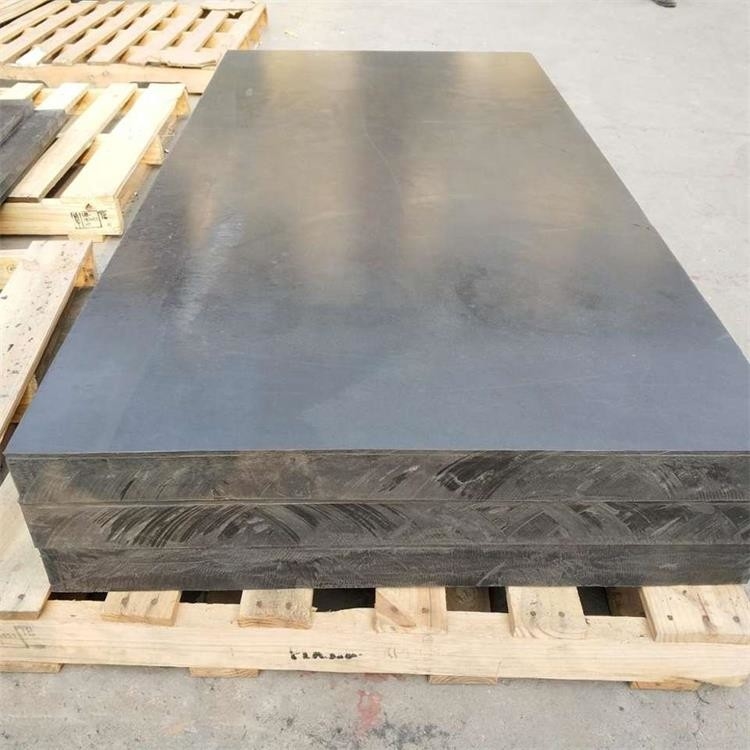

Black Neutron Shielding Material 7% Borated Polyethylene Boron Carbide Board 1


Borated polyethylene is a product typically used in the medical field to shield neutrons. Made from high density polyethylene plastic with 5% boron content by weight, this material provides exceptional durability over a wide temperature range.



Length x Width x Thickness ( mm ) Length x Width x Thickness (mm)
700 х 500 х 10 1000 х 500 х 10
700 х 500 х 20 1000 х 500 х 20
700 х 500 х 25 1000 х 500 х 25
700 х 500 х 30 1000 х 500 х 30
700 х 500 х 40 1000 х 500 х 40
700 х 500 х 50 1000 х 500 х 50
700 х 500 х 60 1000 х 500 х 60
700 х 500 х 65 1000 х 500 х 65
700 х 500 х 70 1000 х 500 х 70

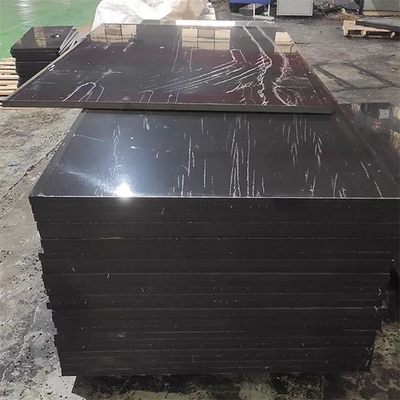

Black Neutron Shielding Material 7% Borated Polyethylene Boron Carbide Board 2



Composition of borated polyethylene​ :


 Borated polyethylene is manufactured according to TU 20.16.10.111 – 012. – 27395268 – 2021. According to the provisions of this document, the boards consist of high-molecular polyethylene. The minimum concentration of boron is 3%, the maximum is 30%.There are three molecular carriers of boron:

  • amorphous boron;
  • chemically pure boron carbide;
  • the composition of boron carbide with the isotope B10.

The following requirements are imposed on the content of boron in polyethylene, depending on the brand:

  • 3% (BPE-3)
  • 5% (BPE-5)
  • 7% (BPE-7)
  • 8% (BPE-8)
  • 10% (BPE-10)
  • 12% (BPE-12)
  • 20% (BPE-20)
  • 30% (BPE-30)

BPE boards are allowed to operate under reactor irradiation conditions and in environments heated to 100 ° C. The limit value of relative humidity is 100%. It is not prohibited to use in water, including sea, if the minimum temperature does not fall below -2 °C and does not rise above +30 ° C.



Application:


The radiation shielding sheet is wrapped in the wall by the board, and is mainly used in major nuclear power plants, nuclear-powered ships, nuclear reactors, China National Petroleum Corporation, the military, the Chinese Academy of Sciences, scientific research laboratories, hospitals, and nuclear test product tanks, etc., as a shielding neutron, radiation shielding and absorbing materials.



Black Neutron Shielding Material 7% Borated Polyethylene Boron Carbide Board 3



FAQ:


Q1: Are you a trading company or manufacturer?
A1: We are manufacture to produce boron polyethylene plate.


Q2: What is your MOQ of boron polyethylene plate?
A2: It depends on the stock we have and the size you need.


Q3: Q: How soon can I get the goods?
A3: Generally, 5-10 days with stock and 15-20 days without stock, according to quantity.



Q4: How about your after-sales service?
A4: We have A dedicated after sales tracker, any need can contact us at any time.
