3% Radiation Protection Boron Polyethylene Shield For Radiation Shielding Door

Certification
China Tangyin Taixing Engineering Plastics Co., Ltd. certification
China Tangyin Taixing Engineering Plastics Co., Ltd. certification
I'm Online Chat Now

3% Radiation Protection Boron Polyethylene Shield For Radiation Shielding Door

3% Radiation Protection Boron Polyethylene Shield For Radiation Shielding Door
3% Radiation Protection Boron Polyethylene Shield For Radiation Shielding Door 3% Radiation Protection Boron Polyethylene Shield For Radiation Shielding Door 3% Radiation Protection Boron Polyethylene Shield For Radiation Shielding Door 3% Radiation Protection Boron Polyethylene Shield For Radiation Shielding Door

Large Image :  3% Radiation Protection Boron Polyethylene Shield For Radiation Shielding Door

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: Boron polyethylene shield
Payment & Shipping Terms:
Minimum Order Quantity: 50 kilograms
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 5000 /Kilograms per Month

3% Radiation Protection Boron Polyethylene Shield For Radiation Shielding Door

Description
Item:: Radiation Protection Borated Polyethylene Sheet Material: 100% Virgin PE
Color:: Natural White, Black, Yellow Size:: 1220mm*2440 Mm
Thickness:: 5-200mm Density:: 0.94-0.98 G/cm3
Processing Service:: Cutting, Moulding
High Light:

Boron polyethylene shield

,

Radiation borated polyethylene sheets

,

Radiation Shielding Door Boron Polyethylene

            3% Radiation Protection Boron Polyethylene Shield For Radiation Shielding Door


Boron polyethylene shield (borated polyethylene shielding box) of boron polyethylene materials according to use need to customize, used for shielding radioactive source radiation shielding, in boron polyethylene shield, boron can absorb effect, of boron neutron reaction cross section is larger, in has not happened before the reaction of hydrogen boron neutron can be fully absorbed, Thus play a complete shielding role.

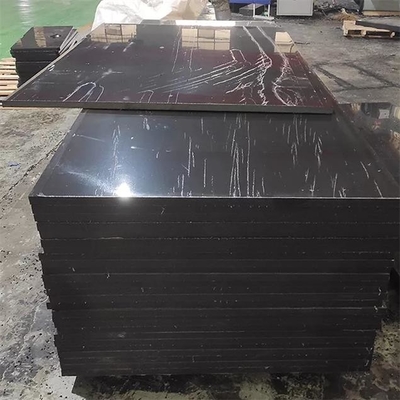

3% Radiation Protection Boron Polyethylene Shield For Radiation Shielding Door 0

Boroned Polyethylene Board Advantages:

  1. Resistance to wear, because of its unique molecular structure, wear resistance is higher than general metal plastic products.
  2. Not sticky, small friction coefficient, surface tension of polarity, so no affinity with the common material, therefore not easy adhesion scaling.
  3. Small friction coefficient, good self-lubrication, small flow resistance.
  4. Chemical corrosion resistance: resistant to sulfuric acid, nitric acid and other strong oxidizer outside of acid, alkali, salt medium.
  5. Good resistance to impact, even at low temperatures, fracture by strong.
  6. Electrical insulation, good electrical insulation, high insulation resistance.



Product Specification:


Instead of a portable shield, the plate is used as a gasket and electrical insulation in various hollow structures or devices whose housing is protected by a casing (the plate is placed between the housing and the casing or is tightly lined on the outside of the object).



Project Unit Test Result
Notched Izod Impact ft. lbs/in.2 No Break
Vicat Softening Temp. ºC (ºF) 89ºC (192ºF)
Tensile Strength @ Break % >140
Elongation @ Yield p.s.i. >300
Shore Harness ShoreD 64
Flexural Modulus p.s.i. 3000

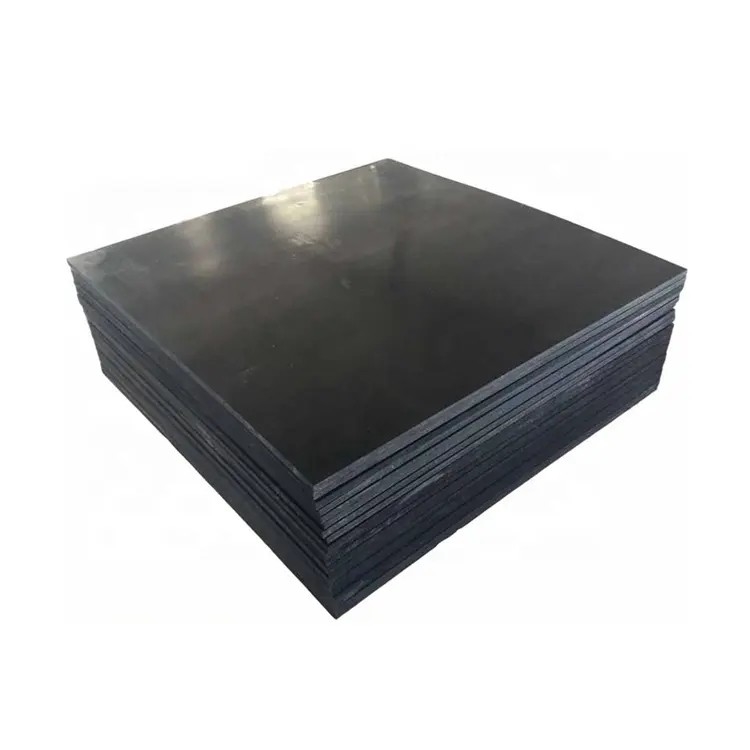

3% Radiation Protection Boron Polyethylene Shield For Radiation Shielding Door 1


The easiest way to target the use of borinated polyethylene is to choose a suitable size plate and immediately use it as a mobile shield.


Length x Width x Thickness ( mm ) Length x Width x Thickness (mm)
700 х 500 х 10 1000 х 500 х 10
700 х 500 х 20 1000 х 500 х 20
700 х 500 х 25 1000 х 500 х 25
700 х 500 х 30 1000 х 500 х 30
700 х 500 х 40 1000 х 500 х 40
700 х 500 х 50 1000 х 500 х 50
700 х 500 х 60 1000 х 500 х 60
700 х 500 х 65 1000 х 500 х 65
700 х 500 х 70 1000 х 500 х 70

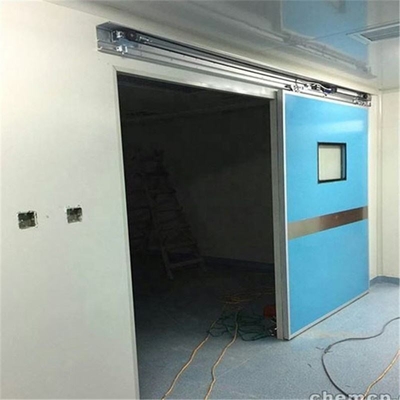

3% Radiation Protection Boron Polyethylene Shield For Radiation Shielding Door 2





Why Choose Boron-polyethylene board :


First of all, borated polyethylene is used in the nuclear power industry — to protect employees from radiation caused by:

  • fast and thermal neutrons;
  •  alpha and gamma radiation (primary and secondary).

Speaking generally, almost all structural divisions of nuclear power need borated polyethylene sheets:

  • nuclear power plants;
  • nuclear - powered ships, etc.

BPE sheets with the right distance from the source of ionizing radiation, dimensions, boron concentration and some other indicators can both delay background radiation and active radiation by 100%, and reduce their intensity to health-safe values.



The second area of application of borated polyethylene is medical institutions — where there is a risk of radiation exposure: X-ray rooms, treatment rooms using fast neurons, rooms for fluorography, radiation therapy for cancer, etc.



The third area of demand is the creation of a safe environment in laboratories using radioactive installations and/or components.



Finally, borated polyethylene boards are purchased by ordinary citizens for household purposes if their homes are located near radio-emitting objects or the radio background is increased due to poor-quality building materials of walls, ceiling, etc.





FAQ:


1. Q: Are you a manufacturer or a trading company?

A: We are one of the leading PE manufacturer in China for more than 20 years.

2. Q: How long can I get the latest price?

A: We usually quote within 12 hours after we get your inquiry.

3. Q: What is your mainly products

A: UHMWPE/HDPE outrigger pads, HDPE ground protection mats, UHMWPE sheet, PE chopping board, UHMW PE belt conveyor roller, UHMWPE fender.

4. Q: Do your factory inspect the finished products?

A: Yes. Each step of products and finished products will be carried out inspection by QC department before shipping.

5. Q: How can I get sample from you

A: Just send your requirement and we will send you the samples accordingly by DHL,UPS,TNT or others
