Product Details:
|
Item:: | Boron-containing Polyethylene Shield HDPE Boron Doped Polyethylene Sheets | Material: | 100% Virgin PE |
---|---|---|---|
Color:: | Natural White, Black, Yellow | Size:: | 1220mm*2440 Mm |
Thickness:: | 5-200mm | Density:: | 0.94-0.98 G/cm3 |
Processing Service:: | Cutting, Moulding | ||
High Light: | HDPE Boron Doped Polyethylene Sheets,3% Boron Containing Polyethylene Shield,HDPE borated polyethylene neutron shielding |

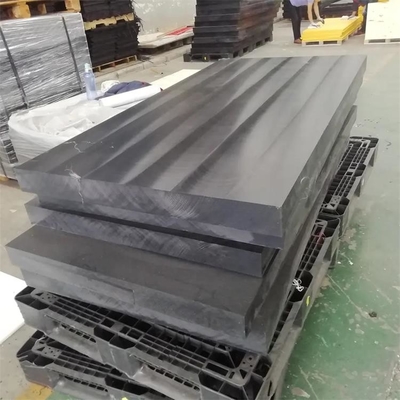

Boron-containing Polyethylene Shield HDPE Boron Doped Polyethylene Sheets
3% Boron-containing Polyethylene Shield HDPE Boron Doped Polyethylene Sheets
Boron polyethylene shield (borated polyethylene shielding box) of boron polyethylene materials according to use need to customize, used for shielding radioactive source radiation shielding, in boron polyethylene shield, boron can absorb effect, of boron neutron reaction cross section is larger, in has not happened before the reaction of hydrogen boron neutron can be fully absorbed, Thus play a complete shielding role.
Boroned Polyethylene Board Advantages:
Product Specification:
3% borated polyethylene sheets are a special product that was developed to protect people from neutron radiation .It has produced under industrial conditions by hot forming.
Project | Unit | Test Result |
Notched Izod Impact | ft. lbs/in.2 | No Break |
Vicat Softening Temp. | ºC (ºF) | 89ºC (192ºF) |
Tensile Strength @ Break | % | >140 |
Elongation @ Yield | p.s.i. | >300 |
Shore Harness | ShoreD | 64 |
Flexural Modulus | p.s.i. | 3000 |
PE boron-containing board is mainly used to protect neutrons and gamma rays, with good radiation resistance, no activation products, low gamma ray energy, high mechanical properties, corrosion resistance, non-toxic and tasteless, impact resistance, low temperature resistance and chemical stability.
Length x Width x Thickness ( mm ) | Length x Width x Thickness (mm) |
700 х 500 х 10 | 1000 х 500 х 10 |
700 х 500 х 20 | 1000 х 500 х 20 |
700 х 500 х 25 | 1000 х 500 х 25 |
700 х 500 х 30 | 1000 х 500 х 30 |
700 х 500 х 40 | 1000 х 500 х 40 |
700 х 500 х 50 | 1000 х 500 х 50 |
700 х 500 х 60 | 1000 х 500 х 60 |
700 х 500 х 65 | 1000 х 500 х 65 |
700 х 500 х 70 | 1000 х 500 х 70 |
Why Choose Boron-polyethylene board :
First of all, borated polyethylene is used in the nuclear power industry — to protect employees from radiation caused by:
Speaking generally, almost all structural divisions of nuclear power need borated polyethylene sheets:
BPE sheets with the right distance from the source of ionizing radiation, dimensions, boron concentration and some other indicators can both delay background radiation and active radiation by 100%, and reduce their intensity to health-safe values.

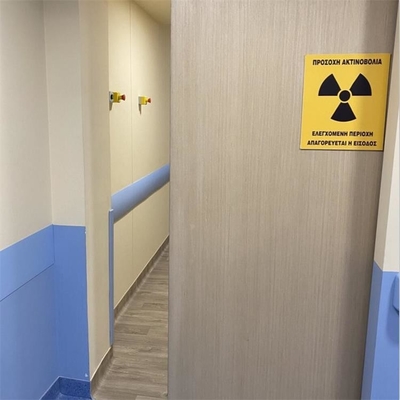

The second area of application of borated polyethylene is medical institutions — where there is a risk of radiation exposure: X-ray rooms, treatment rooms using fast neurons, rooms for fluorography, radiation therapy for cancer, etc.
The third area of demand is the creation of a safe environment in laboratories using radioactive installations and/or components.
Finally, borated polyethylene boards are purchased by ordinary citizens for household purposes if their homes are located near radio-emitting objects or the radio background is increased due to poor-quality building materials of walls, ceiling, etc.
FAQ:
Q1: Are you a trading company or manufacturer?
A1: We are manufacture to produce boron polyethylene plate.
Q2: What is your MOQ of boron polyethylene plate?
A2: It depends on the stock we have and the size you need.
Q3: Q: How soon can I get the goods?
A3: Generally, 5-10 days with stock and 15-20 days without stock, according to quantity.
Q4.: How about your after-sales service?
A4: We have A dedicated after sales tracker, any need can contact us at any time.
Q5. How can I get sample from you
A5: Just send your requirement and we will send you the samples accordingly by DHL,UPS,TNT or others
