Product Details:
|
| Item: | Idler Roller UHMWPE Plastic Conveyor Belt Roller | Material: | PE Virgin 100% |
|---|---|---|---|
| Color: | Blue ,Black Or Customized | Size: | Dia: 76-194mm |
| Structure: | Ordinary Roller | Surface: | Smooth,Matte,Orange Peel |
| Process: | Mould Pressing | ||
| High Light: | Plastic Belt Conveyor Idler Roller,UHMWPE idler conveyor roller,UHMWPE Conveyor Idler Roller |
||
Adjustable Guide Roller Industrial UHMWPE Plastic Belt Conveyor Idler Roller

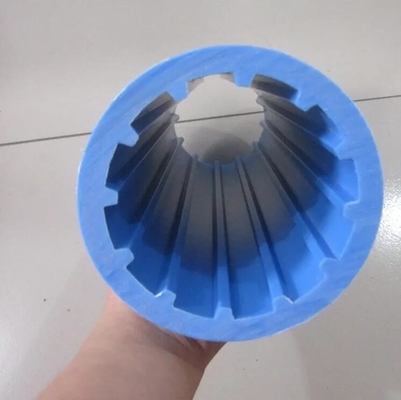

polyethylene plastic belt conveyor roller is a high-tech product, which consists of uhmwpe pipe,metal bearing, metal shaft , plastic bearing housing , sealing ring and so on . Compared with metal roller , uhmwpe plastic roller has many obvious advantages in performance.
Plastic conveyor rollers Features:
Product Specification:
Roller for Conveyor market well-known brands, a variety of standard and non-standard roller service nearly a thousand large customers.
|
Outer Diameter D1(mm)
|
Shaft Diameter D2 (mm)
|
Customized(mm) |
Bearing Type (HRB/LYC/SKF) |
Bearing size (mm) |
| Dia76 | Dia20 |
Custom Length: 150-2000
Spindle Head Custom: Milling, Punch, Thread |
6204 | 20*47*14 |
| Dia89 | Dia20 | 6204 | 20*47*14 | |
| Dia102 | Dia20 | 6204 | 20*47*14 | |
| Dia25 | 6205 | 25*52*15 | ||
| Dia108 | Dia20 | 6304 | 25*52*15 | |
| Dia25 | 6205 | 25*52*15 | ||
| Dia114 | Dia25 | 6205 | 25*52*15 | |
| Dia127 | Dia25 | 6305 | 25*62*17 | |
| Dia30 | 6306 | 30*72*19 | ||
| Dia133 | Dia25 | 6305 | 25*62*17 | |
| Dia140 | Dia25 | 6305 | 25*62*17 | |
| Dia152 | Dia35 | 6307 | 35*80*21 | |
| Dia159 | Dia35 | 6307 | 35*80*21 |
UHMWPE Conveyor Roller have many features like lightweight, small wear, anti-UV, anti-static, labyrinth seal, high self-lubricating property, it can work well with belt. While UHMW Idler has high impact resistance and tenacity to bear the impact and shake.
Characteristics of plastic Conveying roller:
1. High-wear resistance is seven times the wear resistance of steel and four times that of PTFE.
2. High impact resistance two times impact resistance than PC, five times than ABS.
3. Self-lubrication is the same as PTFE, better than steel and brass appended lubricating oil.
4. Anti-corrosion resistance, stable chemicals property and can endure the corrosion of all kinds of corrosive medium and organic solvent in certain rang of temperature and humidity.
5. Non-sticking the smooth surface of the product hardly affixes other material.
6. Low-temperature resistance in (-196), it still has the prolongation and high tensile strength.
7. Non-toxic and clean property.
Application:
UHMW conveyor rollers are widely used in cement, coal, gravel, fertilizers, ports, chemicals, quarrying, zinc mining, grain. General industry Coal Mining, Cement, Concrete, Limestone, and Quarry.
Chemical Industry Fertilizer, Salt, Sugar, Pulp Paper, Acid, and Alkaline.Other Material Handling Equipment system.
FAQ:
Q1: What is the main size of your HDPE /UHMWPE conveyor roller?
A1:φ89,φ102,φ108,φ114,φ127,φ133,φ140,φ152,φ159, The length could be customized. So please do not worry about the size.
Q2: What color of plastic conveyor rolleryou can produce?
A2: Our common colors are black and blue. we can produce other colors according to your requirement too.
Q3:Do you make a customized logo on the HDPE/UHMWPE conveyor rollers?
A4: Yes, we do. Just send your artwork for the logo. We will print the logo on the seals as your request.
Q4: Could you provide a product customization service?
A4: Yes, and it's better to get your drawing or idea of it.
