Product Details:
|
Item:: | Abrasion Industrial UHMWPE Conveyor Belt Idler Roller | Material: | PE Virgin 100% |
---|---|---|---|
Color:: | Blue,Black Or Customized | Size:: | Dia: 76-194mm |
Type: | Grooved Conveyor Idler | Density: | 0.94-0.96 G/cm3 |
Process: | Mould Pressing | ||
High Light: | UHMWPE Conveyor Belt Idler Roller,Abrasion Conveyor Belt Idler Roller,Chemical Industry Conveyor Belt Idler Roller |

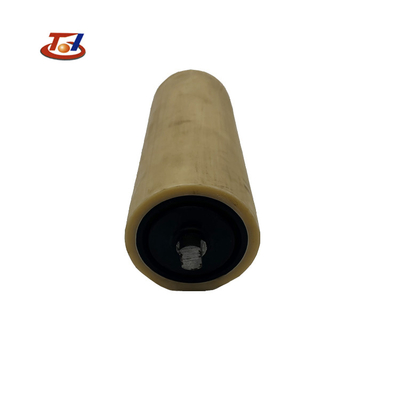

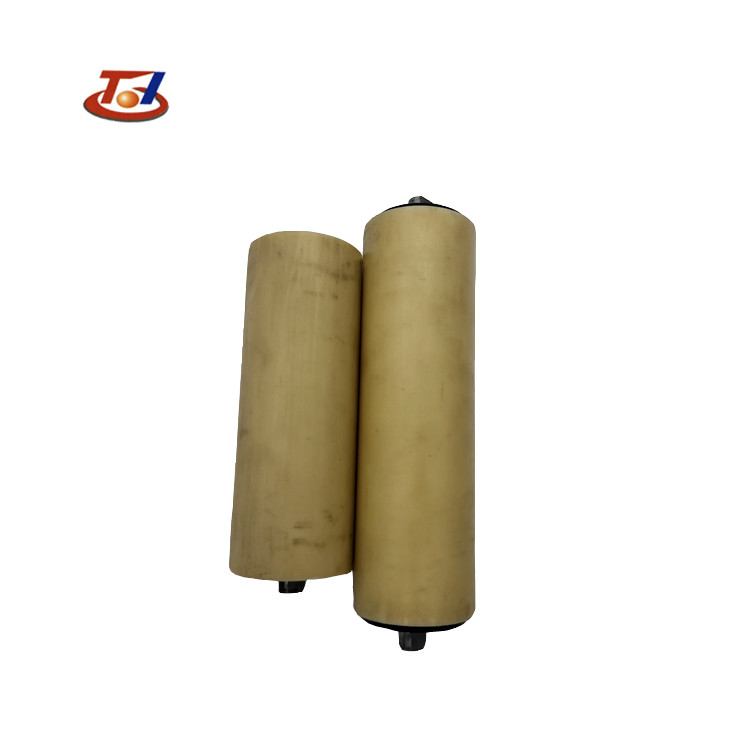

Abrasion Industrial UHMWPE Conveyor Belt Idler Roller Used in Chemical Industry
The effectiveness of the UPE Plastic Conveyor Roller provides the solution to the environmental challenges of dust, dirt, water, low and high temperatures. Our UPE Conveyor Idler is a high-tech product, which consists of uhmwpe pipe, metal bearing, metal shaft, plastic bearing housing, sealing ring, etc. Especially for our conveyor roller, adopting the new labyrinth groove combined sealing technology, which make the waterproof and dustproof effect more remarkable.
Plastic conveyor rollers Features:
Durable for over 3 years
Withstand 30,000 hours of rotation, super long life
Better than metal rollers
Lightweight silenced rain resistance reduces belt wear
Product Specification:
UPE roller is the replacement product of metal roller, is widely used in places with extremely harsh conditions, having a high cost performance.
Outer Diameter D1(mm)
|
Shaft Diameter D2 (mm)
|
Customized(mm) |
Bearing Type (HRB/LYC/SKF) |
Bearing size (mm) |
Dia76 | Dia20 |
Custom Length: 150-2000
Spindle Head Custom: Milling, Punch, Thread |
6204 | 20*47*14 |
Dia89 | Dia20 | 6204 | 20*47*14 | |
Dia102 | Dia20 | 6204 | 20*47*14 | |
Dia25 | 6205 | 25*52*15 | ||
Dia108 | Dia20 | 6304 | 25*52*15 | |
Dia25 | 6205 | 25*52*15 | ||
Dia114 | Dia25 | 6205 | 25*52*15 | |
Dia127 | Dia25 | 6305 | 25*62*17 | |
Dia30 | 6306 | 30*72*19 | ||
Dia133 | Dia25 | 6305 | 25*62*17 | |
Dia140 | Dia25 | 6305 | 25*62*17 | |
Dia152 | Dia35 | 6307 | 35*80*21 | |
Dia159 | Dia35 | 6307 | 35*80*21 |
UHMWPE conveyor belt roller has a novel structure, reliability seal, and advanced material selection. Rollers and housing are made of ultra-High Molecular Weight Polyethylene (UHMWPE) which has anti-friction self-lubrication, impact resistance, anti-adhesion, and anti-corrosion, resistant to aging, and other characteristics.
Characteristics of plastic Conveying roller:
1. High-wear resistance is seven times the wear resistance of steel and four times that of PTFE.
2. High impact resistance two times impact resistance than PC, five times than ABS.
3. Self-lubrication is the same as PTFE, better than steel and brass appended lubricating oil.
4. Anti-corrosion resistance, stable chemicals property and can endure the corrosion of all kinds of corrosive medium and organic solvent in certain rang of temperature and humidity.
5. Non-sticking the smooth surface of the product hardly affixes other material.
6. Low-temperature resistance in (-196), it still has the prolongation and high tensile strength.
7. Non-toxic and clean property.
Packaging & Shipping
Packing Details: Standard wooden package box or as per your requirements.
Delivery Details: 15-25 days according to your early payment.
FAQ:
Q1: Are you a trading company or manufacturer?
A1: We are manufacture to produce plastic conveyor roller.
Q2: What is the main size of your HDPE /UHMWPE conveyor roller?
A2:φ89,φ102,φ108,φ114,φ127,φ133,φ140,φ152,φ159, The length could be customized. So please do not worry about the size.
Q3: What color of plastic conveyor rolleryou can produce?
A4: Our common colors are black and blue. we can produce other colors according to your requirement too.
Q4:Do you make a customized logo on the HDPE/UHMWPE conveyor rollers?
A4: Yes, we do. Just send your artwork for the logo. We will print the logo on the seals as your request.
