Product Details:
|
| Item：: | Black Polymer HDPE Conveyor Adjusting Rollers Friction Idler Roller | Material: | PE Virgin 100% |
|---|---|---|---|
| Color：: | Blue,Black Or Customized | Size：: | Dia: 76-194mm |
| Structure: | Ordinary Roller | Process: | Mould Pressing |
| Application: | Chemical Industry, Grain Transportation, Mining Transport, Power Plant | ||
| High Light: | Polymer Friction Idler Roller,HDPE Conveyor Adjusting Rollers,4 Inch Friction Idler Roller |
||

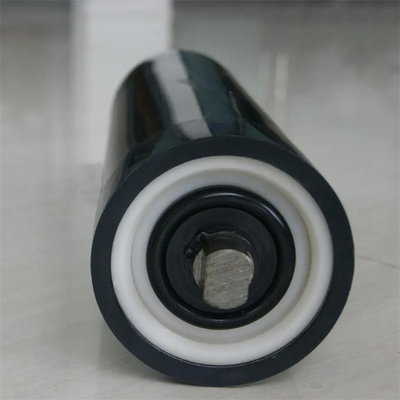

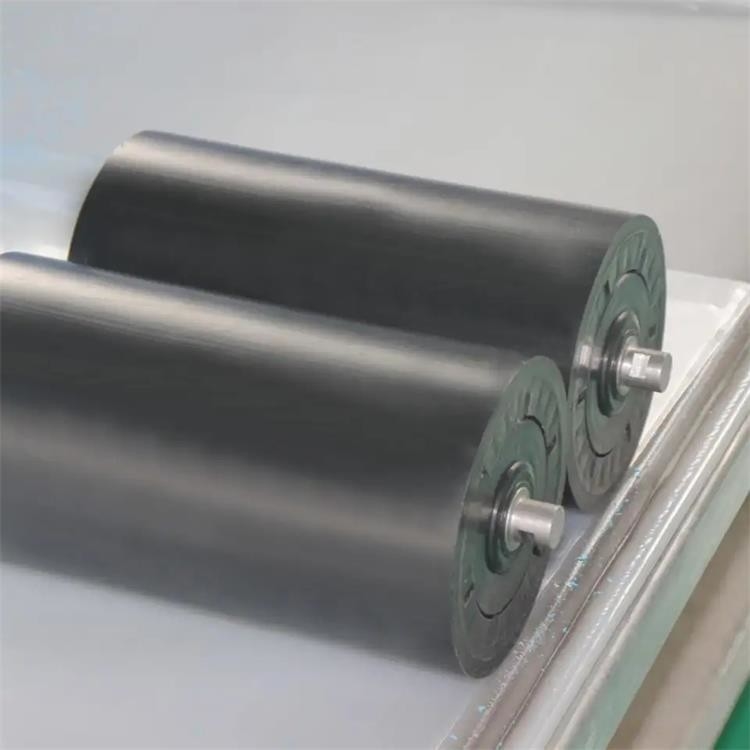

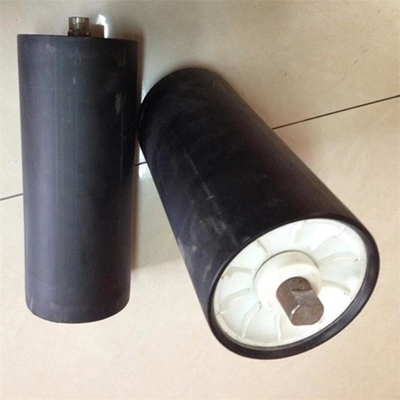

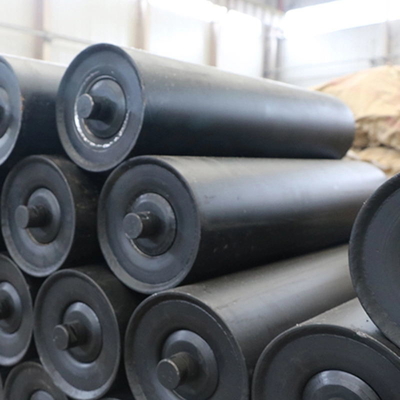

Black Polymer HDPE Conveyor Adjusting Rollers Friction Idler Roller
4 Inch Black Polymer HDPE Conveyor Adjusting Rollers Friction Idler Roller
The effectiveness of the UPE Plastic Conveyor Roller provides the solution to the environmental challenges of dust, dirt, water, low and high temperatures. Our UPE Conveyor Idler is a high-tech product, which consists of uhmwpe pipe, metal bearing, metal shaft, plastic bearing housing, sealing ring, etc. Especially for our conveyor roller, adopting the new labyrinth groove combined sealing technology, which make the waterproof and dustproof effect more remarkable.
Plastic conveyor rollers Features:
Durable for over 3 years
Withstand 30,000 hours of rotation, super long life
Better than metal rollers
Lightweight silenced rain resistance reduces belt wear
Product Specification:
UPE roller is the replacement product of metal roller, is widely used in places with extremely harsh conditions, having a high cost performance.
|
Outer Diameter D1(mm)
|
Shaft Diameter D2 (mm)
|
Customized(mm) |
Bearing Type (HRB/LYC/SKF) |
Bearing size (mm) |
| Dia76 | Dia20 |
Custom Length: 150-2000
Spindle Head Custom: Milling, Punch, Thread |
6204 | 20*47*14 |
| Dia89 | Dia20 | 6204 | 20*47*14 | |
| Dia102 | Dia20 | 6204 | 20*47*14 | |
| Dia25 | 6205 | 25*52*15 | ||
| Dia108 | Dia20 | 6304 | 25*52*15 | |
| Dia25 | 6205 | 25*52*15 | ||
| Dia114 | Dia25 | 6205 | 25*52*15 | |
| Dia127 | Dia25 | 6305 | 25*62*17 | |
| Dia30 | 6306 | 30*72*19 | ||
| Dia133 | Dia25 | 6305 | 25*62*17 | |
| Dia140 | Dia25 | 6305 | 25*62*17 | |
| Dia152 | Dia35 | 6307 | 35*80*21 | |
| Dia159 | Dia35 | 6307 | 35*80*21 |
UHMWPE conveyor belt roller has a novel structure, reliability seal, and advanced material selection. Rollers and housing are made of ultra-High Molecular Weight Polyethylene (UHMWPE) which has anti-friction self-lubrication, impact resistance, anti-adhesion, and anti-corrosion, resistant to aging, and other characteristics.
Characteristics of plastic Conveying roller:
1. High-wear resistance is seven times the wear resistance of steel and four times that of PTFE.
2. High impact resistance two times impact resistance than PC, five times than ABS.
3. Self-lubrication is the same as PTFE, better than steel and brass appended lubricating oil.
4. Anti-corrosion resistance, stable chemicals property and can endure the corrosion of all kinds of corrosive medium and organic solvent in certain rang of temperature and humidity.
5. Non-sticking the smooth surface of the product hardly affixes other material.
6. Low-temperature resistance in (-196), it still has the prolongation and high tensile strength.
7. Non-toxic and clean property.
Packaging & Shipping
Packing Details: Standard wooden package box or as per your requirements.
Delivery Details: 15-25 days according to your early payment.
FAQ:
Q1: Are you a trading company or manufacturer?
A1: We are manufacture to produce plastic conveyor roller.
Q2: What is your MOQ of plastic conveyor roller?
A2: It depends on the stock we have and the size you need.
Q3: What color of plastic conveyor rolleryou can produce?
A3: Our common colors are black and blue. we can produce other colors according to your requirement too.
Q4: Could you provide a product customization service?
A4: Yes, and it's better to get your drawing or idea of it.
