Product Details:
|
| Item：: | Impact Resistant HDPE Pipe Idler Polymer Roller Belt Conveyor Troughing Roller | Material: | PE Virgin 100% |
|---|---|---|---|
| Color：: | Blue,Black Or Customized | Size：: | Dia: 76-194mm |
| Structure: | Ordinary Roller | Process: | Mould Pressing |
| Application: | Chemical Industry, Grain Transportation, Mining Transport, Power Plant | ||
| Highlight: | mould pressing hdpe conveyor roller,dia 76mm hdpe conveyor roller,ultra high molecular polymer hdpe roller |
||
|
Outer Diameter D1(mm)
|
Shaft Diameter D2 (mm)
|
Customized(mm) |
Bearing Type (HRB/LYC/SKF) |
Bearing size (mm) |
| Dia76 | Dia20 |
Custom Length: 150-2000
Spindle Head Custom: Milling, Punch, Thread |
6204 | 20*47*14 |
| Dia89 | Dia20 | 6204 | 20*47*14 | |
| Dia102 | Dia20 | 6204 | 20*47*14 | |
| Dia25 | 6205 | 25*52*15 | ||
| Dia108 | Dia20 | 6304 | 25*52*15 | |
| Dia25 | 6205 | 25*52*15 | ||
| Dia114 | Dia25 | 6205 | 25*52*15 | |
| Dia127 | Dia25 | 6305 | 25*62*17 | |
| Dia30 | 6306 | 30*72*19 | ||
| Dia133 | Dia25 | 6305 | 25*62*17 | |
| Dia140 | Dia25 | 6305 | 25*62*17 | |
| Dia152 | Dia35 | 6307 | 35*80*21 | |
| Dia159 | Dia35 | 6307 | 35*80*21 |

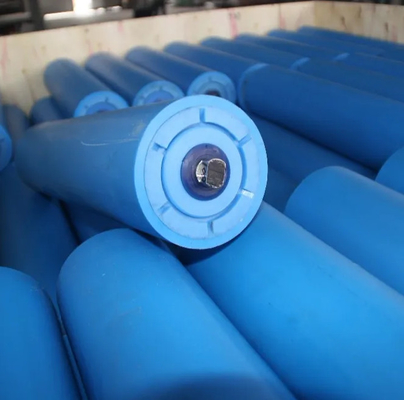

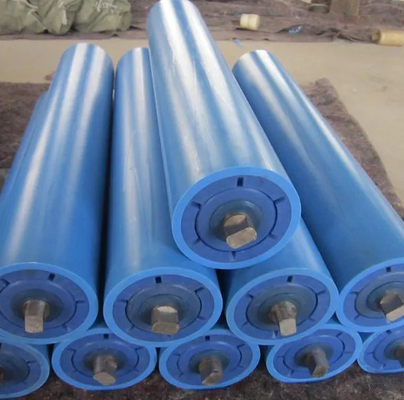

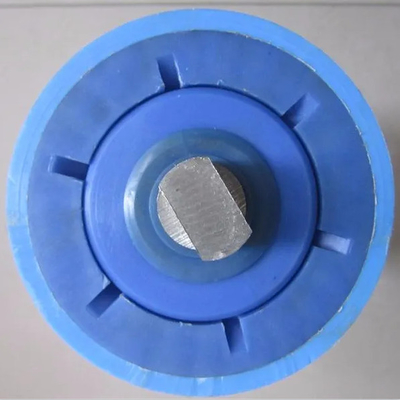

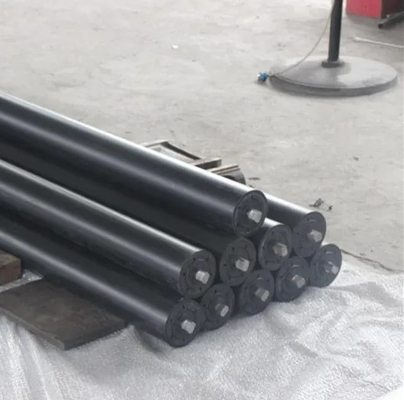

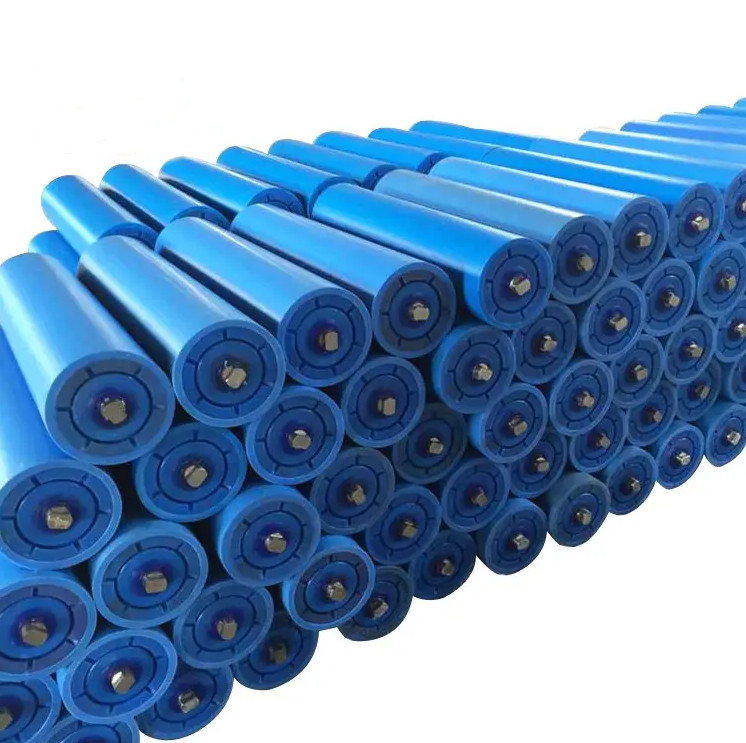

UHMWPE conveyor belt roller has a novel structure, reliability seal, and advanced material selection. Rollers and housing are made of ultra-High Molecular Weight Polyethylene (UHMWPE) which has anti-friction self-lubrication, impact resistance, anti-adhesion, and anti-corrosion, resistant to aging, and other characteristics.
1. High-wear resistance is seven times the wear resistance of steel and four times that of PTFE.
2. High impact resistance two times impact resistance than PC, five times than ABS.
3. Self-lubrication is the same as PTFE, better than steel and brass appended lubricating oil.
4. Anti-corrosion resistance, stable chemicals property and can endure the corrosion of all kinds of corrosive medium and organic solvent in certain rang of temperature and humidity.
5. Non-sticking the smooth surface of the product hardly affixes other material.
6. Low-temperature resistance in (-196), it still has the prolongation and high tensile strength.
7. Non-toxic and clean property.
RELATED PRODUCTS
CERTIFICATE
Shipping time:7-10 working days to ship after receipt your payment.
Payment Method:30% deposit in advance.70% balance before the shipment
Tangyin Taixing Engineering Plastic Co., Ltd is a professional production of engineering plastics, set production, sales, design, processing as one of the integrated enterprise.We have 20+ years of experience, covers an area of 25,000+ square meters,and has an annual output of 8,000+ tons.Mainly produce PE products such as UHMWPE board, synthetic ice rink, PE marine fender, outrigger pad, UHMWPE liner, Plastic conveyor roller, UHMWPE special-shaped parts , HDPE sheets, HDPE ground protection mat, dual color HDPE sheets and so on.
Q1:Are you a manufacturer or a trading company?
A1:We are one of the leading PE manufacturer in China for more than 20 years.
Q2:How long can I get the lastest price?
A2:We usually quote within 12hours after we get your inquiry.
Q3:What is your mainly products?
A3:UHMWPE/HDPE outrigger pads, HDPE ground protection mats, UHMWPE sheet, PE chopping board, UHMW PE belt conveyor roller, UHMWPE fender.
Q4:Do your factory inspect the finished products?
A4:Yes. Each step of products and finished products will be carried out inspection by QC department before shipping.
Q5:How can I get sample from you?
A5:Just send your requirement and we will send you the samples accordingly by DHL,UPS,TNT or others.
