Product Details:
|
| Item: | Mobile Plastic Round Corners Crane HDPE Outrigger Jack Pads | Materia: | PE Virgin 100% |
|---|---|---|---|
| Dimension: | Dia 800-1200 Mm | Thickness: | 50mm-80mm |
| Shape: | Round | Processing Service: | Cutting, Moulding, CNC |
| Usage: | Supporting Legs Of The Construction Machinery, And Play A Supporting Role | ||
| Highlight: | Crane HDPE Outrigger Jack Pads,Round outrigger pads for boom truck,Impact Resistant crane stabilizer pads |
||

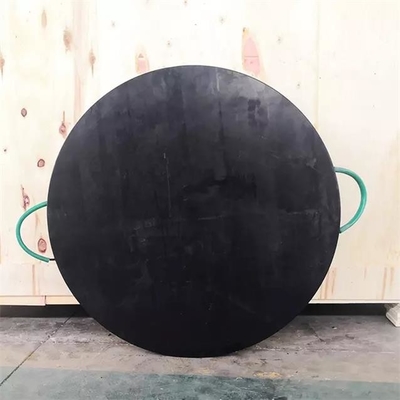

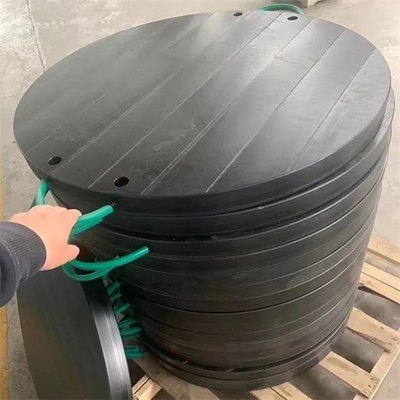

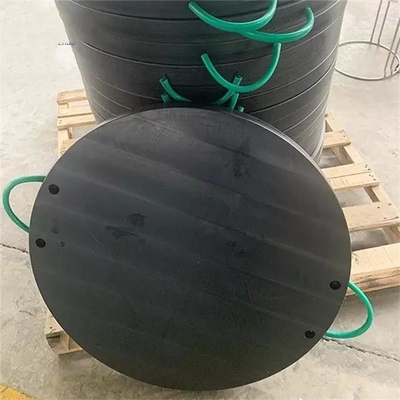

Impact Resistant Mobile Plastic Round Corners Crane HDPE Outrigger Jack Pads
Mobile Polyethylene Stabilizer Outrigger Pads, supply a range of lightweight and long-lasting spreader plates that offer
stable support when operating cranes, aerial work platforms and mobile plant. our range of outrigger pads offer protection against water, corrosion and splintering - a huge advancement over the more traditional wooden and steel alternatives
Benefits of Crane Otrigger Pads:
Product Specification:
| Size | Load Capacity | Weight |
| 800*50mm | 35Ton | 25kg |
| 800*60mm | 40 Ton | 30 kg |
| 900*50mm | 45 Ton | 30 kg |
| 900*60mm | 50 Ton | 35 kg |
| 1000*50mm | 55 Ton | 29.25kg |
| 1000*60mm | 60Ton | 40 kg |
| 1000*70mm | 75 Ton | 50.75kg |
| 1000*80mm | 80 Ton | 61.5kg |
| 1200*60mm | 90 Ton | 66.4kg |
| 1200*70mm | 110 Ton | 77.45kg |
The outrigger pad can effectively disperse the weight of the construction machinery itself and the lifting weight to the area of the outrigger pad, and the construction machinery is safe to work on the ground.
Application
PE outrigger pad is used to support heavy vehicles without warping, splintering , bending or any other damage. Especially for boom truck, Fire Trucks, Utility Trucks, Tree Trimmers, Recreation Vehicles (RV’s) Concrete Pumps, Cranes and Any Type of Aerial Equipment.
Company Profile :
Tangyin Taixing Engineering Plastic Co., Ltd. is located in Tengfei road, Yigou town, Tangyin county, Henan. We have gained many professional certificates with 20 years of experience.
We are always dedicated to Providing high-performance goods and Producing new products for our customers. Mainly produce and sell UHMWPE sheet, UHMWPE Liner Sheet,Conveyor Roller ,Cutting board, Outrigger pad, ground mat. Our products sell well in domestic and international markets, such as the United States,Australia, Singapore, Pakistan, Thailand,South America etc, and are favorably appraised by clients.
Contact Person: Mr. zhu
Tel: +86 15515053690
