600*600mm Anti Impact Polyethylene Plastic Outrigger Pads For Crane Foot Support

I'm Online Chat Now

600*600mm Anti Impact Polyethylene Plastic Outrigger Pads For Crane Foot Support

600*600mm Anti Impact Polyethylene Plastic Outrigger Pads For Crane Foot Support
600*600mm Anti Impact Polyethylene Plastic Outrigger Pads For Crane Foot Support 600*600mm Anti Impact Polyethylene Plastic Outrigger Pads For Crane Foot Support 600*600mm Anti Impact Polyethylene Plastic Outrigger Pads For Crane Foot Support 600*600mm Anti Impact Polyethylene Plastic Outrigger Pads For Crane Foot Support

Large Image :  600*600mm Anti Impact Polyethylene Plastic Outrigger Pads For Crane Foot Support

Product Details:
Place of Origin: China
Certification: ISO9001
Model Number: PE Outrigger Pad
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 50000 /Pieces per Month

600*600mm Anti Impact Polyethylene Plastic Outrigger Pads For Crane Foot Support

Description
Item: Polyethylene Plastic Outrigger Pads For Crane Foot Support Material: PE Virgin 100%
Color: Yellow,Black,Customized Standard Size: 600*600*50 Mm
Surface: Anti-Slip, Smooth Loading Weight: 20-200 Tonnes
Usage: Crane, Pump
Highlight:

PE Outrigger Pad

,

Polyethylene Plastic Outrigger Pads

,

600mm Plastic Outrigger Pads

Recorded Specification

Listing 37734221 - 600 x 600 x 50 mm crane foot pad

This listing is one size, not a range: 600 x 600 x 50 mm, recorded as the standard size, pressed from 100% virgin PE. The loading weight is recorded as a band of 20-200 Tonnes for the model line. Those two statements sit at different levels and are treated separately below, because a band printed next to a single size is the most common source of mis-specified pad orders.

AttributeRecorded value
ItemPolyethylene Plastic Outrigger Pads For Crane Foot Support
Model NumberPE Outrigger Pad
MaterialPE Virgin 100%
Standard size600 x 600 x 50 mm
SurfaceAnti-Slip, Smooth
Loading weight20-200 Tonnes
ColourYellow, Black, Customized
UsageCrane, Pump
CertificationISO9001
Place of originChina
Minimum order quantity100 pieces
PriceNegotiable
Payment termsT/T, Western Union
Supply ability50000 pieces per month
Delivery time15-20 days after deposit received
PackagingWooden crate or pallet

Configuration recorded for this size

ElementRecordedHow it is read on this page
Footprint600 x 600 mm0.36 m2 of bearing area, fixed by the standard size.
Thickness50 mmThe section depth that sets deflection under a foot load, fixed by the standard size.
Face optionsAnti-slip and smoothTwo recorded surface states; the face is selected per order rather than both being applied to one pad.
Loading band20-200 TonnesThe range quoted for the model line; the figure that applies to one 600 x 600 x 50 mm pad is confirmed at enquiry.
Handling and joiningHandi-hooks, U-clipAccessories named in the source text for moving pads and locking adjacent mats to one another.

Source-data note: the attribute record fixes the standard size at 600 x 600 x 50 mm while the description's size table lists 600 x 600 x 60 mm at 25 Ton, and the recorded loading weight for the model line is a much wider 20-200 Tonnes band that cannot belong to a single 50 mm pad. The attribute values govern here; the 60 mm row is treated as a different configuration in the source table and is not used as the capacity of this size.

Thickness, Face Selection and Pad Handling

What a 50 mm pad does under a crane foot

A 600 x 600 x 50 mm pad has a footprint of 0.36 m2 and a section depth of 50 mm. Those two numbers decide almost everything about how it behaves. The footprint fixes the bearing pressure on the ground for a given leg load. The thickness fixes how far the load can travel outward from the foot before it reaches the ground, and how much the pad deflects while doing it. A pad that is wide but thin bends in the middle; a pad that is thick but narrow passes load almost straight down. At 600 x 600 x 50 mm the proportion is balanced enough that the pad acts as a distributing plate rather than a bearing block.

The material is recorded as PE Virgin 100%, and the source text describes the pad as having higher strength and rigidity so that deformation under load is reduced and the support given to the machine is more stable. That is the correct way to read a pad in this application: the value is stability, not just protection of the surface underneath. A pad that deforms visibly lets the machine settle, and a machine that settles during a lift changes the load geometry.

Two recorded faces, one pad

The surface is recorded as both anti-slip and smooth, which describes two different face states offered for the same size rather than a pad with a different finish on each side. On site the choice follows the ground. An anti-slip face against a concrete slab or a steel deck resists the pad being pushed out when the leg load arrives at a slight angle. A smooth face is chosen where the pad has to slide into position under a leg that is already down, or where the pad sits on a surface that would be marked by a textured face.

Whichever face is used downward, the upward face carries the steel foot. That contact is the one that must not slip when the crane slews, so a smooth-face pad should only be used where the foot itself is positively located by the outrigger float rather than resting free on the pad.

Handling and joining with Handi-hooks and U-clips

The source text names Handi-hooks for handling and U-clips for locking mats together. Both are accessories to the pad rather than features of it, and both change how a site uses the pads. Handi-hooks let a pad be carried and positioned without being dragged, which keeps the bearing face free of the grit that dragging picks up. U-clips join adjacent pads edge to edge, which turns several 600 x 600 mm pads into one continuous bearing surface under a wide outrigger beam or a crawler track.

Joining pads with U-clips is a load-spreading measure, not a strength measure. Two pads clipped together still each carry their own share of the load, and the clip only stops them separating and sliding apart. The joint line between them remains a line where the ground sees a step change in pressure.

600*600mm Anti Impact Polyethylene Plastic Outrigger Pads For Crane Foot Support
600*600mm Anti Impact Polyethylene Plastic Outrigger Pads For Crane Foot Support

Edge condition and thickness consistency

The pad is a solid moulded section, square edged, with no metal insert and no bonded facing. Solid section is why the pad can be reused repeatedly in the recorded application: there is no interface to delaminate and no core to take up water. Thickness consistency across the 600 x 600 mm face is what makes the bearing pressure even, and it is the property most worth checking on delivery, because a pad that is thick at one corner loads that corner of the slab first.

600*600mm Anti Impact Polyethylene Plastic Outrigger Pads For Crane Foot Support
600*600mm Anti Impact Polyethylene Plastic Outrigger Pads For Crane Foot Support

Load Rating Interpretation and Site Limits

Reading a 20-200 Tonne band correctly

A loading weight of 20-200 Tonnes is recorded for this model line, and it should be read as the span covered by the pad family rather than as the capacity of a 600 x 600 x 50 mm pad. The two ends of that band do not describe the same object: the lower end is reached by a small pad and the upper end by a much larger one. A buyer specifying one 600 x 600 x 50 mm pad should state the leg load, the ground condition and the required bearing pressure, and let the figure be confirmed against that, rather than reading 200 Tonnes off the attribute record and applying it to this size.

What the pad does not do

The pad spreads load; it does not create bearing capacity in the ground. On a slab, the spread load is carried by the slab and then by whatever is under it. On fill, the pad presses into the surface until the contact area grows enough to carry the load, and that settlement is what the pad cannot prevent. A 600 x 600 mm pad on soft ground behaves as a 600 x 600 mm patch of stiffened ground, and the machine will still settle if the ground beneath is inadequate.

Nor does the pad level a machine. On a slope, or on ground that is uneven under the footprint, the pad tilts with the surface and the load concentrates on one edge. The recorded application - crane and pump outriggers - assumes the pad is placed on ground that has been prepared for the outrigger, not on ground chosen because a pad was available.

Installation sequence

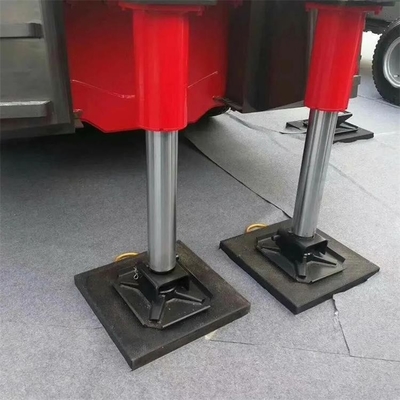

Prepare the ground, then place the pad, then land the foot centred on the pad. Centring matters because an offset foot uses only part of the footprint on the loaded side and the bearing pressure under that edge is far above the nominal figure for a 600 x 600 mm pad. After the foot is down, check that the pad has not tilted and that no gap has opened between pad and ground on the loaded side.

Where two pads are joined with U-clips, set the joint so it does not sit directly under the centre of the foot. A joint under the foot means the load crosses an interface at the point of highest pressure, and that is where the two pads will move relative to one another.

Checks before the lift

Confirm the pad size and face against the ground condition. Confirm that the pad is flat and not dished from previous use. Confirm that any U-clips are engaged on both pads and not resting loose. Confirm that the pad is not sitting on debris, since a stone under a pad is a point load into the slab in exactly the place the pad was meant to protect.

Manufacturer and Supply Position

Moulding, finishing and the terms behind one size

Tangyin Taixing Engineering Plastics Co., Ltd. manufactures this pad. The company is an engineering plastics manufacturer combining production, sales, design and processing, with more than 20 years of experience, a plant area of more than 25,000 square meters and an annual output of more than 8,000 tons. The site also records an export-management entity, Beijing Silk Road Enterprise Management Services Co., operating the same engineering-plastics business; the two recorded names refer to one manufacturing and export organisation.

A 600 x 600 x 50 mm pad is produced on the moulding press machine, which forms the pad to thickness with its face finish in a single pressing rather than by bonding layers. Where a customer needs a trimmed outline, a cut feature or a special-shaped pad, the CNC precise finishing machines, carving machines and CNC machining centres take over, with AutoCAD based design support converting a drawing into a production instruction. The in-house laboratory's universal mechanical tester and abrasion tester are the instruments behind the material's mechanical and wear behaviour.

The recorded product range includes outrigger pad, UHMWPE board, UHMWPE liner, HDPE sheet, PE marine fender, plastic conveyor roller, UHMWPE special-shaped parts, HDPE ground protection mat, dual colour HDPE sheet and synthetic ice rink. Standard polyethylene sheet formats stated by the company are 1250 x 3100 mm, 1220 x 2440 mm and 2100 x 3100 mm, from 6 mm to 200 mm thick, with custom sizes accepted - the route by which a size outside the standard 600 x 600 x 50 mm can still be quoted.

Recorded commercial terms

TermRecorded value and what it means here
Minimum order quantity100 pieces of one size. Because this listing is a single 600 x 600 x 50 mm size, the minimum is not split across a size mix; it is 100 pads of the same specification.
Supply ability50000 pieces per month, so a 100-piece order is a small batch and pressing time is not the constraint.
Delivery time15-20 days after deposit received, which includes pressing, trimming and crating.

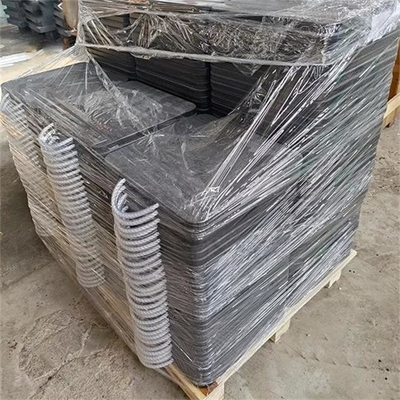

PackagingWooden crate or pallet, keeping the bearing faces from rubbing against each other.
Payment termsT/T, Western Union.
Price basisNegotiable, quoted against surface state, colour and quantity.

ISO9001 is recorded as a quality management system covering the manufacture of polyethylene sheet and machined plastic products. It is a system certification and not a product-by-product approval or a material test report, and no certificate number, issuing body or further scope is recorded for this listing.

Buyer FAQ

Load band, face choice, accessories and order terms

Does the 20-200 Tonnes loading weight apply to one 600 x 600 x 50 mm PE Outrigger Pad from Tangyin Taixing Engineering Plastics Co., Ltd.?

No. That figure is recorded as the loading band of the model line, while the standard size of a PE Outrigger Pad from Tangyin Taixing Engineering Plastics Co., Ltd. on this page is 600 x 600 x 50 mm. Reading 200 Tonnes as the capacity of this one size is exactly the mis-specification the band invites, because the upper end of the band belongs to much larger pads in the same family.

The correct route is to state the leg load and the ground condition, and confirm the pad against those. The footprint here is 0.36 m2 at 50 mm thickness, and those two recorded values are what a bearing calculation can actually use.

Should the anti-slip face or the smooth face of a PE Outrigger Pad from Tangyin Taixing Engineering Plastics Co., Ltd. go against the ground?

Anti-slip goes down where the pad must not move: on a concrete slab, a steel deck or a paved surface, the textured face resists the pad being pushed out as the leg load arrives. A PE Outrigger Pad from Tangyin Taixing Engineering Plastics Co., Ltd. with a smooth face down is chosen where the pad has to slide into place under a leg that is already down, or where the surface underneath must not be marked.

The upper face always contacts the steel foot. That contact is what stops the machine skating when the crane slews, so a smooth-face pad should only be used where the outrigger float locates the foot positively rather than letting it rest free on the pad.

What does 50 mm thickness do for a PE Outrigger Pad from Tangyin Taixing Engineering Plastics Co., Ltd. compared with a thinner pad of the same footprint?

Thickness controls how much load reaches the outer edge of the footprint and how far the pad deflects while doing it. At 50 mm a PE Outrigger Pad from Tangyin Taixing Engineering Plastics Co., Ltd. has enough section that the load spreads across the 600 x 600 mm face instead of passing straight down under the foot, which is what keeps the pressure on the slab even.

It also controls stability. A pad that deflects visibly lets the machine settle during the lift, and the source text for this product makes the same point about reduced deformation giving a more stable supporting force. Thickness consistency across the face matters as much as the nominal figure.

How are Handi-hooks and U-clips used with a PE Outrigger Pad from Tangyin Taixing Engineering Plastics Co., Ltd.?

Handi-hooks are the handling accessory named in the source text for moving pads; using them keeps a PE Outrigger Pad from Tangyin Taixing Engineering Plastics Co., Ltd. from being dragged, which is what fills the bearing face with grit and wears the edge out of square. U-clips join adjacent pads edge to edge so several pads act as one bearing surface under a wide beam or a track.

The clip does not make the joint stronger than the pads. It only stops them separating, and the joint line stays a step change in pressure on the ground. That is why the joint should be kept out from under the centre of the foot when pads are joined.

Why is the minimum order for a PE Outrigger Pad from Tangyin Taixing Engineering Plastics Co., Ltd. 100 pieces of a single size?

100 pieces is the recorded minimum order quantity, and because this listing carries one standard size, a PE Outrigger Pad from Tangyin Taixing Engineering Plastics Co., Ltd. order is 100 pads of 600 x 600 x 50 mm rather than a mixed size pack. For a single machine that is far more than four legs need, so the balance becomes site stock or spares across a fleet.

Against a recorded supply ability of 50000 pieces per month, 100 pieces is a small batch. The practical consequence is that the order is cheap to repeat, and the sensible plan is to standardise on the one size so that every pad on site is interchangeable.

What is the recorded sample arrangement for a PE Outrigger Pad from Tangyin Taixing Engineering Plastics Co., Ltd., and what does it not cover?

The source text records that small samples not larger than 150 x 150 mm can be sent free of charge with freight collect. A PE Outrigger Pad from Tangyin Taixing Engineering Plastics Co., Ltd. at its standard 600 x 600 x 50 mm size is therefore not the free sample described; the free sample is a small piece of the same material.

That distinction matters for approval. A small coupon confirms material colour and face texture, but it cannot show how a 600 x 600 mm pad behaves under a foot load. Where behaviour matters, approval should be based on the recorded specification and a production sample quoted separately.

How should the 15-20 day delivery for a PE Outrigger Pad from Tangyin Taixing Engineering Plastics Co., Ltd. be planned when the description mentions about 7 days?

The attribute record gives 15-20 days after deposit received, and that is the figure used for planning here; the shorter figure in the description is a general statement from the source text that does not distinguish stock from production. A PE Outrigger Pad from Tangyin Taixing Engineering Plastics Co., Ltd. in a customised colour is a production item and should be planned against the longer window.

The window starts at deposit, so the specification should be closed first: size is fixed at 600 x 600 x 50 mm, while face state and colour are the two choices that must be confirmed before the clock starts.

What does ISO9001 cover on a PE Outrigger Pad order from Tangyin Taixing Engineering Plastics Co., Ltd.?

ISO9001 is recorded for this listing and describes a quality management system covering the manufacture of polyethylene sheet and machined plastic products. On a PE Outrigger Pad from Tangyin Taixing Engineering Plastics Co., Ltd. it is a system certification, not a product approval, and it is not a material test report; no certificate number, issuing body or wider scope is recorded.

Where the source text describes keeping a reference sample marked with the customer name so that mass production follows it, that is a production control practice rather than a certified test. A buyer who needs a load test against a named standard must raise it separately at enquiry stage.

Receiving Checklist

Four checks on a single-size pad order

  1. 1.Verify that Tangyin Taixing Engineering Plastics Co., Ltd. and the model string PE Outrigger Pad appear in the same form on the quotation, packing list, pad marking and purchase order. A delivery carrying a shortened brand or a different model string cannot be checked against the 600 x 600 x 50 mm order, and the pads should be held rather than issued to site.
  2. 2.Measure each pad at 600 x 600 mm and 50 mm thick, at the centre and at all four corners. A PE Outrigger Pad from Tangyin Taixing Engineering Plastics Co., Ltd. that is thick at one corner will load that corner of the slab first, which is the opposite of the even spread the footprint is meant to give.
  3. 3.Confirm which face state was supplied and that the whole batch matches the order, whether anti-slip or smooth. A PE Outrigger Pad from Tangyin Taixing Engineering Plastics Co., Ltd. delivered with a smooth face where an anti-slip face was ordered will slide out from under a leg load on a slab, and the error cannot be corrected on site.
  4. 4.Check colour against the recorded Yellow, Black or Customized selection and confirm that any Handi-hooks or U-clips ordered arrive in the quantity on the packing list. A PE Outrigger Pad from Tangyin Taixing Engineering Plastics Co., Ltd. delivered without the clips cannot be joined into a continuous bearing surface, and pads held together by improvisation are the ones that separate under load.
