Product Details:
|
| Item: | Durable HDPE Composite Truck Mounted Cranes Presssure Resistant Outrigger Pads | Material: | PE Virgin 100% |
|---|---|---|---|
| Color: | Yellow,Black,Customized | Size: | 400*400*40 Mm,500*500*50 Mm,600*600*60 Mm |
| Tensile Strength: | 81~130MPa | Surface: | Anti-Slip, Smooth |
| Application: | Crane, Pump | ||
| Highlight: | PE Outrigger Pads,Mobile Crane HDPE Outrigger Pads,HDPE Outrigger Pads Platform |
||

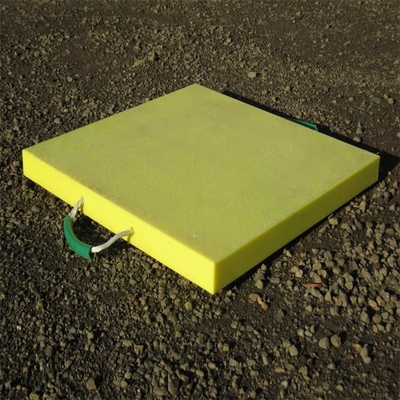

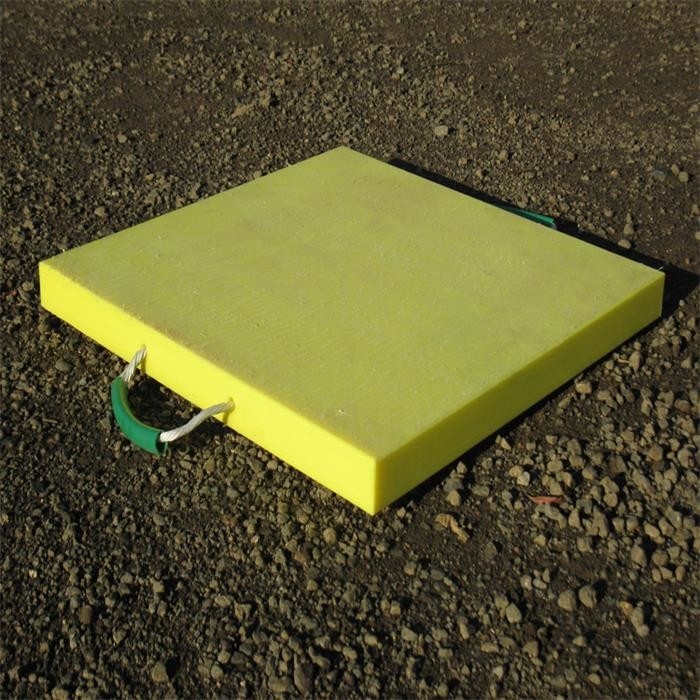

Mobile Crane Truck Stabilizer Leg HDPE Outrigger Pads Platform with Handle
Crane outrigger pads are made from a high-quality polyethylene. This means they will not splinter, crack, are non-conductive and will not absorb water. They are easy to install and provide a safe working environment for heavy equipment with outrigger arms.
Benefits of Crane Otrigger Pads:
Product Specification:
| Size | Load Capacity | Load Spread Area |
| 300*300*30mm | 5 Ton | 0.09 m² |
| 400*400*40mm | 10 Ton | 0.16 m² |
| 500*500*50mm | 18 Ton | 0.25 m² |
| 600*600*60mm | 25 Ton | 0.36 m² |
| 800*800*80mm | 35 Ton | 0.64 m² |
| 1000*1000*100mm | 80 Ton | 1.00 m² |
| 1200*1200*100mm | 160 Ton | 1.44 m² |
| 1500*1500*100mm | 200 Ton | 2.25m² |

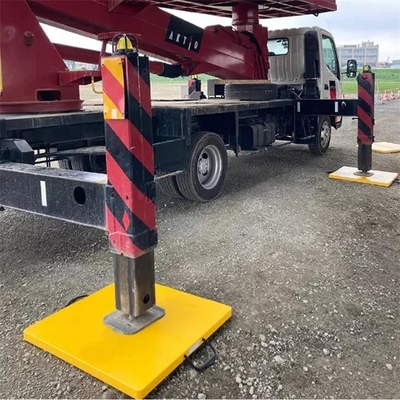

The outrigger pad is a safety tool that can be used with any device that has outriggers, lower jacks or stabilizers. When a piece of equipment (such as a crane) lifts loads or people at high places, stability is essential. The outrigger pads have different lengths, widths, thicknesses and shapes.
PE Crane Outrigger Pads Application:
PE outrigger pads are widely used in various industries and applications, such as mobile cranes, aerial lifts, digger derricks, concrete pumpers, boom trucks, and so on. They can improve the stability and safety of the vehicles and cranes by distributing the load evenly over a large area and preventing sinking or sliding. They can also protect the ground from damage and reduce the environmental impact.
FAQ :
Q1: Are you a manufacturer or a trading company?
A1: We are one of the leading PE manufacturer in China for more than 20 years.
Q2: How can I get samples for Plastic Jack Pad ?
A2: Normally small samples (sizes not larger than 150*150mm) could be sent for free ,only freight collect. For bigger sizes.
Q3: How can you guarantee the quality of mass production is same with the sample outrigger pad sent to me before?
A3: Our warehouse staff will leave another same sample in our company, with your company name marked on it, which our production will be based on.
Q4: What is your delivery time for the outrigger pad?
A4: It depends on the volume, usually it is about 7 days.
