Durable HDPE Composite Truck Mounted Cranes Pressure Resistant Outrigger Pads

Durable HDPE Composite Truck Mounted Cranes Pressure Resistant Outrigger Pads
Durable HDPE Composite Truck Mounted Cranes Pressure Resistant Outrigger Pads Durable HDPE Composite Truck Mounted Cranes Pressure Resistant Outrigger Pads Durable HDPE Composite Truck Mounted Cranes Pressure Resistant Outrigger Pads Durable HDPE Composite Truck Mounted Cranes Pressure Resistant Outrigger Pads

Large Image :  Durable HDPE Composite Truck Mounted Cranes Pressure Resistant Outrigger Pads

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: PE Outrigger Pad
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 50000 /Pieces per Month

Durable HDPE Composite Truck Mounted Cranes Pressure Resistant Outrigger Pads

Description
Item: Durable HDPE Composite Truck Mounted Cranes Presssure Resistant Outrigger Pads Material: PE Virgin 100%
Color: Yellow,Black,Customized Size: 400*400*40 Mm,500*500*50 Mm,600*600*60 Mm
Thickness: 30-100 Mm Tensile Strength: 81~130MPa
Processing Service: Cutting, Moulding, CNC
High Light:

Durable PE Outrigger Pad

,

HDPE crane outrigger pads

,

Pressure Resistant Outrigger Pads

Durable HDPE Composite Truck Mounted Cranes Presssure Resistant Outrigger Pads


PE crane leg pads plastic crane mats outrigger stabilizer pad are manufactured using engineered HDPE plastic and come with industry leading features like safety texturing, radius edges and corners and safety handles. Outrigger Pads are also corrosion, moisture and chemical resistant, making them easy to clean and maintain.

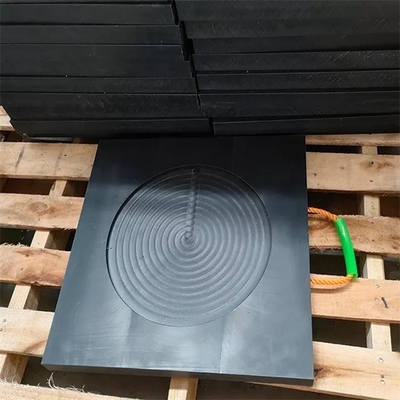

Durable HDPE Composite Truck Mounted Cranes Pressure Resistant Outrigger Pads 0

PE Otrigger Pads Feature:

  • Work in sub zero temperatures.
  • Easy to mount, replace.
  • Reduced downtime.
  • Lower maintenance costs.
  • Durable & Long Lasting.
  • Cost Efficient compared to Steel or Aluminu
  • Safer to use in the field compared to other wood based pads.



Product Specification:




Size Load Capacity Load Spread Area
300*300*30mm 5 Ton 0.09 m²
400*400*40mm 10 Ton 0.16 m²
500*500*50mm 18 Ton 0.25 m²
600*600*60mm 25 Ton 0.36 m²
800*800*80mm 35 Ton 0.64 m²
1000*1000*100mm 80 Ton 1.00 m²
1200*1200*100mm 160 Ton 1.44 m²
1500*1500*100mm 200 Ton 2.25m²

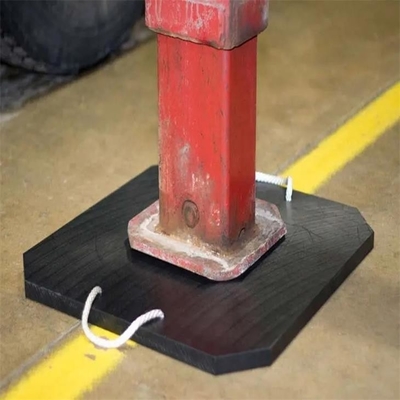

 Durable HDPE Composite Truck Mounted Cranes Pressure Resistant Outrigger Pads 1


The outrigger block is primarily an outrigger used to support large machines. It is used to distribute the weight of large aerial equipment such as cranes, concrete pumps, multi-purpose trucks, fire engines, tree shears, etc.Leg pads reduce the chance that the legs will pass through soil, asphalt, or even concrete due to the weight of the support.

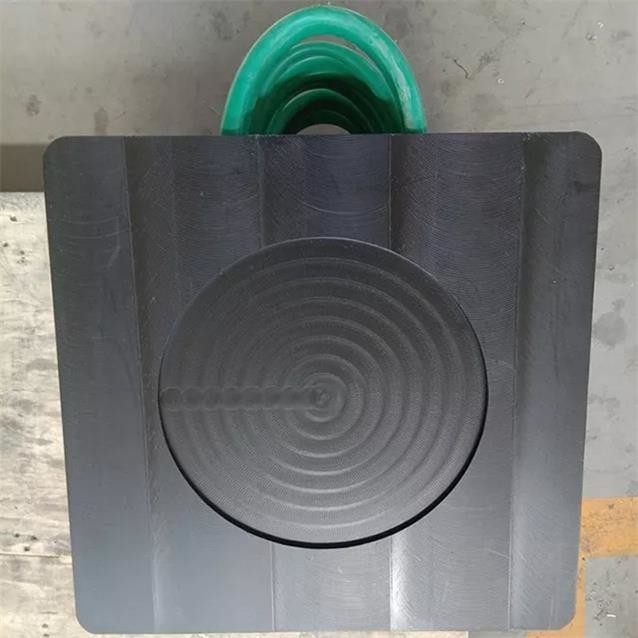

Durable HDPE Composite Truck Mounted Cranes Pressure Resistant Outrigger Pads 2



Plastic Outrigger Pads Application:


PE outrigger pads are widely used in various industries and applications, such as mobile cranes, aerial lifts, digger derricks, concrete pumpers, boom trucks, and so on. They can improve the stability and safety of the vehicles and cranes by distributing the load evenly over a large area and preventing sinking or sliding. They can also protect the ground from damage and reduce the environmental impact.

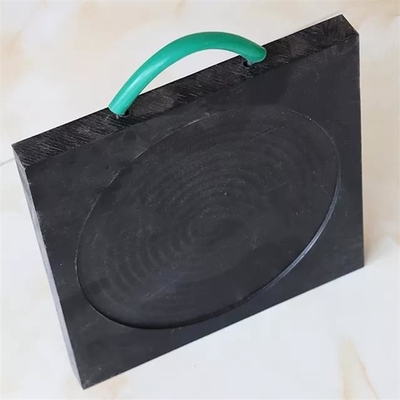

Durable HDPE Composite Truck Mounted Cranes Pressure Resistant Outrigger Pads 3


FAQ :


Q1: Are you a manufacturer or a trading company?

A1: We are one of the leading PE manufacturer in China for more than 20 years.



Q2: How can I get samples for HDPE Jack Pad ?

A2: Normally small samples (sizes not larger than 150*150mm) could be sent for free ,only freight collect. For bigger sizes.



Q3: How can you guarantee the quality of mass production is same with the sample outrigger pad sent to me before?
A3: Our warehouse staff will leave another same sample in our company, with your company name marked on it, which our production will be based on.


Q4: What is your delivery time for the outrigger pad?
A4: It depends on the volume, usually it is about 7 days.
