Product Details:
|
Item: | HDPE Safety Outrigger Pad Area Stabilizer Leg Pads Crane Foot Pads | Material: | PE Virgin 100% |
---|---|---|---|
Color: | Yellow,Black,Customized | Size: | 400*400*40 Mm,500*500*50 Mm,600*600*60 Mm |
Thickness: | 30-100 Mm | Tensile Strength: | 81~130MPa |
Surface: | Anti-Slip, Smooth | ||
High Light: | PE Stabilizer Leg Pads,500x500mm Crane Foot Pads,500mm outrigger foot pads |
HDPE Safety Outrigger Pad Area Stabilizer Leg Pads Crane Foot Pads
500x500mm HDPE Safety Outrigger Pad Area Stabilizer Leg Pads Crane Foot Pads
Crane outrigger pads are made from a high-quality polyethylene. This means they will not splinter, crack, are non-conductive and will not absorb water. They are easy to install and provide a safe working environment for heavy equipment with outrigger arms.
Benefits of Crane Otrigger Pads:
* Light weight, can be moved optionally
* Easy to be recycled, environment friendly
* Protect surface(tire for example) would be less injured
* Easy to handle with "Handi-hooks", lock mats together with "U-clip"
* Long duration of life, reuse hundreds of times.
Product Specification:
Size | Load Capacity | Load Spread Area |
300*300*30mm | 5 Ton | 0.09 m² |
400*400*40mm | 10 Ton | 0.16 m² |
500*500*50mm | 18 Ton | 0.25 m² |
600*600*60mm | 25 Ton | 0.36 m² |
800*800*80mm | 35 Ton | 0.64 m² |
1000*1000*100mm | 80 Ton | 1.00 m² |
1200*1200*100mm | 160 Ton | 1.44 m² |
1500*1500*100mm | 200 Ton | 2.25m² |

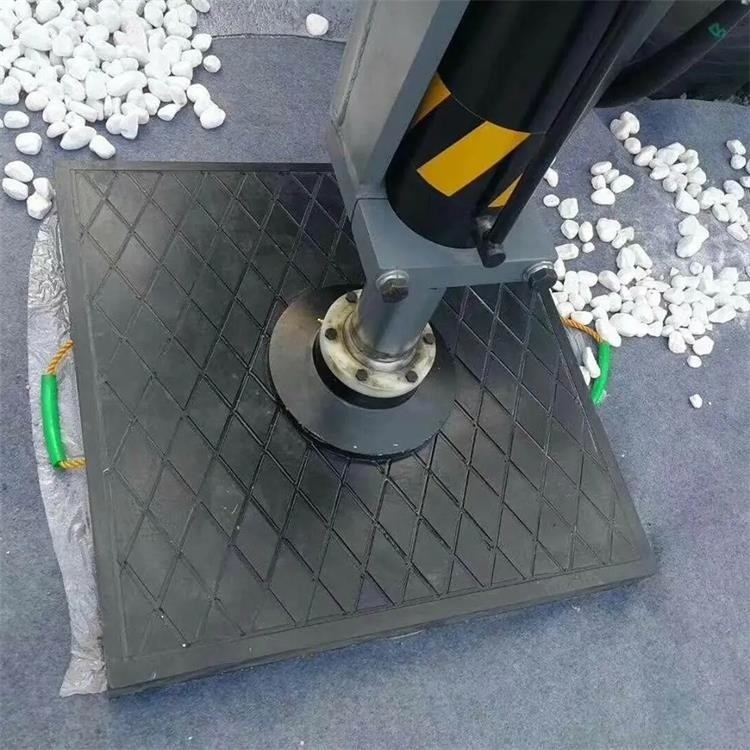

outrigger pads are widely used in various industries and applications, such as mobile cranes, aerial lifts, digger derricks, concrete pumpers, boom trucks, and so on. They can improve the stability and safety of the vehicles and cranes by distributing the load evenly over a large area and preventing sinking or sliding. They can also protect the ground from damage and reduce the environmental impact.
PE Crane Outrigger Pads Features:
* More Stable
UHMW outrigger pads is made by moulding press process craft. the thickness can be customized and as thick as 200mm. It is super durable, it will not change the shape and thickness even after decades. The surface remain flat under extrem high loading capacity.
* Long lasting service life
One outrigger pad can be used forever! Because of the excellent wear resistance and strong structure, our pads will not warping, splinter, bend or any other damage.
* Waterproof, Anti chemical
UHMW polyethylene water absorption rate less than 0.01%. It can be used in any weather, due to its chemical resistance features, it also can be used in critical working site.
FAQ :
1.Q: Are you trading company or manufacturer ?
A: We are an industry and trade integrated company, we have our own factory and foreign trade sales team, so, we can process the drawings you provide, to provide you with a competitive price.
2.Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4.Q: Is there any warranty on the quality of your products ?
A: Please don't worry about that, we have 20 years of experience in producing PE products, our products widely used in Europe, the America and other countries.
5.Q:What about the after-sales service?
A: We have years of guaranteed life, if our products have any problems, you can ask the feedback of our product termly, we will fix it for you.
