Portable Temporary HDPE Round Outrigger Pads Mobile Truck Plastic Foot Pads

Certification
China Tangyin Taixing Engineering Plastics Co., Ltd. certification
China Tangyin Taixing Engineering Plastics Co., Ltd. certification
I'm Online Chat Now

Portable Temporary HDPE Round Outrigger Pads Mobile Truck Plastic Foot Pads

Portable Temporary HDPE Round Outrigger Pads Mobile Truck Plastic Foot Pads
Portable Temporary HDPE Round Outrigger Pads Mobile Truck Plastic Foot Pads Portable Temporary HDPE Round Outrigger Pads Mobile Truck Plastic Foot Pads Portable Temporary HDPE Round Outrigger Pads Mobile Truck Plastic Foot Pads Portable Temporary HDPE Round Outrigger Pads Mobile Truck Plastic Foot Pads

Large Image :  Portable Temporary HDPE Round Outrigger Pads Mobile Truck Plastic Foot Pads

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: UHWM PE Round Outrigger Pad
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 50000 /Pieces per Month

Portable Temporary HDPE Round Outrigger Pads Mobile Truck Plastic Foot Pads

Description
Item:: UHWM PE Round Outrigger Pad Mobile Truck Plastic Foot Pads Material:: PE Virgin 100%
Dimension:: Dia 800-1200 Mm Thickness: 50mm-80mm
Shape:: Round Processing Service::: Cutting, Moulding, CNC
Usage: Supporting Legs Of The Construction Machinery, And Play A Supporting Role
High Light:

UHWM PE Round Outrigger Pads

,

HDPE Round Outrigger Pads

,

Portable Temporary round crane pad

Portable Temporary HDPE Round Outrigger Pad Mobile Truck Plastic Foot Pads

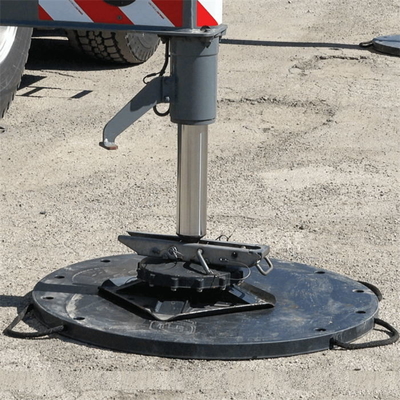

The outrigger block is primarily an outrigger used to support large machines. It is used to distribute the weight of large aerial equipment such as cranes, concrete pumps, multi-purpose trucks, fire engines, tree shears, etc.
Leg pads reduce the chance that the legs will pass through soil, asphalt, or even concrete due to the weight of the support.





Portable Temporary HDPE Round Outrigger Pads Mobile Truck Plastic Foot Pads 0



Benefits of Crane Otrigger Pads :



  • Work in sub zero temperatures.
  • Easy to mount, replace.
  • Reduced downtime.
  • Lower maintenance costs.
  • Durable & Long Lasting.
  • Cost Efficient compared to Steel or Aluminu
  • Safer to use in the field compared to other wood based pads.



Product Specification:




Size Load Capacity Weight
800*50mm 35Ton 25kg
800*60mm 40 Ton 30 kg
900*50mm 45 Ton 30 kg
900*60mm 50 Ton 35 kg
1000*50mm 55 Ton 29.25kg
1000*60mm 60Ton 40 kg
1000*70mm 75 Ton 50.75kg
1000*80mm 80 Ton 61.5kg
1200*60mm 90 Ton 66.4kg
1200*70mm 110 Ton 77.45kg



Portable Temporary HDPE Round Outrigger Pads Mobile Truck Plastic Foot Pads 1

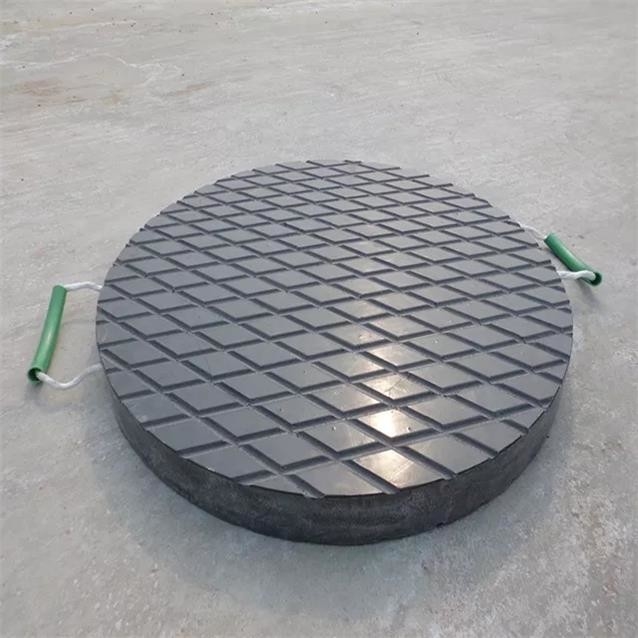

When it comes to shapes, there are pros and cons depending on your choice. For example, because large square leg pads have a larger surface area, they are not as easy to move on the job site as round leg pads, which can usually be rolled into place by one person, but have a smaller surface area.



Portable Temporary HDPE Round Outrigger Pads Mobile Truck Plastic Foot Pads 2



Why Choose PE Outrigger Pads:


They provide effective support to machinery and vehicles that use stabilisers or outrigger feet on terrain where load bearing and spreading capacity is an issue, such as soft ground and sensitive flooring or terrain.

Without their use, outriggers and stabilisers can potentially puncture the ground or damage paved surfaces, causing a serious accident if the equipment topples over and considerable cost to recover.



Portable Temporary HDPE Round Outrigger Pads Mobile Truck Plastic Foot Pads 3

FAQ:




Q1: Are you a manufacturer or a trading company?

A1: We are one of the leading PE manufacturer in China for more than 20 years.



Q2: How can I get samples for PE Jack Pad ?

A2: Normally small samples (sizes not larger than 150*150mm) could be sent for free ,only freight collect. For bigger sizes.



Q3: How can you guarantee the quality of mass production is same with the sample outrigger pad sent to me before?
A3: Our warehouse staff will leave another same sample in our company, with your company name marked on it, which our production will be based on.


Q4: What is your delivery time for the outrigger pad?
A4: It depends on the volume, usually it is about 7 days.
outrigger pad is a safety tool that can be used with any device that has outriggers, lower jacks or stabilizers. When a piece of equipment (such as a crane) lifts loads or people at high places, stability is essential. The outrigger pads have different lengths, widths, thicknesses and shapes.
