Ground Bearing Stabilizer Leg PE Outrigger Pads For Heavy Equipment Crane Truck

Ground Bearing Stabilizer Leg PE Outrigger Pads For Heavy Equipment Crane Truck
Ground Bearing Stabilizer Leg PE Outrigger Pads For Heavy Equipment Crane Truck Ground Bearing Stabilizer Leg PE Outrigger Pads For Heavy Equipment Crane Truck Ground Bearing Stabilizer Leg PE Outrigger Pads For Heavy Equipment Crane Truck Ground Bearing Stabilizer Leg PE Outrigger Pads For Heavy Equipment Crane Truck

Large Image :  Ground Bearing Stabilizer Leg PE Outrigger Pads For Heavy Equipment Crane Truck

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: PE Outrigger Pad
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 50000 /Pieces per Month

Ground Bearing Stabilizer Leg PE Outrigger Pads For Heavy Equipment Crane Truck

Description
Item: Stabilizer Leg PE Outrigger Pads For Heavy Equipment Crane Truck Material: PE Virgin 100%
Color: Yellow,Black,Customized Size: 400*400*40 Mm,500*500*50 Mm,600*600*60 Mm
Thickness: 30-100 Mm Surface: Anti-Slip, Smooth
Usage: Crane, Pump
High Light:

Crane Truck PE Outrigger Pad

,

Ground Bearing stabilizer leg pads

,

PE Outrigger stabilizer leg pads

Stabilizer Leg PE Outrigger Pads For Heavy Equipment Crane Truck
 Ground Bearing Stabilizer Leg PE Outrigger Pads For Heavy Equipment Crane Truck

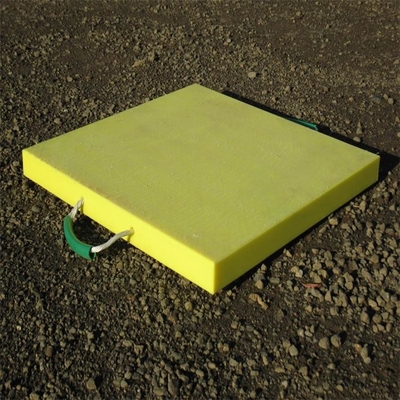

Crane outrigger pad is a safety tool that can be used with any device that has outriggers, lower jacks or stabilizers. When a piece of equipment (such as a crane) lifts loads or people at high places, stability is essential. The outrigger pads have different lengths, widths, thicknesses and shapes.

Ground Bearing Stabilizer Leg PE Outrigger Pads For Heavy Equipment Crane Truck 0

Benefits of Crane Otrigger Pads:

  • Work in sub zero temperatures.
  • Easy to mount, replace.
  • Reduced downtime.
  • Lower maintenance costs.
  • Durable & Long Lasting.
  • Cost Efficient compared to Steel or Aluminu
  • Safer to use in the field compared to other wood based pads.



Product Specification:




SizeLoad CapacityLoad Spread Area
300*300*30mm5 Ton0.09 m²
400*400*40mm10 Ton0.16 m²
500*500*50mm18 Ton0.25 m²
600*600*60mm25 Ton0.36 m²
800*800*80mm35 Ton0.64 m²
1000*1000*100mm80 Ton1.00 m²
1200*1200*100mm160 Ton1.44 m²
1500*1500*100mm200 Ton2.25m²


Ground Bearing Stabilizer Leg PE Outrigger Pads For Heavy Equipment Crane Truck 1

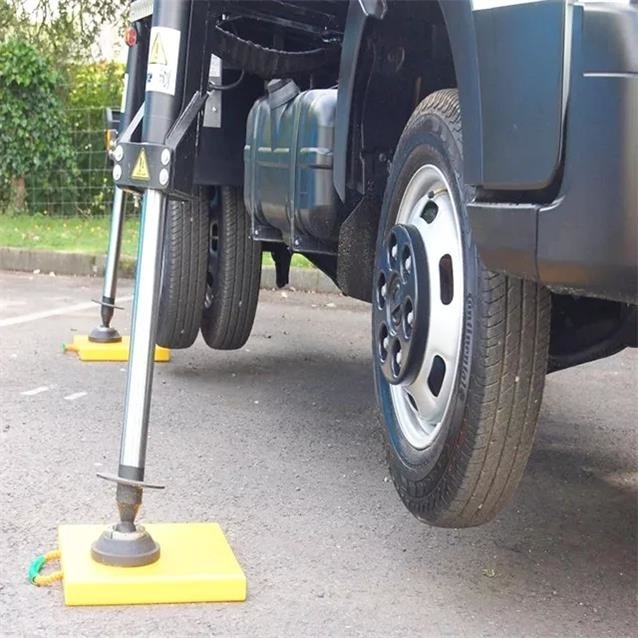

The outrigger block is primarily an outrigger used to support large machines. It is used to distribute the weight of large aerial equipment such as cranes, concrete pumps, multi-purpose trucks, fire engines, tree shears, etc.Leg pads reduce the chance that the legs will pass through soil, asphalt, or even concrete due to the weight of the support.

Ground Bearing Stabilizer Leg PE Outrigger Pads For Heavy Equipment Crane Truck 2

UHMW Plastic Crane Outrigger Pads Features:


* More Stable

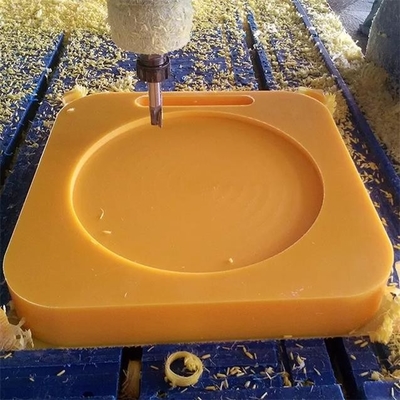

UHMW outrigger pads is made by moulding press process craft. the thickness can be customized and as thick as 200mm. It is super durable, it will not change the shape and thickness even after decades. The surface remain flat under extrem high loading capacity.

* Long lasting service life
One outrigger pad can be used forever!​ Because of the excellent wear resistance and strong structure, our pads will not warping, splinter, bend or any other damage.

* Waterproof, Anti chemical
UHMW polyethylene water absorption rate less than 0.01%. It can be used in any weather, due to its chemical resistance features, it also can be used in critical working site.


Ground Bearing Stabilizer Leg PE Outrigger Pads For Heavy Equipment Crane Truck 3


FAQ :


 1.Q: Are you trading company or manufacturer ?
 A: We are an industry and trade integrated company, we have our own factory and foreign trade sales team, so, we can process the drawings you provide, to provide you with a competitive price.

2.Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.


4.Q: Is there any warranty on the quality of your products ?
A: Please don't worry about that, we have 20 years of experience in producing PE products, our products widely used in Europe, the America and other countries.

5.Q:What about the after-sales service?
A: We have years of guaranteed life, if our products have any problems, you can ask the feedback of our product termly, we will fix it for you.
