Custom UHMWPE Radiation Products Borate Boron Impregnated Polyethylene Sheet

Custom UHMWPE Radiation Products Borate Boron Impregnated Polyethylene Sheet
Custom UHMWPE Radiation Products Borate Boron Impregnated Polyethylene Sheet Custom UHMWPE Radiation Products Borate Boron Impregnated Polyethylene Sheet Custom UHMWPE Radiation Products Borate Boron Impregnated Polyethylene Sheet Custom UHMWPE Radiation Products Borate Boron Impregnated Polyethylene Sheet

Large Image :  Custom UHMWPE Radiation Products Borate Boron Impregnated Polyethylene Sheet

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: Borate Boron Impregnated Polyethylene Sheet
Payment & Shipping Terms:
Minimum Order Quantity: 50 kilograms
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 5000 /Kilograms per Month

Custom UHMWPE Radiation Products Borate Boron Impregnated Polyethylene Sheet

Description
Product Name: UHMWPE Radiation Products Borate Boron Impregnated Polyethylene Sheet Material: 100% Virgin PE
Color: Natural White, Black, Yellow Size: 1220mm*2440 Mm
Thickness: 5-200mm Elemental Boron: Boron 30% By Weight
Processing Service: Cutting, Moulding
High Light:

Borate Boron Impregnated Polyethylene Sheet

,

Boron Impregnated Polyethylene Sheet

,

Boron UHMWPE Plastic Sheet

          UHMWPE Radiation Products Borate Boron Impregnated Polyethylene Sheet

Custom UHMWPE Radiation Products Borate Boron Impregnated Polyethylene Sheet

Borated polyethylene is a product typically used in the medical field to shield neutrons. Made from high density polyethylene plastic with 5% boron content by weight, this material provides exceptional durability over a wide temperature range.

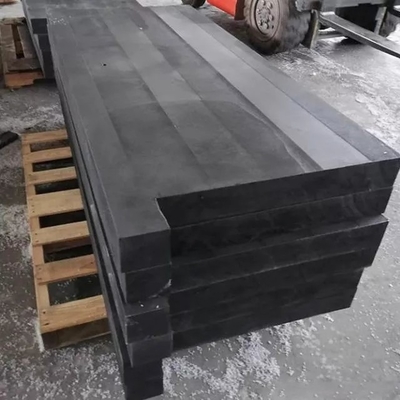

Custom UHMWPE Radiation Products Borate Boron Impregnated Polyethylene Sheet 0

Properties of Boroned Polyethylene Board :

  • The maximum parameters of the product are 3100x2100 mm.
  • The maximum thickness is 160 mm.
  • The proportion of boron by weight - is 1% - 30%.
  • Preservation of stability in size over a wide temperature range.
  • Easy processing and shaping of borated polyethylene.
  • Significant cost difference compared to lead.



Product Specification:


Instead of a portable shield, the plate is used as a gasket and electrical insulation in various hollow structures or devices whose housing is protected by a casing (the plate is placed between the housing and the casing or is tightly lined on the outside of the object).



Project Unit Test Result
Notched Izod Impact ft. lbs/in.2 No Break
Vicat Softening Temp. ºC (ºF) 89ºC (192ºF)
Tensile Strength @ Break % >140
Elongation @ Yield p.s.i. >300
Shore Harness ShoreD 64
Flexural Modulus p.s.i. 3000

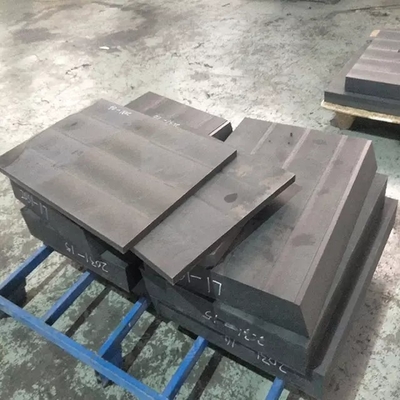

Custom UHMWPE Radiation Products Borate Boron Impregnated Polyethylene Sheet 1


our company's standard boron content ranges from 2% to 50%, which can be customized according to customer use and needs. Boron carbide, boron trioxide, borax, boric acid, lead powder, lithium carbonate, etc. can be added to it. Size and thickness The company's design department has a specific splicing plan, and the radiation shielding performance will not be damaged after splicing.



Length x Width x Thickness ( mm ) Length x Width x Thickness (mm)
700 х 500 х 10 1000 х 500 х 10
700 х 500 х 20 1000 х 500 х 20
700 х 500 х 25 1000 х 500 х 25
700 х 500 х 30 1000 х 500 х 30
700 х 500 х 40 1000 х 500 х 40
700 х 500 х 50 1000 х 500 х 50
700 х 500 х 60 1000 х 500 х 60
700 х 500 х 65 1000 х 500 х 65
700 х 500 х 70 1000 х 500 х 70

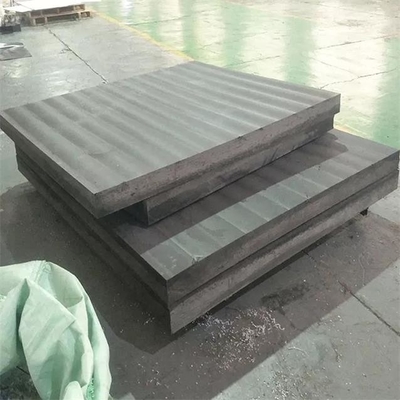

Custom UHMWPE Radiation Products Borate Boron Impregnated Polyethylene Sheet 2





Why Choose Boron-polyethylene board :


First of all, borated polyethylene is used in the nuclear power industry — to protect employees from radiation caused by:

  • fast and thermal neutrons;
  •  alpha and gamma radiation (primary and secondary).

Speaking generally, almost all structural divisions of nuclear power need borated polyethylene sheets:

  • nuclear power plants;
  • nuclear - powered ships, etc.

BPE sheets with the right distance from the source of ionizing radiation, dimensions, boron concentration and some other indicators can both delay background radiation and active radiation by 100%, and reduce their intensity to health-safe values.

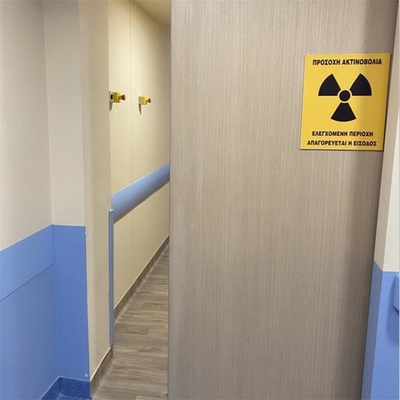

The second area of application of borated polyethylene is medical institutions — where there is a risk of radiation exposure: X-ray rooms, treatment rooms using fast neurons, rooms for fluorography, radiation therapy for cancer, etc.



The third area of demand is the creation of a safe environment in laboratories using radioactive installations and/or components.



Finally, borated polyethylene boards are purchased by ordinary citizens for household purposes if their homes are located near radio-emitting objects or the radio background is increased due to poor-quality building materials of walls, ceiling, etc.





FAQ:


1. Q: Are you a manufacturer or a trading company?

A: We are one of the leading PE manufacturer in China for more than 20 years.

2. Q: How long can I get the latest price?

A: We usually quote within 12 hours after we get your inquiry.

3. Q: What is your mainly products

A: UHMWPE/HDPE outrigger pads, HDPE ground protection mats, UHMWPE sheet, PE chopping board, UHMW PE belt conveyor roller, UHMWPE fender.

4. Q: Do your factory inspect the finished products?

A: Yes. Each step of products and finished products will be carried out inspection by QC department before shipping.

5. Q: How can I get sample from you

A: Just send your requirement and we will send you the samples accordingly by DHL,UPS,TNT or others
