Self Lubricating Property Blue UHMWPE Plastic Silos Coal Bunker Liner Sheet

Certification
China Tangyin Taixing Engineering Plastics Co., Ltd. certification
China Tangyin Taixing Engineering Plastics Co., Ltd. certification
I'm Online Chat Now

Self Lubricating Property Blue UHMWPE Plastic Silos Coal Bunker Liner Sheet

Self Lubricating Property Blue UHMWPE Plastic Silos Coal Bunker Liner Sheet
Self Lubricating Property Blue UHMWPE Plastic Silos Coal Bunker Liner Sheet Self Lubricating Property Blue UHMWPE Plastic Silos Coal Bunker Liner Sheet Self Lubricating Property Blue UHMWPE Plastic Silos Coal Bunker Liner Sheet Self Lubricating Property Blue UHMWPE Plastic Silos Coal Bunker Liner Sheet

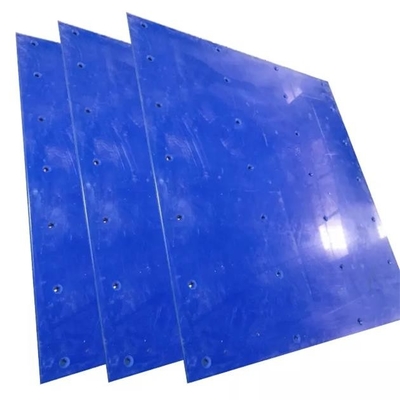

Large Image :  Self Lubricating Property Blue UHMWPE Plastic Silos Coal Bunker Liner Sheet

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: UHMWPE Coal Bunker Liner
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 50000 /pieces per Month

Self Lubricating Property Blue UHMWPE Plastic Silos Coal Bunker Liner Sheet

Description
Item:: Coal Mine Chute Liner UHMWPE Coal Bunker Liner Plate Material: UHMW Polyethylene
Color:: Natural White, Black, Yellow Size:: 1220*2440*15mm
Thickness:: 5-200mm Density:: 0.94-0.98 G/cm3
Processing Service:: Cutting, Moulding Feature: Self Lubricating ,Non-Sticking Plastic Bunker Lining
High Light:

UHMWPE Coal Bunker Liner

,

Blue UHMWPE Bunker Liner Sheet

,

Bunker Liner UHMWPE Plastic Sheet

          Self Lubricating Property Blue UHMWPE Plastic Silos Coal Bunker Liner Sheet


UHMWPE Liner  have excellent wear resistance, low temperature impact resistance, selflubricating, nontoxic, water resistance, chemical resistance, and heat resistant, they are superior to general PE. It can be widely used to impact resistance, wearresistant, corrosionresistant, nonsticking, reduce noise, and high hygiene requirements of industrial mining field. It can greatly reduce operatingcosts of the equipment and maintenance, at the same time improve overall economic benefits.

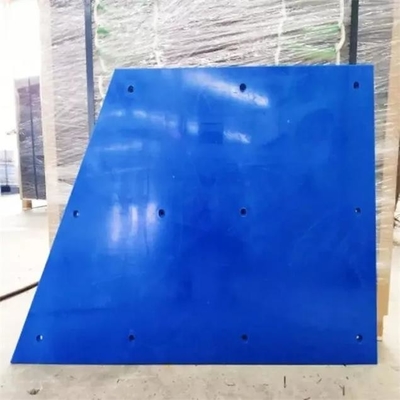

 Self Lubricating Property Blue UHMWPE Plastic Silos Coal Bunker Liner Sheet 0

 UHMWPE Liner Sheets Advantages:

1 Extraordinary wear-resistant,4~6 times higher than other plastic,6~9 times higher than steel,and 26 times higher than copper.


2 Highly impact strength, 10 times higher than PA6 and PP


3 Low friction coefficient (0.05~0.11) , and capable of self lubrication


4 Unattractive to foreign material,and anti sticking while sliding


5 Resistant to chemical attack



Product Specification:


UHMW bulk liner is a high-quality engineering plastic that is commonly used in bulk material handling applications. It offers excellent resistance to wear and has a very low coefficient of friction that allows materials to flow freely across its surface.



 Product Name

  Ultra-high Molecular Weight Polyethylene UHMWPE Sheet
 Material

 Ultra-high Molecular Weight Polyethylene





 Size



1200*2400 mm,1200*4000 mm ,12100*3100 mm
size can also be cut into small piece depend on your usage


 Thickness

  5-200 mm


Density

  0.94-0.98 g/cm3



Water Absorption

<0.01%

Impact Strength


≥140 KJ/m2


Tensile strength (23°C in air)

22 Mpa

Breaking strength 42 Mpa
Temperature resistance -269°C to +90°C

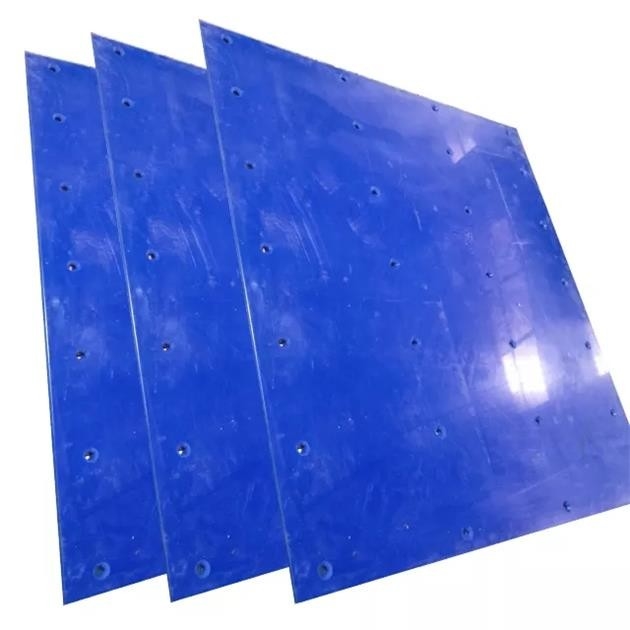

Self Lubricating Property Blue UHMWPE Plastic Silos Coal Bunker Liner Sheet 1


 UHMW plastic liners is a common alternative for lining chutes, hoppers and silos as it helps solve liquid movement, ratholing, and arching problems. It is solid and stable, exhibits outstanding corrosion resistance and does not absorb moisture. Using in-house CNC machining equipment for fast deployment, our UHMW plastic liners is available in a variety of thicknesses and can be machined to order.


 Self Lubricating Property Blue UHMWPE Plastic Silos Coal Bunker Liner Sheet 2




Coal Bunker Liner Install:


We have 6 construction teams with years of experience ,which can provide coal bunker liner plate installation service for you anytime.



Self Lubricating Property Blue UHMWPE Plastic Silos Coal Bunker Liner Sheet 3



UHMWPE Liner Application:


1. Chemical Engineering: Corrosion and wear resistantance mechanical parts
2. Thermal power: coal handling, storage of coal, warehousing chute lining
3. Coal processing: sieve plate, filter, U-underground coal chute
4. Concrete: cement raw and finished product silo silo lining
5. Grain: food storage or chute lining
6. Mining: sieve plate, chute linings, wear anti-bonding part
7. Food industry: star-shaped wheel, transmission timing bottle screw, bearings, guide



FAQ:


Q: What color of the UHMWPE sheet you can produce ?

A: We can produce red ,yellow,blue,black,green ,gray ,double color and so on .we can produce others colors according to your requirement too.



Q: How can i get the sample ?And what's your sample times?

A: Small size of the sample is free.
And we can send the sample by EMS,DHL,TNT,UPS,FedEx. By air. By ship.Just choose the most appropriate one.
For our existing samples--1 day.; For customized samples--5 days



Q: Could you provide product customization service?

A: Yes, and it's better to get your drawing or idea of it.



Q: What is your main products?



A: UHMWPE/HDPE/LDPE sheet, UHMWPE belt conveyor roller, PE chopping board, HDPE ground mat,UHMWPE outrigger pad. Etc.
