Hospital Black Plastic Borated Polyethylene Sheet Radio Shielding UHMWPE Board

Certification
China Tangyin Taixing Engineering Plastics Co., Ltd. certification
China Tangyin Taixing Engineering Plastics Co., Ltd. certification
I'm Online Chat Now

Hospital Black Plastic Borated Polyethylene Sheet Radio Shielding UHMWPE Board

Hospital Black Plastic Borated Polyethylene Sheet Radio Shielding UHMWPE Board
Hospital Black Plastic Borated Polyethylene Sheet Radio Shielding UHMWPE Board Hospital Black Plastic Borated Polyethylene Sheet Radio Shielding UHMWPE Board Hospital Black Plastic Borated Polyethylene Sheet Radio Shielding UHMWPE Board Hospital Black Plastic Borated Polyethylene Sheet Radio Shielding UHMWPE Board

Large Image :  Hospital Black Plastic Borated Polyethylene Sheet Radio Shielding UHMWPE Board

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: Borated Polyethylene Sheet Radio Shielding
Payment & Shipping Terms:
Minimum Order Quantity: 50 kilograms
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 5000 /Kilograms per Month

Hospital Black Plastic Borated Polyethylene Sheet Radio Shielding UHMWPE Board

Description
Item:: Hospital Black Plastic Borated Polyethylene Sheet Radio Shielding UHMWPE Board Material: 100% Virgin PE
Color:: Black Size:: 1220mm*2440 Mm
Thickness:: 5-200mm Density:: 0.94-0.98 G/cm3
Processing Service:: Cutting, Moulding
High Light:

Borated Polyethylene Sheet Radio Shielding

,

UHMWPE Borated Polyethylene Sheet

,

Radio Shielding UHMWPE Board

          Hospital Black Plastic Borated Polyethylene Sheet Radio Shielding UHMWPE Board

Boron polyethylene shield (borated polyethylene shielding box) of boron polyethylene materials according to use need to customize, used for shielding radioactive source radiation shielding, in boron polyethylene shield, boron can absorb effect, of boron neutron reaction cross section is larger, in has not happened before the reaction of hydrogen boron neutron can be fully absorbed, Thus play a complete shielding role.


Hospital Black Plastic Borated Polyethylene Sheet Radio Shielding UHMWPE Board 0

Boroned Polyethylene Board Advantages:

  • Good radiation resistance
  • High wear resistance
  • Good self lubricity
  • High impact resistance
  • Good electrical insulation

Product Specification:


Instead of a portable shield, the plate is used as a gasket and electrical insulation in various hollow structures or devices whose housing is protected by a casing (the plate is placed between the housing and the casing or is tightly lined on the outside of the object).



Project Unit Test Result
Notched Izod Impact ft. lbs/in.2 No Break
Vicat Softening Temp. ºC (ºF) 89ºC (192ºF)
Tensile Strength @ Break % >140
Elongation @ Yield p.s.i. >300
Shore Harness ShoreD 64
Flexural Modulus p.s.i. 3000



Hospital Black Plastic Borated Polyethylene Sheet Radio Shielding UHMWPE Board 1

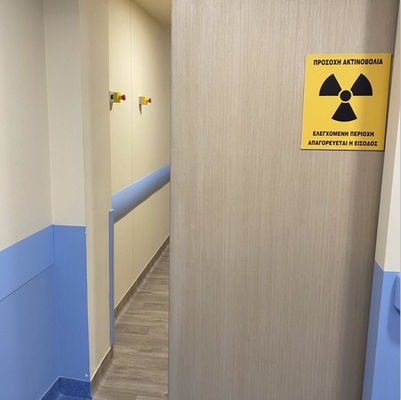

Borated Polyethylene is often used to shield duct penetrations in radiation therapy vaults. Typically 1 or 2 inches of 5% borated polyethylene is required in addition to some sheets lead.



Length x Width x Thickness ( mm ) Length x Width x Thickness (mm)
700 х 500 х 10 1000 х 500 х 10
700 х 500 х 20 1000 х 500 х 20
700 х 500 х 25 1000 х 500 х 25
700 х 500 х 30 1000 х 500 х 30
700 х 500 х 40 1000 х 500 х 40
700 х 500 х 50 1000 х 500 х 50
700 х 500 х 60 1000 х 500 х 60
700 х 500 х 65 1000 х 500 х 65
700 х 500 х 70 1000 х 500 х 70


Hospital Black Plastic Borated Polyethylene Sheet Radio Shielding UHMWPE Board 2



Composition of borated polyethylene​ :


 Borated polyethylene is manufactured according to TU 20.16.10.111 – 012. – 27395268 – 2021. According to the provisions of this document, the boards consist of high-molecular polyethylene. The minimum concentration of boron is 3%, the maximum is 30%.There are three molecular carriers of boron:

  • amorphous boron;
  • chemically pure boron carbide;
  • the composition of boron carbide with the isotope B10.

The following requirements are imposed on the content of boron in polyethylene, depending on the brand:

  • 3% (BPE-3)
  • 5% (BPE-5)
  • 7% (BPE-7)
  • 8% (BPE-8)
  • 10% (BPE-10)
  • 12% (BPE-12)
  • 20% (BPE-20)
  • 30% (BPE-30)

BPE boards are allowed to operate under reactor irradiation conditions and in environments heated to 100 ° C. The limit value of relative humidity is 100%. It is not prohibited to use in water, including sea, if the minimum temperature does not fall below -2 °C and does not rise above +30 ° C.



Application:


Borated polyethylene is easy to work with, fabricate, and install, making it ideal for a wide range of shielding applications, such as high intensity x-ray rooms, medical vaults and vault doors, nuclear energy or storage facilities, particle accelerators, hot cells, and more.



Hospital Black Plastic Borated Polyethylene Sheet Radio Shielding UHMWPE Board 3



About Us:


Q1: Are you a trading company or manufacturer?
A1: We are manufacture to produce boron polyethylene plate.


Q2: What is your MOQ of boron polyethylene plate?
A2: It depends on the stock we have and the size you need.


Q3:  How soon can I get the goods?
A3: Generally, 5-10 days with stock and 15-20 days without stock, according to quantity.



4.Q: How about your after-sales service?
A4: We have A dedicated after sales tracker, any need can contact us at any time.
