Polyethylene idler HDPE Carrier Roller Mining Industry Belt Conveyor Labyrinth Seal

Certification
China Tangyin Taixing Engineering Plastics Co., Ltd. certification
China Tangyin Taixing Engineering Plastics Co., Ltd. certification
I'm Online Chat Now

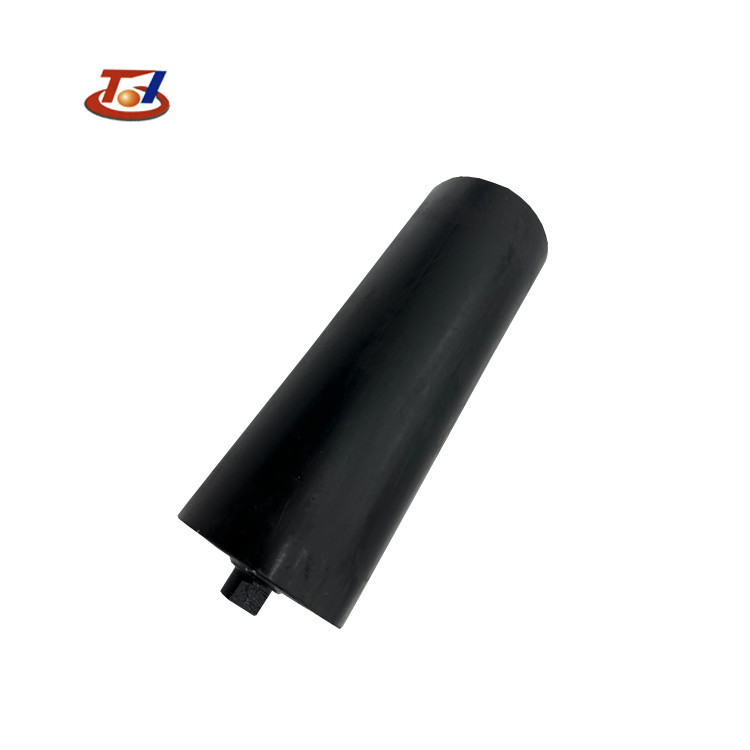

Polyethylene idler HDPE Carrier Roller Mining Industry Belt Conveyor Labyrinth Seal

Polyethylene idler HDPE Carrier Roller Mining Industry Belt Conveyor Labyrinth Seal
Polyethylene idler HDPE Carrier Roller Mining Industry Belt Conveyor Labyrinth Seal Polyethylene idler HDPE Carrier Roller Mining Industry Belt Conveyor Labyrinth Seal Polyethylene idler HDPE Carrier Roller Mining Industry Belt Conveyor Labyrinth Seal Polyethylene idler HDPE Carrier Roller Mining Industry Belt Conveyor Labyrinth Seal

Large Image :  Polyethylene idler HDPE Carrier Roller Mining Industry Belt Conveyor Labyrinth Seal

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: Polyethylene idler HDPE Carrier Roller
Payment & Shipping Terms:
Minimum Order Quantity: 500 pieces
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 500000 / pieces per Month

Polyethylene idler HDPE Carrier Roller Mining Industry Belt Conveyor Labyrinth Seal

Description
Item: Belt Conveyor Labyrinth Seal Polyethylene Idler HDPE Carrier Roller Material: PE Virgin 100%
Color: Blue ,Black Or Customized Size: Dia: 76-194mm
Structure: Ordinary Roller Process: Mould Pressing
Application: Chemical Industry, Grain Transportation, Mining Transport, Power Plant
High Light:

Polyethylene idler HDPE Carrier Roller

,

idler HDPE Carrier Roller

,

Polyethylene idler Carrier Roller

Mining Industry Belt Conveyor Labyrinth Seal Polyethylene idler HDPE Carrier Roller



polyethylene plastic belt conveyor roller is a high-tech product, which consists of uhmwpe pipe,metal bearing, metal shaft , plastic bearing housing , sealing ring and so on . Compared with metal roller , uhmwpe plastic roller has many obvious advantages in performance.

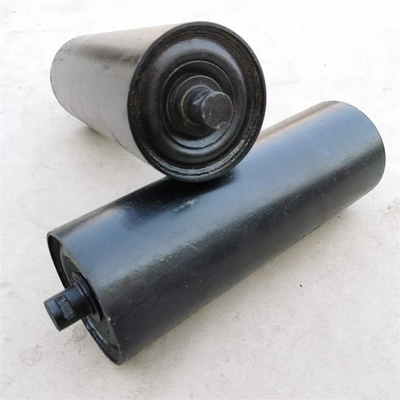

Polyethylene idler HDPE Carrier Roller Mining Industry Belt Conveyor Labyrinth Seal 0



Plastic  conveyor rollers Features:



  • Free running capability to convey very lightweight loads
  • Low cost alternative to stainless steel tube rollers
  • Plastic conveyor rollers are available in either grey and blue.
  • Ideal for use in humid, wet or wash-down environments
  • Non-marking benefits when in contact with the white top surface of flat or modular belts



Product Specification:


Roller for Conveyor market well-known brands, a variety of standard and non-standard roller service nearly a thousand large customers.

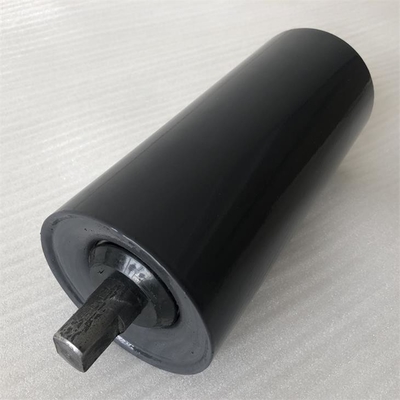

Polyethylene idler HDPE Carrier Roller Mining Industry Belt Conveyor Labyrinth Seal 1



Outer Diameter

D1(mm)





Shaft Diameter

D2 (mm)



Customized(mm)

Bearing Type

(HRB/LYC/SKF)

Bearing size

(mm)

Dia76 Dia20

Custom Length:

150-2000
L1,L2,L3,L4,L5



Spindle Head Custom: Milling, Punch, Thread

6204 20*47*14
Dia89 Dia20 6204 20*47*14
Dia102 Dia20 6204 20*47*14
Dia25 6205 25*52*15
Dia108 Dia20 6304 25*52*15
Dia25 6205 25*52*15
Dia114 Dia25 6205 25*52*15
Dia127 Dia25 6305 25*62*17
Dia30 6306 30*72*19
Dia133 Dia25 6305 25*62*17
Dia140 Dia25 6305 25*62*17
Dia152 Dia35 6307 35*80*21
Dia159 Dia35 6307 35*80*21

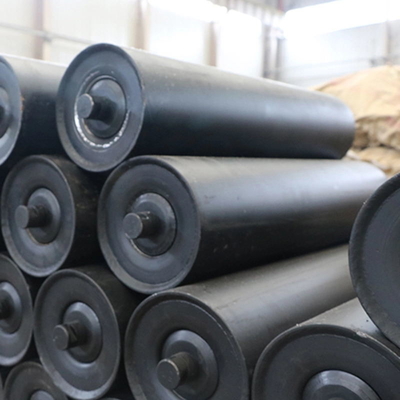

Polyethylene idler HDPE Carrier Roller Mining Industry Belt Conveyor Labyrinth Seal 2



UHMWPE Conveyor Roller have many features like lightweight, small wear, anti-UV, anti-static, labyrinth seal, high self-lubricating property, it can work well with belt. While UHMW Idler has high impact resistance and tenacity to bear the impact and shake.



Polyethylene idler HDPE Carrier Roller Mining Industry Belt Conveyor Labyrinth Seal 3







Characteristics of  plastic Conveying roller:


1. High-wear resistance is seven times the wear resistance of steel and four times that of PTFE.



2. High impact resistance two times impact resistance than PC, five times than ABS.



3. Self-lubrication is the same as PTFE, better than steel and brass appended lubricating oil.



4. Anti-corrosion resistance, stable chemicals property and can endure the corrosion of all kinds of corrosive medium and organic solvent in certain rang of temperature and humidity.



5. Non-sticking the smooth surface of the product hardly affixes other material.



6. Low-temperature resistance in (-196), it still has the prolongation and high tensile strength.



7. Non-toxic and clean property.



Application:


UHMW Conveyor Roller is made of virgin PE-UHMW material. plastic conveyor rollers are widely used in open dusty and highly corrosive environments, such as mines, power plants, steel plants, stone plants, cement plants and coking plants, coal preparation plants, salt plants, alkali plants, chemical fertilizer Transportation sites such as factories and docks.



Polyethylene idler HDPE Carrier Roller Mining Industry Belt Conveyor Labyrinth Seal 4



FAQ:


Q1: What is the main size of your HDPE /UHMWPE conveyor roller?
A1:φ89,φ102,φ108,φ114,φ127,φ133,φ140,φ152,φ159, The length could be customized. So please do not worry about the size.



Q2: What color of plastic conveyor rolleryou can produce?
A2: Our common colors are black and blue. we can produce other colors according to your requirement too.


Q3:Do you make a customized logo on the HDPE/UHMWPE conveyor rollers?
A4: Yes, we do. Just send your artwork for the logo. We will print the logo on the seals as your request.



Q4: Could you provide a product customization service?
A4: Yes, and it's better to get your drawing or idea of it.
