Adjustable Customized UHMWPE Plastic Conveyor Idler Roller For Belt Supporting

Certification
China Tangyin Taixing Engineering Plastics Co., Ltd. certification
China Tangyin Taixing Engineering Plastics Co., Ltd. certification
I'm Online Chat Now

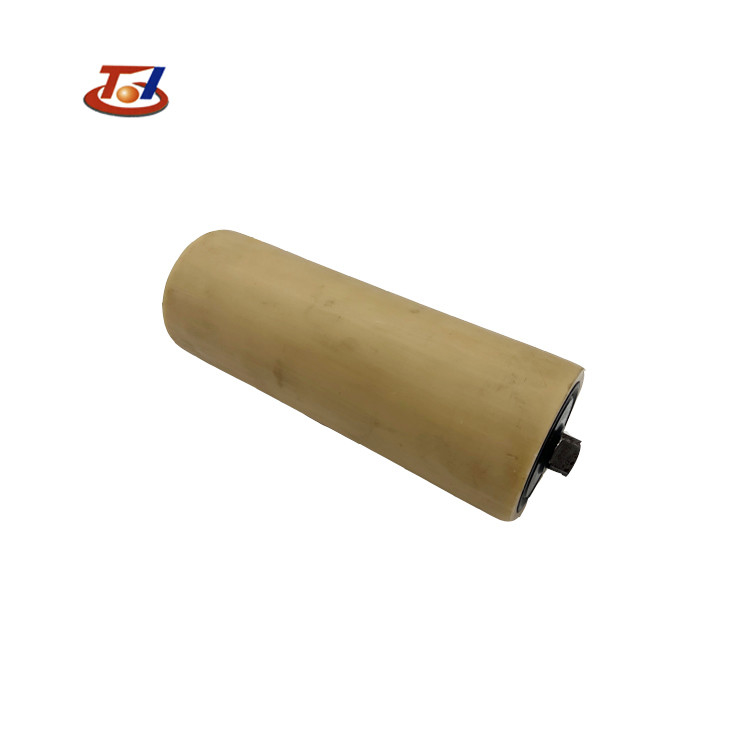

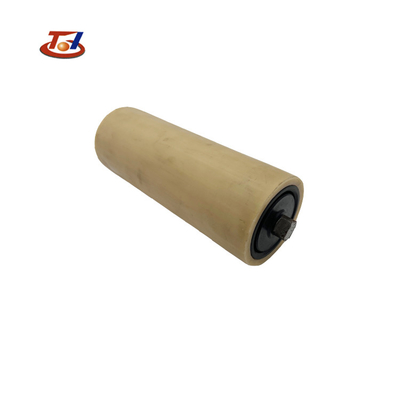

Adjustable Customized UHMWPE Plastic Conveyor Idler Roller For Belt Supporting

Adjustable Customized UHMWPE Plastic Conveyor Idler Roller For Belt Supporting
Adjustable Customized UHMWPE Plastic Conveyor Idler Roller For Belt Supporting Adjustable Customized UHMWPE Plastic Conveyor Idler Roller For Belt Supporting

Large Image :  Adjustable Customized UHMWPE Plastic Conveyor Idler Roller For Belt Supporting

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: UHMWPE Plastic Conveyor Belt Roller
Payment & Shipping Terms:
Minimum Order Quantity: 500 pieces
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 500000 / pieces per Month

Adjustable Customized UHMWPE Plastic Conveyor Idler Roller For Belt Supporting

Description
Item:: Idler Roller UHMWPE Plastic Conveyor Belt Roller Material: UHMWPE
Color:: Blue,Black Or Customized Size:: Dia: 76-194mm
Bearing Type:: Double Sealed Bearing Structure:: Ordinary Roller
Surface:: Smooth,Matte,Orange Peel
High Light:

UHMWPE Plastic Conveyor Belt Roller

,

Customized Plastic Conveyor Rollers

,

Plastic Conveyor Rollers UHMWPE

Adjustable Customized UHMWPE Plastic Conveyor Idler Roller For Belt Supporting



Light-weight and durable, plastic conveyor rollers are the product of choice for a growing number of companies across the country. UHMW conveyor rollers are often cheaper than their metal equivalents; the construction of modern plastics means that in many cases, plastic rollers for conveyors provide a material that’s as tough and lasts as long as a non-plastic alternative.



Adjustable Customized UHMWPE Plastic Conveyor Idler Roller For Belt Supporting 0



Plastic UHMW conveyor rollers Features:



  • Durable for over 3 years
  •
  • Withstand 30,000 hours of rotation, super long life
  •
  • Better than metal rollers
  •
  • Lightweight silenced rain resistance reduces belt wear



Product Specification:


Roller for Conveyor market well-known brands, a variety of standard and non-standard roller service nearly a thousand large customers.



Adjustable Customized UHMWPE Plastic Conveyor Idler Roller For Belt Supporting 1



Outer Diameter

D1(mm)





Shaft Diameter

D2 (mm)



Customized(mm)

Bearing Type

(HRB/LYC/SKF)

Bearing size

(mm)

Dia76 Dia20

Custom Length:

150-2000
L1,L2,L3,L4,L5



Spindle Head Custom: Milling, Punch, Thread

6204 20*47*14
Dia89 Dia20 6204 20*47*14
Dia102 Dia20 6204 20*47*14
Dia25 6205 25*52*15
Dia108 Dia20 6304 25*52*15
Dia25 6205 25*52*15
Dia114 Dia25 6205 25*52*15
Dia127 Dia25 6305 25*62*17
Dia30 6306 30*72*19
Dia133 Dia25 6305 25*62*17
Dia140 Dia25 6305 25*62*17
Dia152 Dia35 6307 35*80*21
Dia159 Dia35 6307 35*80*21





Adjustable Customized UHMWPE Plastic Conveyor Idler Roller For Belt Supporting 2



UHMWPE conveyor belt roller has a novel structure, reliability seal, and advanced material selection. Rollers and housing are made of ultra-High Molecular Weight Polyethylene (UHMWPE) which has anti-friction self-lubrication, impact resistance, anti-adhesion, and anti-corrosion, resistant to aging, and other characteristics.



Adjustable Customized UHMWPE Plastic Conveyor Idler Roller For Belt Supporting 3







Characteristics of  plastic Conveying roller:


1. High-wear resistance is seven times the wear resistance of steel and four times that of PTFE.



2. High impact resistance two times impact resistance than PC, five times than ABS.



3. Self-lubrication is the same as PTFE, better than steel and brass appended lubricating oil.



4. Anti-corrosion resistance, stable chemicals property and can endure the corrosion of all kinds of corrosive medium and organic solvent in certain rang of temperature and humidity.



5. Non-sticking the smooth surface of the product hardly affixes other material.



6. Low-temperature resistance in (-196), it still has the prolongation and high tensile strength.



7. Non-toxic and clean property.



Application:


PE conveyor roller is widely used in the original dock transporting places where dust is bigger and the environment has high corrosive , such as mining , power , steel , stone materials factory , cement and coking plant , coal washing factory , salt plant , alkali plant , fertilizer factory , dock and so on .



Adjustable Customized UHMWPE Plastic Conveyor Idler Roller For Belt Supporting 4



FAQ:


  Q1: What is the main size of your HDPE /UHMWPE conveyor roller?
 A1:φ89,φ102,φ108,φ114,φ127,φ133,φ140,φ152,φ159, The length could be customized. So please do not worry about the size.



Q2: What color of plastic conveyor rolleryou can produce?
A2: Our common colors are black and blue. we can produce other colors according to your requirement too.


Q3:Do you make a customized logo on the HDPE/UHMWPE conveyor rollers?
A4: Yes, we do. Just send your artwork for the logo. We will print the logo on the seals as your request.



Q4: Could you provide a product customization service?
A4: Yes, and it's better to get your drawing or idea of it.
