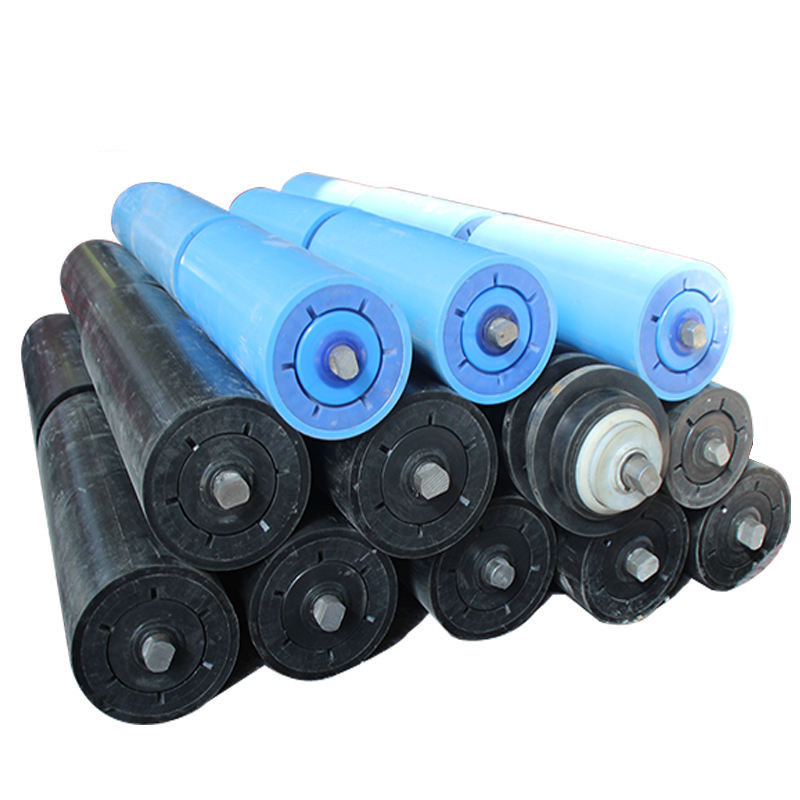

Custom Size UHMWPE Plastic Conveyor Rollers Handling Guide Roller Bearing

Custom Size UHMWPE Plastic Conveyor Rollers Handling Guide Roller Bearing
Custom Size UHMWPE Plastic Conveyor Rollers Handling Guide Roller Bearing Custom Size UHMWPE Plastic Conveyor Rollers Handling Guide Roller Bearing Custom Size UHMWPE Plastic Conveyor Rollers Handling Guide Roller Bearing Custom Size UHMWPE Plastic Conveyor Rollers Handling Guide Roller Bearing

Large Image :  Custom Size UHMWPE Plastic Conveyor Rollers Handling Guide Roller Bearing

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: UHMWPE Plastic Conveyor Roller
Payment & Shipping Terms:
Minimum Order Quantity: 500 pieces
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 500000 / pieces per Month

Custom Size UHMWPE Plastic Conveyor Rollers Handling Guide Roller Bearing

Description
Item: UHMWPE Plastic Conveyor Roller Handing Guide Roller Bearing Material: PE Virgin 100%
Color: Blue,Black Or Customized Size:: Dia: 76-194mm
Structure: Ordinary Roller Bearing Type: Double Sealed Bearing
Surface:: Smooth,Matte,Orange Peel
High Light:

UHMWPE Plastic Conveyor Roller

,

194mm Plastic Conveyor Rollers

,

76mm Plastic Conveyor Rollers

UHMWPE Plastic Conveyor Roller Handing Guide Roller Bearing



Custom Size UHMWPE Plastic Conveyor Roller Handing Guide Roller Bearing

The effectiveness of the UPE Plastic Conveyor Roller provides the solution to the environmental challenges of dust, dirt, water, low and high temperatures. Our UPE Conveyor Idler is a high-tech product, which consists of uhmwpe pipe, metal bearing, metal shaft, plastic bearing housing, sealing ring, etc. Especially for our conveyor roller, adopting the new labyrinth groove combined sealing technology, which make the waterproof and dustproof effect more remarkable



Custom Size UHMWPE Plastic Conveyor Rollers Handling Guide Roller Bearing 0



Plastic  conveyor rollers Features:



  • Free running capability to convey very lightweight loads
  • Low cost alternative to stainless steel tube rollers
  • Plastic conveyor rollers are available in either grey and blue.
  • Ideal for use in humid, wet or wash-down environments
  • Non-marking benefits when in contact with the white top surface of flat or modular belts



Product Specification:


Roller for Conveyor market well-known brands, a variety of standard and non-standard roller service nearly a thousand large customers.



Custom Size UHMWPE Plastic Conveyor Rollers Handling Guide Roller Bearing 1



Outer Diameter

D1(mm)





Shaft Diameter

D2 (mm)



Customized(mm)

Bearing Type

(HRB/LYC/SKF)

Bearing size

(mm)

Dia76 Dia20

Custom Length:

150-2000
L1,L2,L3,L4,L5



Spindle Head Custom: Milling, Punch, Thread

6204 20*47*14
Dia89 Dia20 6204 20*47*14
Dia102 Dia20 6204 20*47*14
Dia25 6205 25*52*15
Dia108 Dia20 6304 25*52*15
Dia25 6205 25*52*15
Dia114 Dia25 6205 25*52*15
Dia127 Dia25 6305 25*62*17
Dia30 6306 30*72*19
Dia133 Dia25 6305 25*62*17
Dia140 Dia25 6305 25*62*17
Dia152 Dia35 6307 35*80*21
Dia159 Dia35 6307 35*80*21





Custom Size UHMWPE Plastic Conveyor Rollers Handling Guide Roller Bearing 2



UHMWPE conveyor belt roller has a novel structure, reliability seal, and advanced material selection. Rollers and housing are made of ultra-High Molecular Weight Polyethylene (UHMWPE) which has anti-friction self-lubrication, impact resistance, anti-adhesion, and anti-corrosion, resistant to aging, and other characteristics.



Custom Size UHMWPE Plastic Conveyor Rollers Handling Guide Roller Bearing 3







Characteristics of  plastic Conveying roller:


1. High-wear resistance is seven times the wear resistance of steel and four times that of PTFE.



2. High impact resistance two times impact resistance than PC, five times than ABS.



3. Self-lubrication is the same as PTFE, better than steel and brass appended lubricating oil.



4. Anti-corrosion resistance, stable chemicals property and can endure the corrosion of all kinds of corrosive medium and organic solvent in certain rang of temperature and humidity.



5. Non-sticking the smooth surface of the product hardly affixes other material.



6. Low-temperature resistance in (-196), it still has the prolongation and high tensile strength.



7. Non-toxic and clean property.



Application:


UHMWPE conveyor rollers are widely used in cement, coal, gravel, fertilizers, ports, chemicals, quarrying, zinc mining, grain. General industry Coal Mining, Cement, Concrete, Limestone, and Quarry.Chemical Industry Fertilizer, Salt, Sugar, Pulp Paper, Acid, and Alkaline.Other Material Handling Equipment system.



Custom Size UHMWPE Plastic Conveyor Rollers Handling Guide Roller Bearing 4



FAQ:


Q1: What is the main size of your HDPE /UHMWPE conveyor roller?
A1:φ89,φ102,φ108,φ114,φ127,φ133,φ140,φ152,φ159, The length could be customized. So please do not worry about the size.



Q2: What color of plastic conveyor rolleryou can produce?
A2: Our common colors are black and blue. we can produce other colors according to your requirement too.


Q3:Do you make a customized logo on the HDPE/UHMWPE conveyor rollers?
A4: Yes, we do. Just send your artwork for the logo. We will print the logo on the seals as your request.



Q4: Could you provide a product customization service?
A4: Yes, and it's better to get your drawing or idea of it.
