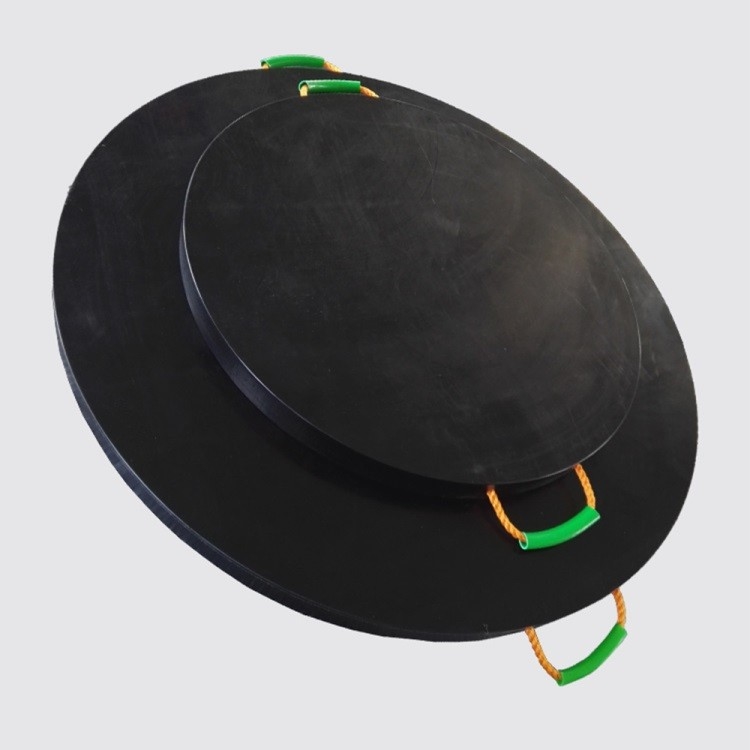

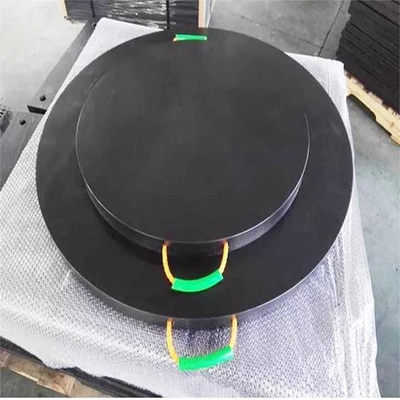

Round Outrigger Pads HDPE Portable Temporary Mobile Truck Plastic Foot Pads

Round Outrigger Pads HDPE Portable Temporary Mobile Truck Plastic Foot Pads
Round Outrigger Pads HDPE Portable Temporary Mobile Truck Plastic Foot Pads Round Outrigger Pads HDPE Portable Temporary Mobile Truck Plastic Foot Pads Round Outrigger Pads HDPE Portable Temporary Mobile Truck Plastic Foot Pads Round Outrigger Pads HDPE Portable Temporary Mobile Truck Plastic Foot Pads

Large Image :  Round Outrigger Pads HDPE Portable Temporary Mobile Truck Plastic Foot Pads

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: UHWM PE Round Outrigger Pad
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable

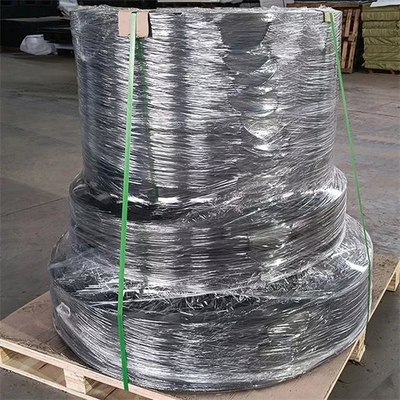

Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 50000 /Pieces per Month

Round Outrigger Pads HDPE Portable Temporary Mobile Truck Plastic Foot Pads

Description
Item:: UHWM PE Round Outrigger Pad Mobile Truck Plastic Foot Pads Material:: PE Virgin 100%
Dimension:: Dia 800-1200 Mm Thickness: 50mm-80mm
Shape:: Round Processing Service::: Cutting, Moulding, CNC
Usage: Supporting Legs Of The Construction Machinery, And Play A Supporting Role
High Light:

UHWM PE Round Outrigger Pads

,

Round Outrigger Pads HDPE

,

Mobile Truck Plastic Foot Pads

Portable Temporary UHWM PE Round Outrigger Pad Mobile Truck Plastic Foot Pads



Portable Temporary HDPE Round Outrigger Pad Mobile Truck Plastic Foot Pads

Heavy duty outrigger pads is made of UHMWPE, it is tough, Longlasting and Durable. It is a high load capacity outrigger crane padwith a large vertical load bearing capacity.UHMWPE plastic outrigger pads are used to support vehicles and cranes without warping, splintering , bending or any other damage.



Round Outrigger Pads HDPE Portable Temporary Mobile Truck Plastic Foot Pads 0



Benefits of Crane Otrigger Pads:


Work in sub zero temperatures.
Easy to mount, replace.
Reduced downtime.
Lower maintenance costs.
Durable & Long Lasting.
Cost Efficient compared to Steel or Aluminu
Safer to use in the field compared to other wood based pads.



Product Specification:




Size Load Capacity Weight
800*50mm 35Ton 25kg
800*60mm 40 Ton 30 kg
900*50mm 45 Ton 30 kg
900*60mm 50 Ton 35 kg
1000*50mm 55 Ton 29.25kg
1000*60mm 60Ton 40 kg
1000*70mm 75 Ton 50.75kg
1000*80mm 80 Ton 61.5kg
1200*60mm 90 Ton 66.4kg
1200*70mm 110 Ton 77.45kg



Round Outrigger Pads HDPE Portable Temporary Mobile Truck Plastic Foot Pads 1



UHMW Plastic crane outrigger pads are used under the support legs of heavy cranes, crawler cranes, boom pumps, concrete pumps, fire trucks, utility trucks, tree trimmers, any type of aerial equipment, etc. Make the machine work safely!



Round Outrigger Pads HDPE Portable Temporary Mobile Truck Plastic Foot Pads 2



UHMW Plastic Crane Outrigger Pads Features:


* More Stable
UHMW outrigger pads is made by moulding press process craft. the thickness can be customized and as thick as 200mm. It is super durable, it will not change the shape and thickness even after decades. The surface remain flat under extrem high loading capacity.


* Long lasting service life
One outrigger pad can be used forever!​ Because of the excellent wear resistance and strong structure, our pads will not warping, splinter, bend or any other damage.


* Waterproof, Anti chemical
UHMW polyethylene water absorption rate less than 0.01%. It can be used in any weather, due to its chemical resistance features, it also can be used in critical working site.



Round Outrigger Pads HDPE Portable Temporary Mobile Truck Plastic Foot Pads 3
