Anti Sticking Blocking Coal Mine Chute Liner UHMWPE Coal Bunker Liner Plate

Certification
China Tangyin Taixing Engineering Plastics Co., Ltd. certification
China Tangyin Taixing Engineering Plastics Co., Ltd. certification
I'm Online Chat Now

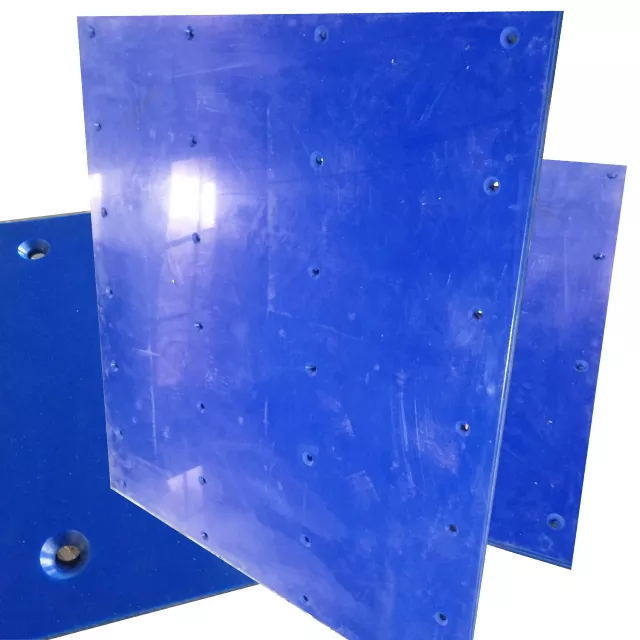

Anti Sticking Blocking Coal Mine Chute Liner UHMWPE Coal Bunker Liner Plate

Anti Sticking Blocking Coal Mine Chute Liner UHMWPE Coal Bunker Liner Plate
Anti Sticking Blocking Coal Mine Chute Liner UHMWPE Coal Bunker Liner Plate Anti Sticking Blocking Coal Mine Chute Liner UHMWPE Coal Bunker Liner Plate Anti Sticking Blocking Coal Mine Chute Liner UHMWPE Coal Bunker Liner Plate Anti Sticking Blocking Coal Mine Chute Liner UHMWPE Coal Bunker Liner Plate

Large Image :  Anti Sticking Blocking Coal Mine Chute Liner UHMWPE Coal Bunker Liner Plate

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: UHMWPE Coal Bunker Liner
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 50000 /pieces per Month

Anti Sticking Blocking Coal Mine Chute Liner UHMWPE Coal Bunker Liner Plate

Description
Item:: Coal Mine Chute Liner UHMWPE Coal Bunker Liner Plate Material: UHMW Polyethylene
Color:: Natural White, Black, Yellow Size:: 1220*2440*15mm
Thickness:: 5-200mm Density:: 0.94-0.98 G/cm3
Processing Service:: Cutting, Moulding Feature: Self Lubricating ,Non-Sticking Plastic Bunker Lining
High Light:

UHMWPE Coal Bunker Liner

,

UHMWPE Coal Bunker Liner Plate

,

Blocking Coal Mine Chute Liner UHMWPE

           Anti-sticking blocking Coal Mine Chute Liner UHMWPE Coal Bunker Liner Plate


The large characteristic of the coal bunker lining is its low friction coefficient and excellent self-lubricating performance. Its dynamic friction factor is 1/2 of pa66 and pom under water lubrication conditions, second only to self-lubricating polytetrafluoroethylene (ptfe) under non-lubricated conditions. When it works in sliding or rotating condition, it is better than steel. It is better to lubricate with brass-added lubricants, so it is known as a friction material with excellent cost performance in the field of friction.
 Anti Sticking Blocking Coal Mine Chute Liner UHMWPE Coal Bunker Liner Plate 0


UHMWPE Liner Sheets Advantages:

1 Extraordinary wear-resistant,4~6 times higher than other plastic,6~9 times higher than steel,and 26 times higher than copper.


2 Highly impact strength, 10 times higher than PA6 and PP


3 Low friction coefficient (0.05~0.11) , and capable of self lubrication


4 Unattractive to foreign material,and anti sticking while sliding


5 Resistant to chemical attack



Product Specification:


UHMWPE resin is an engineering thermoplastic composed of ethylene and butadiene monomer-----under the action of catalyst. The viscosity average molecular weight of UHMWPE is more than 1.5 million---7 million, and it is called "The Fantastic Plastic".


 Product Name

  Ultra-high Molecular Weight Polyethylene UHMWPE Sheet
 Material

 Ultra-high Molecular Weight Polyethylene





 Size



1200*2400 mm,1200*4000 mm ,12100*3100 mm
size can also be cut into small piece depend on your usage


 Thickness

  5-200 mm


Density

  0.94-0.98 g/cm3



Water Absorption

<0.01%

Impact Strength


≥140 KJ/m2


Tensile strength (23°C in air)

22 Mpa

Breaking strength 42 Mpa
Temperature resistance -269°C to +90°C


Anti Sticking Blocking Coal Mine Chute Liner UHMWPE Coal Bunker Liner Plate 1

UHMW bulk liner is a high-quality engineering plastic that is commonly used in bulk material handling applications. It offers excellent resistance to wear and has a very low coefficient of friction that allows materials to flow freely across its surface.


 Anti Sticking Blocking Coal Mine Chute Liner UHMWPE Coal Bunker Liner Plate 2

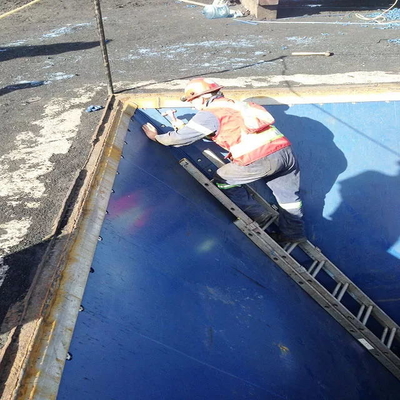

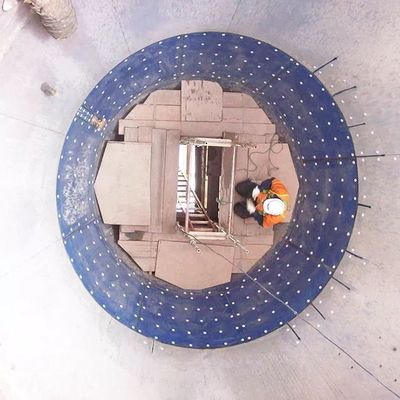

Coal Bunker Liner Install:


We have 6 construction teams with years of experience ,which can provide coal bunker liner plate installation service for you anytime.



Anti Sticking Blocking Coal Mine Chute Liner UHMWPE Coal Bunker Liner Plate 3



UHMWPE Liner Application:


1. Chemical Engineering: Corrosion and wear resistantance mechanical parts
2. Thermal power: coal handling, storage of coal, warehousing chute lining
3. Coal processing: sieve plate, filter, U-underground coal chute
4. Concrete: cement raw and finished product silo silo lining
5. Grain: food storage or chute lining
6. Mining: sieve plate, chute linings, wear anti-bonding part
7. Food industry: star-shaped wheel, transmission timing bottle screw, bearings, guide



Company Profile:


   Tangyin Taixing Engineering Plastic Co., Ltd. is located in Tengfei road, Yigou town, Tangyin county, Henan. We have gained many professional certificates with 20 years of experience.

   We are always dedicated to Providing high-performance goods and Producing new products for our customers. Mainly produce and sell UHMWPE sheet, UHMWPE Liner Sheet,Conveyor Roller ,Cutting board, Outrigger pad, ground mat. Our products sell well in domestic and international markets, such as the United States,Australia, Singapore, Pakistan, Thailand,South America etc, and are favorably appraised by clients.
