Ultra High Molecular Weight Polyethylene Plastic Dump Truck Bed Liner Sheet

Ultra High Molecular Weight Polyethylene Plastic Dump Truck Bed Liner Sheet
Ultra High Molecular Weight Polyethylene Plastic Dump Truck Bed Liner Sheet Ultra High Molecular Weight Polyethylene Plastic Dump Truck Bed Liner Sheet Ultra High Molecular Weight Polyethylene Plastic Dump Truck Bed Liner Sheet Ultra High Molecular Weight Polyethylene Plastic Dump Truck Bed Liner Sheet

Large Image :  Ultra High Molecular Weight Polyethylene Plastic Dump Truck Bed Liner Sheet

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: UHMWPE Plastic Dump Truck Bed
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 50000 /pieces per Month

Ultra High Molecular Weight Polyethylene Plastic Dump Truck Bed Liner Sheet

Description
Item:: UHMWPE Plastic Dump Truck Bed Liner Sheet Material: UHMW Polyethylene
Color:: Natural White, Black, Yellow Size:: 1220*2440
Thickness:: 5-200mm Density:: 0.94-0.98 G/cm3
Processing Service:: Cutting, Moulding Feature: Self Lubricating ,Non-Sticking Plastic Bunker Lining
High Light:

UHMWPE Plastic Dump Truck Bed

,

Plastic Dump Truck Bed Liner Sheet

,

Ultra High Molecular Weight Polyethylene Plastic

            Ultra-High Molecular Weight Polyethylene Plastic Dump Truck Bed Liner Sheet


The UHMWPE truck bed liner is the best supporting facilities to protect the truck with the feature of non-stick, fast unloading, wear resistance and corrosion resistance. UHMWPE chute liners are provide the fast and stable deliver of coal, cement, wheat, sugar and other powder and granular product.


 Ultra High Molecular Weight Polyethylene Plastic Dump Truck Bed Liner Sheet 0

UHMWPE Liner Sheets Advantages:

1 Extraordinary wear-resistant,4~6 times higher than other plastic,6~9 times higher than steel,and 26 times higher than copper.


2 Highly impact strength, 10 times higher than PA6 and PP


3 Low friction coefficient (0.05~0.11) , and capable of self lubrication


4 Unattractive to foreign material,and anti sticking while sliding


5 Resistant to chemical attack



Product Specification:


UHMW-PE plates are manufactured by advanced manufacturing technology and process, 100% pure new raw materials, which has high molecular weight, better wear resistance. Because the production UHMW-PE plates are manufactured numerical control hot press automatic control system, the plate is more smooth, bright and clean.



 Product Name

 UHMWPE Polyethylene Plastic Dump Truck Bed Liner Sheet
 Material

 Ultra-high Molecular Weight Polyethylene





 Size



1200*2400 mm,1200*4000 mm ,12100*3100 mm
size can also be cut into small piece depend on your usage


 Thickness

  5-200 mm


Density

  0.94-0.98 g/cm3



Water Absorption

<0.01%

Impact Strength


≥140 KJ/m2


Tensile strength (23°C in air)

22 Mpa

Breaking strength 42 Mpa
Temperature resistance -269°C to +90°C


Ultra High Molecular Weight Polyethylene Plastic Dump Truck Bed Liner Sheet 1

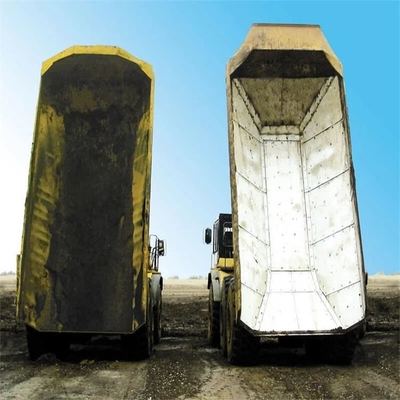

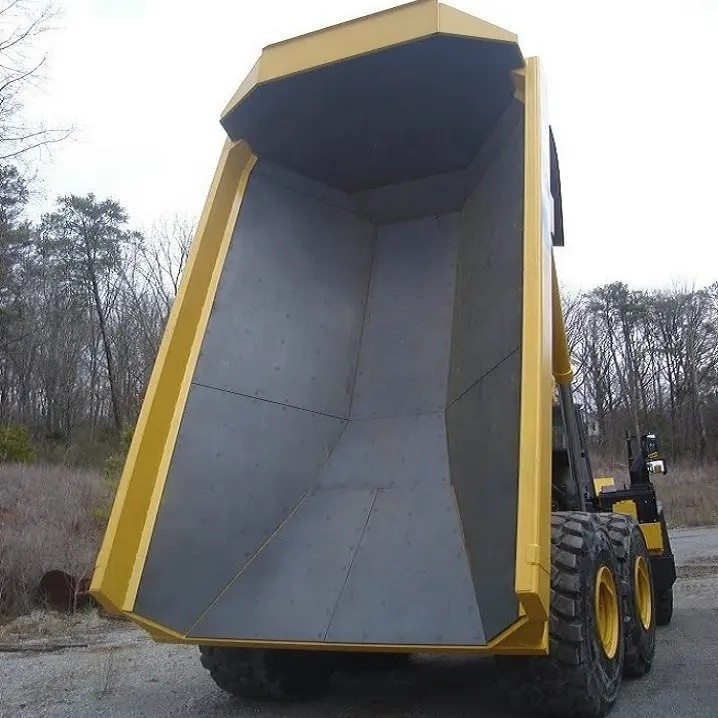

The coefficient of sliding friction is only 0.11, and it has excellent skid-increasing performance.Dump truck liner can significantly increase the sliding of materials such as earth and coal so that unload more easily and comfortable, less labor intensity.




 Ultra High Molecular Weight Polyethylene Plastic Dump Truck Bed Liner Sheet 2


UHMWPE Truck Bed Liner Application:


UHMWPE is used in applications requiring high abrasion resistance and non-stick qualities.



Mining Liners for:
Conveyors, Truck beds, Dragline buckets, Shovels, Front loading buckets, Scrapers, Excavator buckets.



Coal Preparation Liners for:
Chutes, Hoppers, Bunkers, Launderer parts, Conveyor skirting, Conveyor troughs, Coal and Ore.



Transportation:
Dump truck lining, Ship Hold Liners, Rail car liners, Conveyor liners.



Bulk Material Handling:
Grain, Coal, Sand, Gravel, Urea Phosphates, Wood Chips, Kaolin Powder, Soap Powder, Dry Fertilizer, Foundry Sand, Soda Ash, Gypsum Barite, Dry Cement, Chemical Powder, Fly Ash & Bottom Ash.



FAQ:


  1. Are you real manufacturer?

we are real manufacturer of UHMWPE Products, our factory located in Tangyin of China, we welcome customer from all over the world to visit us and build longer term business.


2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;



3.what can you buy from us?

HDPE Sheets, 2 Color HDPE, Ground Protection Mats, UHMWPE Sheets, Plastic Sheets.



4. why should you buy from us not from other suppliers?
We are a manufacturer specializing in the production of HDPE/UHMWPE sheets. We have more than 20  years of production experience. We understand your technical requirements, can immediately answer whether it can be done, and can easily sample the guests.
