Self Lubricating UHMWPE Hopper Liner Super Slide Plastic Dump Truck Bed

Self Lubricating UHMWPE Hopper Liner Super Slide Plastic Dump Truck Bed
Self Lubricating UHMWPE Hopper Liner Super Slide Plastic Dump Truck Bed Self Lubricating UHMWPE Hopper Liner Super Slide Plastic Dump Truck Bed Self Lubricating UHMWPE Hopper Liner Super Slide Plastic Dump Truck Bed Self Lubricating UHMWPE Hopper Liner Super Slide Plastic Dump Truck Bed

Large Image :  Self Lubricating UHMWPE Hopper Liner Super Slide Plastic Dump Truck Bed

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: UHMWPE Hopper Liner
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 50000 /pieces per Month

Self Lubricating UHMWPE Hopper Liner Super Slide Plastic Dump Truck Bed

Description
Item:: UHMWPE Hopper Liner Super-slide Plastic Dump Truck Bed Material: UHMW Polyethylene
Color:: Natural White, Black, Yellow Size:: 1220*2440
Thickness:: 5-200mm Density:: 0.94-0.98 G/cm3
Processing Service:: Cutting, Moulding Feature: Self Lubricating ,Non-Sticking Plastic Bunker Lining
High Light:

UHMWPE Hopper Liner

,

Self Lubricating UHMWPE Liner

,

UHMWPE plastic hopper liners

         Self-lubricating UHMWPE Hopper Liner Super-slide Plastic Dump Truck Bed

UHMWPE Hopper Liner Super-slide Plastic Dump Truck Bed

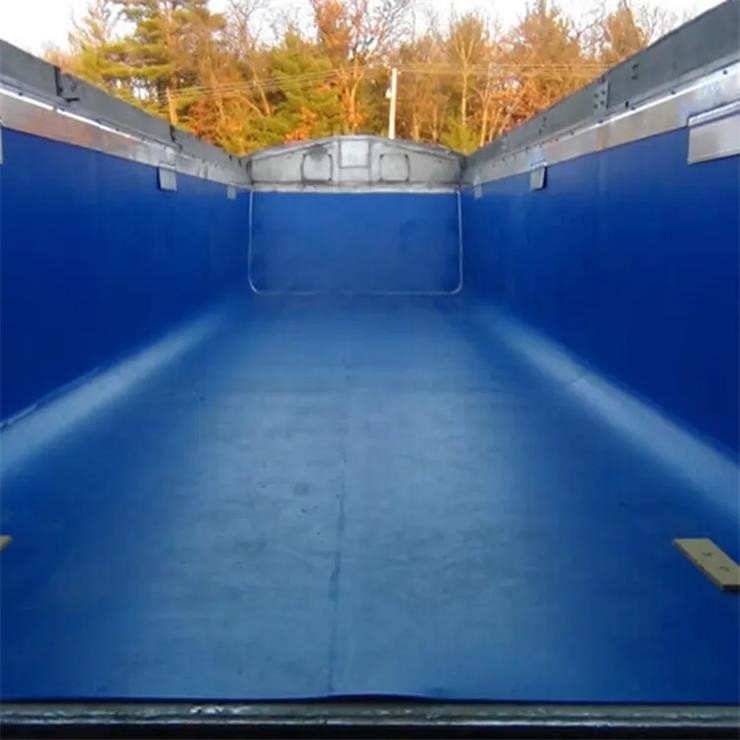

UHMWPE dump truck bed liners solve the problem of arching blockage and bridge blockage caused by material agglomeration, bridging, or freezing during the storage and transportation of silos, hoppers, conveying chutes, and similar equipment in many power plants, coal mines, vehicle transportation, and other industries. It leads to a halt in production, wastes energy, and involves a series of safety issues in production.


 Self Lubricating UHMWPE Hopper Liner Super Slide Plastic Dump Truck Bed 0

UHMWPE Liner Sheets Advantages:

1 Extraordinary wear-resistant,4~6 times higher than other plastic,6~9 times higher than steel,and 26 times higher than copper.


2 Highly impact strength, 10 times higher than PA6 and PP


3 Low friction coefficient (0.05~0.11) , and capable of self lubrication


4 Unattractive to foreign material,and anti sticking while sliding


5 Resistant to chemical attack



Product Specification:


UHMW-PE plates are manufactured by advanced manufacturing technology and process, 100% pure new raw materials, which has high molecular weight, better wear resistance. Because the production UHMW-PE plates are manufactured numerical control hot press automatic control system, the plate is more smooth, bright and clean.



 Product Name

 UHMWPE Polyethylene Plastic Dump Truck Bed Liner Sheet
 Material

 Ultra-high Molecular Weight Polyethylene





 Size



1200*2400 mm,1200*4000 mm ,12100*3100 mm
size can also be cut into small piece depend on your usage


 Thickness

  5-200 mm


Density

  0.94-0.98 g/cm3



Water Absorption

<0.01%

Impact Strength


≥140 KJ/m2


Tensile strength (23°C in air)

22 Mpa

Breaking strength 42 Mpa
Temperature resistance -269°C to +90°C


Self Lubricating UHMWPE Hopper Liner Super Slide Plastic Dump Truck Bed 1

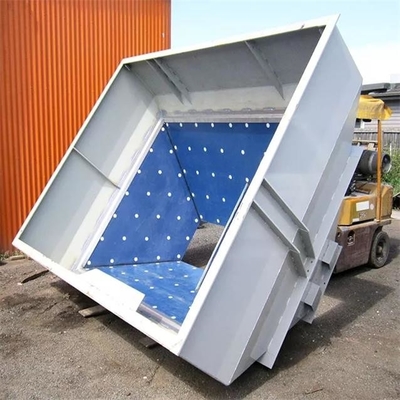

UDifferent installation methods may be applied for the PE 1000 / PE-UHMW sheets - Bulk Materials Liner as it offers a variety of cost-effective solutions, from simple bolting to rubber backed stick in tyPE liners, space frame construction and even welded drop in liners for manufactured chutes.




 Self Lubricating UHMWPE Hopper Liner Super Slide Plastic Dump Truck Bed 2


UHMWPE Truck Bed Liner Application:


UHMWPE is used in applications requiring high abrasion resistance and non-stick qualities.



Mining Liners for:
Conveyors, Truck beds, Dragline buckets, Shovels, Front loading buckets, Scrapers, Excavator buckets.



Coal Preparation Liners for:
Chutes, Hoppers, Bunkers, Launderer parts, Conveyor skirting, Conveyor troughs, Coal and Ore.



Transportation:
Dump truck lining, Ship Hold Liners, Rail car liners, Conveyor liners.



Bulk Material Handling:
Grain, Coal, Sand, Gravel, Urea Phosphates, Wood Chips, Kaolin Powder, Soap Powder, Dry Fertilizer, Foundry Sand, Soda Ash, Gypsum Barite, Dry Cement, Chemical Powder, Fly Ash & Bottom Ash.



FAQ:


Q: What color of the UHMWPE sheet you can produce ?

A: We can produce red ,yellow,blue,black,green ,gray ,double color and so on .we can produce others colors according to your requirement too.



Q: How can i get the sample ?And what's your sample times?

A: Small size of the sample is free.
And we can send the sample by EMS,DHL,TNT,UPS,FedEx. By air. By ship.Just choose the most appropriate one.
For our existing samples--1 day.; For customized samples--5 days



Q: Could you provide product customization service?

A: Yes, and it's better to get your drawing or idea of it.



Q: What is your main products?



A: UHMWPE/HDPE/LDPE sheet, UHMWPE belt conveyor roller, PE chopping board, HDPE ground mat,UHMWPE outrigger pad. Etc.
