Customization Plastic Outrigger Pads Crane Leg Support Mat

Customization Plastic Outrigger Pads Crane Leg Support Mat
Customization Plastic Outrigger Pads Crane Leg Support Mat Customization Plastic Outrigger Pads Crane Leg Support Mat Customization Plastic Outrigger Pads Crane Leg Support Mat Customization Plastic Outrigger Pads Crane Leg Support Mat Customization Plastic Outrigger Pads Crane Leg Support Mat Customization Plastic Outrigger Pads Crane Leg Support Mat

Large Image :  Customization Plastic Outrigger Pads Crane Leg Support Mat

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: PE Outrigger Pad
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 50000 /Pieces per Month

Customization Plastic Outrigger Pads Crane Leg Support Mat

Description
Item: Plastic Outrigger Material: PE Virgin 100%
Color: Yellow,Black,Customized Dimension: 400*400*40 Mm,500*500*50 Mm,600*600*60 Mm
Thickness: 30-100 Mm Processing Service: Cutting, Moulding, CNC
Usage: Supporting Legs Of The Construction Machinery, And Play A Supporting Role
High Light:

customization plastic outrigger pads

,

crane leg support plastic outrigger pads

,

customization crane mats plastic

Made in China Plastic Outrigger Pads Accept Customization



Plastic crane outrigger pads are used under the support legs of heavy cranes, crawler cranes, boom pumps, concrete pumps, fire trucks, utility trucks, tree trimmers, any type of aerial equipment, etc. Make the machine work safely!

Customization Plastic Outrigger Pads Crane Leg Support Mat 0

Benefits of Crane Otrigger Pads:

  • Work in sub zero temperatures.
  • Easy to mount, replace.
  • Reduced downtime.
  • Lower maintenance costs.
  • Durable & Long Lasting.
  • Cost Efficient compared to Steel or Aluminu
  • Safer to use in the field compared to other wood based pads.



Product Specification:




Size Load Capacity Load Spread Area
300*300*30mm 5 Ton 0.09 m²
400*400*40mm 10 Ton 0.16 m²
500*500*50mm 18 Ton 0.25 m²
600*600*60mm 25 Ton 0.36 m²
800*800*80mm 35 Ton 0.64 m²
1000*1000*100mm 80 Ton 1.00 m²
1200*1200*100mm 160 Ton 1.44 m²
1500*1500*100mm 200 Ton 2.25m²


Customization Plastic Outrigger Pads Crane Leg Support Mat 1

Crane outrigger pads are made from a high  density polyethylene. This means they will not splinter, crack, are non-conductive and will not absorb water. They are easy to install and provide a safe working environment for heavy equipment with outrigger arms.


Customization Plastic Outrigger Pads Crane Leg Support Mat 2



Plastic Outrigger Pads Application :

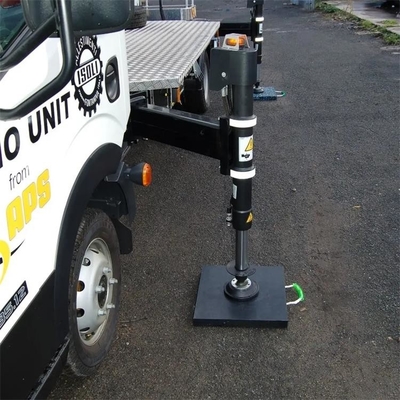

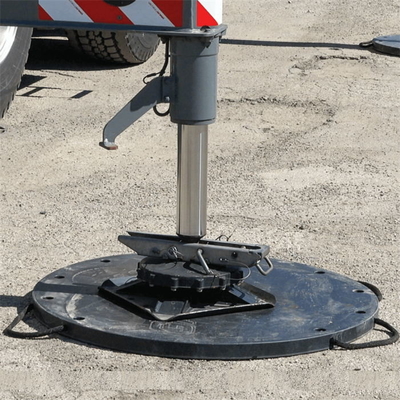

outrigger pads are widely used in various industries and applications, such as mobile cranes, aerial lifts, digger derricks, concrete pumpers, boom trucks, and so on. They can improve the stability and safety of the vehicles and cranes by distributing the load evenly over a large area and preventing sinking or sliding. They can also protect the ground from damage and reduce the environmental impact.
Customization Plastic Outrigger Pads Crane Leg Support Mat 3

FAQ :


 1.Q: Are you trading company or manufacturer ?
 A: We are an industry and trade integrated company, we have our own factory and foreign trade sales team, so, we can process the drawings you provide, to provide you with a competitive price.


2.Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.


3.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.


4.Q: Is there any warranty on the quality of your products ?
A: Please don't worry about that, we have 20 years of experience in producing PE products, our products widely used in Europe, the America and other countries.


5.Q:What about the after-sales service?
A: We have years of guaranteed life, if our products have any problems, you can ask the feedback of our product termly, we will fix it for you.
