Engineering Plastic Black Round Ground Bearing HDPE Pump Truck Outrigger Pad

Engineering Plastic Black Round Ground Bearing HDPE Pump Truck Outrigger Pad
Engineering Plastic Black Round Ground Bearing HDPE Pump Truck Outrigger Pad Engineering Plastic Black Round Ground Bearing HDPE Pump Truck Outrigger Pad Engineering Plastic Black Round Ground Bearing HDPE Pump Truck Outrigger Pad Engineering Plastic Black Round Ground Bearing HDPE Pump Truck Outrigger Pad

Large Image :  Engineering Plastic Black Round Ground Bearing HDPE Pump Truck Outrigger Pad

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: HDPE Pump Truck Outrigger Pad
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 50000 /Pieces per Month

Engineering Plastic Black Round Ground Bearing HDPE Pump Truck Outrigger Pad

Description
Item:: UHWM PE Round Outrigger Pad Mobile Truck Plastic Foot Pads Material:: PE Virgin 100%
Dimension:: Dia 800-1200 Mm Thickness: 50mm-80mm
Shape:: Round Processing Service::: Cutting, Moulding, CNC
Usage: Supporting Legs Of The Construction Machinery, And Play A Supporting Role
High Light:

HDPE Pump Truck Outrigger Pad

,

Black crane truck outrigger pads

,

Round crane truck outrigger pads

Black Round Ground Bearing HDPE Pump Truck Outrigger Pad

Engineering Plastic Black Round Ground Bearing HDPE Pump Truck Outrigger Pad
outrigger pads have all the physical characteristics of high quality HDPE.Super wear resistance, six times that of steel; Good impact resistance, the part of the emblem with the passage of time to lose the impact strength; Excellent elongation rate, under extreme load will only bend but not break; Self-lubricating function, so easy to clean; Resistant to corrosion and other chemicals, ultra high load, up to a million pounds.

Engineering Plastic Black Round Ground Bearing HDPE Pump Truck Outrigger Pad 0

Benefits of Crane Otrigger Pads:
Work in sub zero temperatures.
Easy to mount, replace.
Reduced downtime.
Lower maintenance costs.
Durable & Long Lasting.
Cost Efficient compared to Steel or Aluminu
Safer to use in the field compared to other wood based pads.

Product Specification:




Size Load Capacity Weight
800*50mm 35Ton 25kg
800*60mm 40 Ton 30 kg
900*50mm 45 Ton 30 kg
900*60mm 50 Ton 35 kg
1000*50mm 55 Ton 29.25kg
1000*60mm 60Ton 40 kg
1000*70mm 75 Ton 50.75kg
1000*80mm 80 Ton 61.5kg
1200*60mm 90 Ton 66.4kg
1200*70mm 110 Ton 77.45kg


Engineering Plastic Black Round Ground Bearing HDPE Pump Truck Outrigger Pad 1

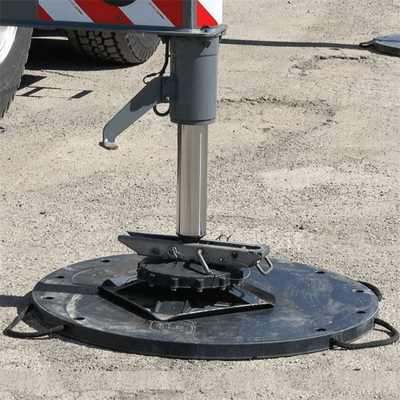

Plastic crane outrigger pads are used under the support legs of heavy cranes, crawler cranes, boom pumps, concrete pumps, fire trucks, utility trucks, tree trimmers, any type of aerial equipment, etc. Make the machine work safely!

Engineering Plastic Black Round Ground Bearing HDPE Pump Truck Outrigger Pad 2


 Plastic Crane Outrigger Pads Features:


* More Stable
UHMW outrigger pads is made by moulding press process craft. the thickness can be customized and as thick as 200mm. It is super durable, it will not change the shape and thickness even after decades. The surface remain flat under extrem high loading capacity.

* Long lasting service life
One outrigger pad can be used forever!​ Because of the excellent wear resistance and strong structure, our pads will not warping, splinter, bend or any other damage.

* Waterproof, Anti chemical
UHMW polyethylene water absorption rate less than 0.01%. It can be used in any weather, due to its chemical resistance features, it also can be used in critical working site.


Engineering Plastic Black Round Ground Bearing HDPE Pump Truck Outrigger Pad 3



FAQ :



Q1: What color of UHMWPE plastic sheet can you make?
A1: Usually we can make a regular color, like green, blue, black, yellow, grey and so on. Or you can offer the Pantone color number for reference to produce.

Q2: What is your MOQ of UHMW PE sheet?
A2: It depends on the stock we have and the size you need.

Q3: What is your delivery time?
A3: It depends on the volume, usually it is about 7 days.

Q4: How can I get a sample?
A4: Small size sample is free, you only need to pay for the shipping cost, or you can provide your UPS, DHL, FedEx, TNT courier account to us. Customized size of sample should be charged.
