High Corrosion Resistance HDPE Plastic Marine Boat Fender Panel Impingement Plate

Certification
China Tangyin Taixing Engineering Plastics Co., Ltd. certification
China Tangyin Taixing Engineering Plastics Co., Ltd. certification
I'm Online Chat Now

High Corrosion Resistance HDPE Plastic Marine Boat Fender Panel Impingement Plate

High Corrosion Resistance HDPE Plastic Marine Boat Fender Panel Impingement Plate
High Corrosion Resistance HDPE Plastic Marine Boat Fender Panel Impingement Plate High Corrosion Resistance HDPE Plastic Marine Boat Fender Panel Impingement Plate High Corrosion Resistance HDPE Plastic Marine Boat Fender Panel Impingement Plate High Corrosion Resistance HDPE Plastic Marine Boat Fender Panel Impingement Plate

Large Image :  High Corrosion Resistance HDPE Plastic Marine Boat Fender Panel Impingement Plate

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: HDPE Boat Impingement Plate
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 50000 /pieces per Month

High Corrosion Resistance HDPE Plastic Marine Boat Fender Panel Impingement Plate

Description
Item: HDPE Dock Fender Face Pad Polyethylene Plastics Board Panel For Marine Fender Material: 100% Virgin PE
Color: Blue, Black, Yellow Size: 1220mm*2440 Mm
Thickness: 5-200mm Density: 0.94-0.98 G/cm3
Usage: Ship Alongside,port,docking
High Light:

Tangyin Taixing HDPE Boat Impingement Plate

,

Tangyin Taixing HDPE Marine Impingement Plate

,

Tangyin Taixing Plastic Marine Boat Fender Panel

             High Corrosion Resistance HDPE Plastic Marine Boat Fender Panel Impingement Plate


   Impingement Sheet(Impingement Baffle) is ideal for ship berths, waterways and lock entrances and as components in larger fender installation. It comprises a steel structure and a plurality of plastic laminated boards, wherein the plastic laminated boards are made of HDPE, each plastic laminated board is respectively and tightly fastened on the outer side surface of the steel structure through plastic board fastening screw bolts, and the plastic laminated boards are mutually matched for forming an impingement baffle part, and the impingement baffle part is in a structure with the inclined periphery and the circular arc double turning corners in the transition fit.


 High Corrosion Resistance HDPE Plastic Marine Boat Fender Panel Impingement Plate 0

PE Marine Facing Pads Advantages:

Low water absorption and not affected by temperature;

Light, anti-impact, corrosion resistance, anti-ultraviolet ray, aging resistance, low friction, non-pollution, which is a good material for fender face pad;

Stable chemical property and can endure the corrosion of all kind of corrosive medium and organic solvent in a certain range of temperature and humidity;

Superior impact resistant, noise-absorption and vibration-absorption.

Product Specification:


Marine fenders typically operate as a group of single units where the type, location and density of their installation or deployment depends on several factors including their technical specifications, berth structure, ship type, etc.


 Product Name

 HDPE Dock Fender Face Pad Polyethylene Plastics Board Panel
 Material

High DensityPolyethylene



 Size




1220*2440mm, 1200*4000mm, 1250*3100mm, 2200*1000mm, other sizes can also be customized.


 Thickness

  5-200 mm


Density

  0.94-0.98 g/cm3



Water Absorption

<0.01%

Impact Strength


≥140 KJ/m2


Compressive Strength

≥42 Mpa

Friction coefficient 0.11-0.17


High Corrosion Resistance HDPE Plastic Marine Boat Fender Panel Impingement Plate 1

Ship fender panels are processed from ultrahigh molecular weight polyethylene (UHMWPE) material, which has an extremely low coefficient of friction and excellent wear resistance, uv and ozone resistance, corrosion resistance and will not rot or crack when soaked in water for a long time.

High Corrosion Resistance HDPE Plastic Marine Boat Fender Panel Impingement Plate 2

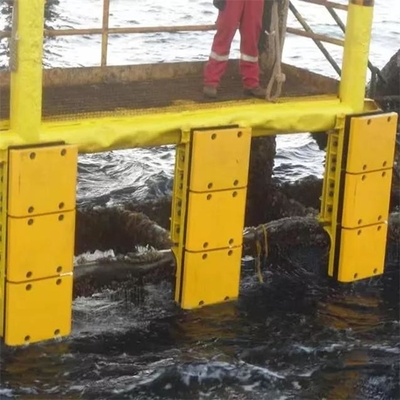

Application:


Because of the advantages, HDPE plastic Fender Panel is widely used in the world’s major ports and wharves.
1. Ships in the harbor
2. Chafing plate
3. Trucks drive piles first
4. Floating wharf
5. Slide the wall fender
6. Protection of quaywall
7. Protection of piles

High Corrosion Resistance HDPE Plastic Marine Boat Fender Panel Impingement Plate 3

FAQ:


1. Q: Are you a manufacturer or a trading company?

A: We are one of the leading PE manufacturer in China for more than 20 years.

2. Q: How long can I get the latest price?

A: We usually quote within 12 hours after we get your inquiry.

3. Q: What is your mainly products

A: UHMWPE/HDPE outrigger pads, HDPE ground protection mats, UHMWPE sheet, PE chopping board, UHMW PE belt conveyor roller, UHMWPE fender.

4. Q: Do your factory inspect the finished products?

A: Yes. Each step of products and finished products will be carried out inspection by QC department before shipping.

5. Q: How can I get sample from you

A: Just send your requirement and we will send you the samples accordingly by DHL,UPS,TNT or others
