Product Details:
|
Item: | Composite Outrigger Block HDPE Crane Pads Cribbing Sleeper Jack Mats | Material: | PE Virgin 100% |
---|---|---|---|
Color: | Yellow,Black,Customized | Dimension: | 400*400*40 Mm,500*500*50 Mm,600*600*60 Mm |
Thickness: | 30-100 Mm | Surface: | Anti-Slip, Smooth |
Usage: | Supporting Legs Of The Construction Machinery, And Play A Supporting Role | ||
High Light: | Tangyin Taixing PE Outrigger Jack Mats,Tangyin Taixing Polymer composite crane outrigger mats,Tangyin Taixing HDPE composite crane outrigger mats |

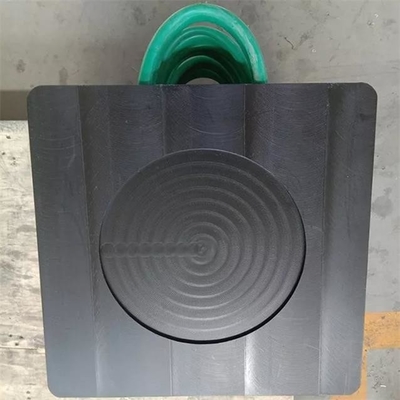

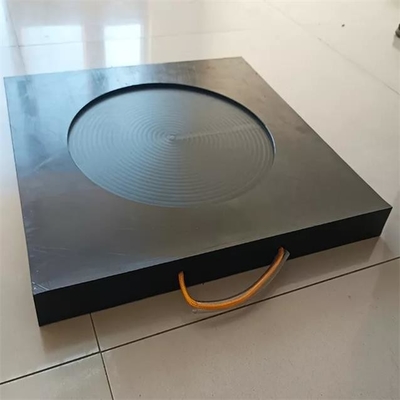

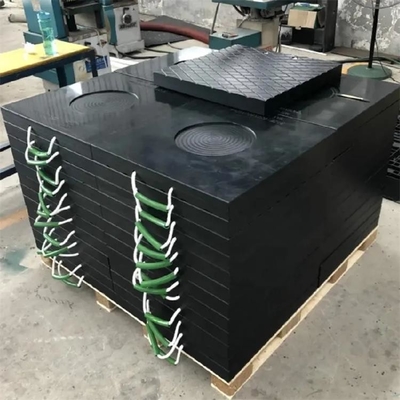

Polymer Composite Outrigger Block HDPE Crane Pads Cribbing Sleeper Jack Mats

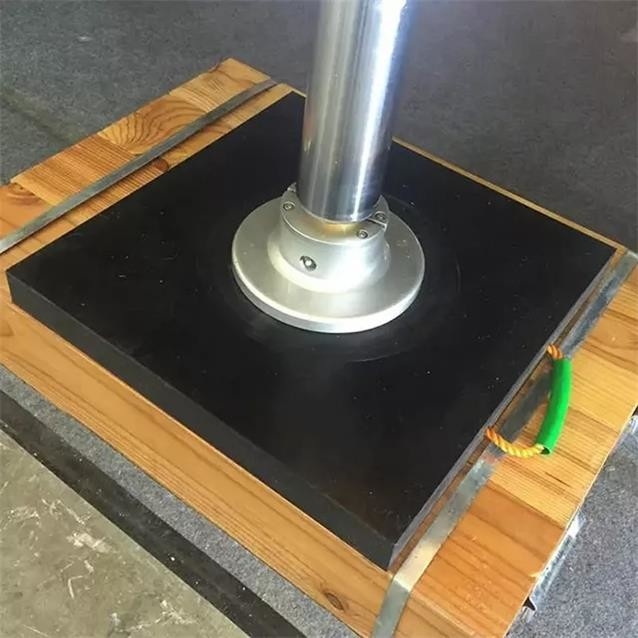

The outrigger pad is a safety tool that can be used with any device that has outriggers, lower jacks or stabilizers. When a piece of equipment (such as a crane) lifts loads or people at high places, stability is essential. The outrigger pads have different lengths, widths, thicknesses and shapes.
Benefits of Crane Otrigger Pads:
Product Specification:
Size | Load Capacity | Load Spread Area |
300*300*30mm | 5 Ton | 0.09 m² |
400*400*40mm | 10 Ton | 0.16 m² |
500*500*50mm | 18 Ton | 0.25 m² |
600*600*60mm | 25 Ton | 0.36 m² |
800*800*80mm | 35 Ton | 0.64 m² |
1000*1000*100mm | 80 Ton | 1.00 m² |
1200*1200*100mm | 160 Ton | 1.44 m² |
1500*1500*100mm | 200 Ton | 2.25m² |
Crane outrigger pads are made from a high-quality polyethylene. This means they will not splinter, crack, are non-conductive and will not absorb water. They are easy to install and provide a safe working environment for heavy equipment with outrigger arms.
PE Crane Outrigger Pads Features:
* More Stable
UHMW outrigger pads is made by moulding press process craft. the thickness can be customized and as thick as 200mm. It is super durable, it will not change the shape and thickness even after decades. The surface remain flat under extrem high loading capacity.
* Long lasting service life
One outrigger pad can be used forever! Because of the excellent wear resistance and strong structure, our pads will not warping, splinter, bend or any other damage.
* Waterproof, Anti chemical
UHMW polyethylene water absorption rate less than 0.01%. It can be used in any weather, due to its chemical resistance features, it also can be used in critical working site.
FAQ :
1.Q: Are you trading company or manufacturer ?
A: We are an industry and trade integrated company, we have our own factory and foreign trade sales team, so, we can process the drawings you provide, to provide you with a competitive price.
2.Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
4.Q: Is there any warranty on the quality of your products ?
A: Please don't worry about that, we have 20 years of experience in producing PE products, our products widely used in Europe, the America and other countries.
5.Q:What about the after-sales service?
A: We have years of guaranteed life, if our products have any problems, you can ask the feedback of our product termly, we will fix it for you.
