Product Details:
|
| Item: | High Density Polyethylene Plastic Pump Crane Outrigger Pads HDPE Trailer Jack Plate | Material: | PE Virgin 100% |
|---|---|---|---|
| Color: | Black, Yellow, Or Customized | Dimension: | Dia 800-1200 Mm |
| Thickness: | 50mm-80mm | Feature: | Durable, Anti-Slip |
| Usage: | Crane, Pump | ||
| Highlight: | PE Pump Crane Outrigger Pads,Polyethylene Crane Outrigger Pads,HDPE crane outrigger mats |
||

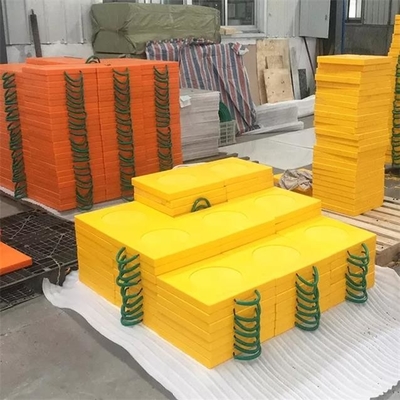

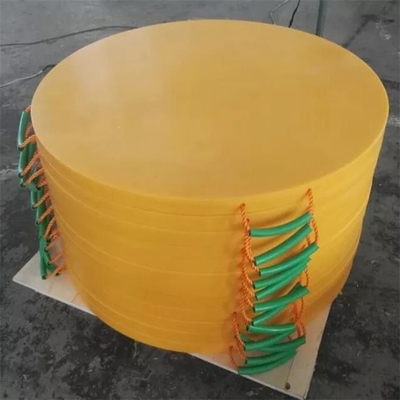

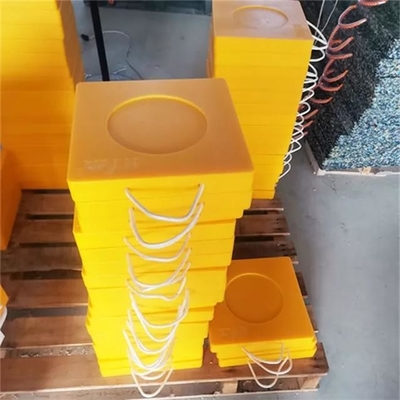

High Density Polyethylene Plastic Pump Crane Outrigger Pads HDPE Trailer Jack Plate
The outrigger pad is a safety tool that can be used with any device that has outriggers, lower jacks or stabilizers. When a piece of equipment (such as a crane) lifts loads or people at high places, stability is essential. The outrigger pads have different lengths, widths, thicknesses and shapes. When it comes to shapes, there are pros and cons depending on your choice.
Benefits of Crane Otrigger Pads:
Product Specification:
| Size | Load Capacity | Load Spread Area |
| 300*300*30mm | 5 Ton | 0.09 m² |
| 400*400*40mm | 10 Ton | 0.16 m² |
| 500*500*50mm | 18 Ton | 0.25 m² |
| 600*600*60mm | 25 Ton | 0.36 m² |
| 800*800*80mm | 35 Ton | 0.64 m² |
| 1000*1000*100mm | 80 Ton | 1.00 m² |
| 1200*1200*100mm | 160 Ton | 1.44 m² |
| 1500*1500*100mm | 200 Ton | 2.25m² |

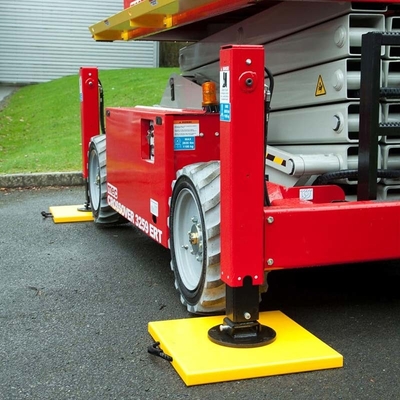

Plastic crane outrigger pads are used under the support legs of heavy cranes, crawler cranes, boom pumps, concrete pumps, fire trucks, utility trucks, tree trimmers, any type of aerial equipment, etc. Make the machine work safely!
How Do The Work For Crane Outrigger Pads :
Stable support is achieved by spreading the load from the stabiliser or outrigger foot over the large and tough surface of an outrigger pad or crane mat. The overall pressure on the ground is reduced by applying the load over a wider surface area, and effectively supporting the machinery or vehicle. Our range of outrigger pads are durable yet lightweight, making them safe and easy to handle.
FAQ :
Q1: Are you a manufacturer or a trading company?
A1: We are one of the leading PE manufacturer in China for more than 20 years.
Q2: How can I get samples for PE Jack Pad ?
A2: Normally small samples (sizes not larger than 150*150mm) could be sent for free ,only freight collect. For bigger sizes.
Q3: How can you guarantee the quality of mass production is same with the sample outrigger pad sent to me before?
A3: Our warehouse staff will leave another same sample in our company, with your company name marked on it, which our production will be based on.
Q4: What is your delivery time for the outrigger pad?
A4: It depends on the volume, usually it is about 7 days.
