4 x 8 ft Borated Polyethylene Neutron Shielding Boron-containing Polyethylene Board

Certification
China Tangyin Taixing Engineering Plastics Co., Ltd. certification
China Tangyin Taixing Engineering Plastics Co., Ltd. certification
I'm Online Chat Now

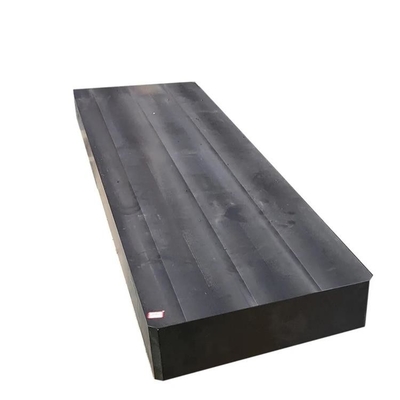

4 x 8 ft Borated Polyethylene Neutron Shielding Boron-containing Polyethylene Board

4 x 8 ft Borated Polyethylene Neutron Shielding Boron-containing Polyethylene Board
4 x 8 ft Borated Polyethylene Neutron Shielding Boron-containing Polyethylene Board 4 x 8 ft Borated Polyethylene Neutron Shielding Boron-containing Polyethylene Board 4 x 8 ft Borated Polyethylene Neutron Shielding Boron-containing Polyethylene Board 4 x 8 ft Borated Polyethylene Neutron Shielding Boron-containing Polyethylene Board

Large Image :  4 x 8 ft Borated Polyethylene Neutron Shielding Boron-containing Polyethylene Board

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: Boron-containing Polyethylene Board
Payment & Shipping Terms:
Minimum Order Quantity: 50 kilograms
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 5000 /Kilograms per Month

4 x 8 ft Borated Polyethylene Neutron Shielding Boron-containing Polyethylene Board

Description
Product Name: Boron-containing Polyethylene Board Material: 5% Borated High Density Polyethylene
Color: Natural Black Size: 1220mm*2440 Mm
Thickness: 5-200mm Elemental Boron: 5% By Weight
Usage: Nuclear Warships ,X-ray Rooms,Medical Vaults
High Light:

Boron-containing Polyethylene Board

,

4x8 ft Borated Polyethylene board

,

Borated Polyethylene Neutron Shielding

    4 x 8 ft Borated Polyethylene Neutron Shielding Boron-containing Polyethylene Board


Borated polyethylene is a product specially designed for nuclear shielding applications. The material employs 5% Boron by weight to shield neutrons in a variety of applications including high intensity X-rays, cancer treatment facilities, hospitals, nuclear submarines and nuclear power plants. Using this material as your shielding will be easier to install, maintain and use than the traditional lead lined products.


4 x 8 ft Borated Polyethylene Neutron Shielding Boron-containing Polyethylene Board 0

Boroned Polyethylene Board Advantages:

  1. Resistance to wear, because of its unique molecular structure, wear resistance is higher than general metal plastic products.
  2. Not sticky, small friction coefficient, surface tension of polarity, so no affinity with the common material, therefore not easy adhesion scaling.
  3. Small friction coefficient, good self-lubrication, small flow resistance.
  4. Chemical corrosion resistance: resistant to sulfuric acid, nitric acid and other strong oxidizer outside of acid, alkali, salt medium.
  5. Good resistance to impact, even at low temperatures, fracture by strong.
  6. Electrical insulation, good electrical insulation, high insulation resistance.



Product Specification:


While using a Polyethylene product may seem unusual, it performs as good or better than lead weighing many times as much. borated polyethylene is also lower in cost than most lead materials.



Project Unit Test Result
Notched Izod Impact ft. lbs/in.2 No Break
Vicat Softening Temp. ºC (ºF) 89ºC (192ºF)
Tensile Strength @ Break % >140
Elongation @ Yield p.s.i. >300
Shore Harness ShoreD 64
Flexural Modulus p.s.i. 3000

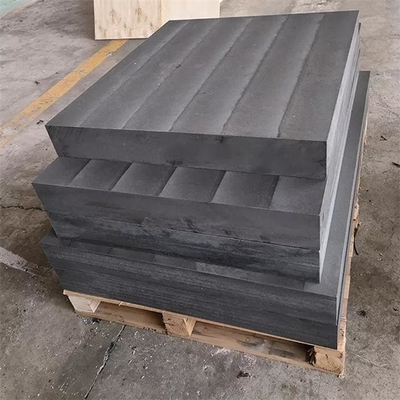

4 x 8 ft Borated Polyethylene Neutron Shielding Boron-containing Polyethylene Board 1


standard boron content ranges from 2% to 30%, which can be customized according to customer use and needs. Boron carbide, boron trioxide, borax, boric acid, lead powder, lithium carbonate, etc. can be added to it.



Length x Width x Thickness ( mm ) Length x Width x Thickness (mm)
700 х 500 х 10 1000 х 500 х 10
700 х 500 х 20 1000 х 500 х 20
700 х 500 х 25 1000 х 500 х 25
700 х 500 х 30 1000 х 500 х 30
700 х 500 х 40 1000 х 500 х 40
700 х 500 х 50 1000 х 500 х 50
700 х 500 х 60 1000 х 500 х 60
700 х 500 х 65 1000 х 500 х 65
700 х 500 х 70 1000 х 500 х 70

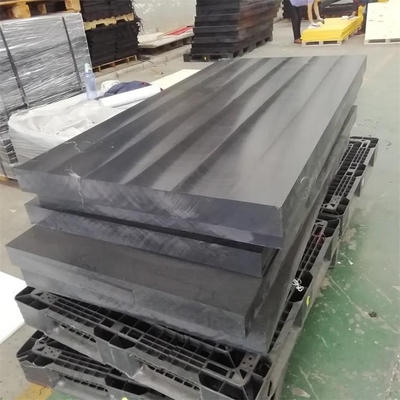

4 x 8 ft Borated Polyethylene Neutron Shielding Boron-containing Polyethylene Board 2





Why Choose Boron-polyethylene board :


First of all, borated polyethylene is used in the nuclear power industry — to protect employees from radiation caused by:

  • fast and thermal neutrons;
  •  alpha and gamma radiation (primary and secondary).

Speaking generally, almost all structural divisions of nuclear power need borated polyethylene sheets:

  • nuclear power plants;
  • nuclear - powered ships, etc.

BPE sheets with the right distance from the source of ionizing radiation, dimensions, boron concentration and some other indicators can both delay background radiation and active radiation by 100%, and reduce their intensity to health-safe values.

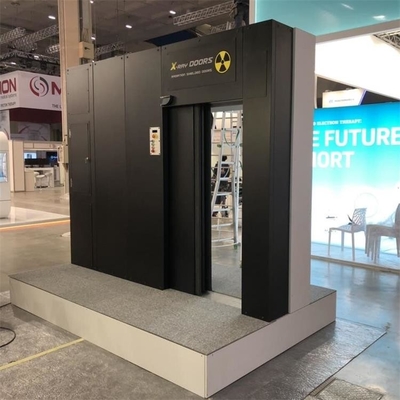

The second area of application of borated polyethylene is medical institutions — where there is a risk of radiation exposure: X-ray rooms, treatment rooms using fast neurons, rooms for fluorography, radiation therapy for cancer, etc.



The third area of demand is the creation of a safe environment in laboratories using radioactive installations and/or components.



Finally, borated polyethylene boards are purchased by ordinary citizens for household purposes if their homes are located near radio-emitting objects or the radio background is increased due to poor-quality building materials of walls, ceiling, etc.





FAQ:


1. Q: Are you a manufacturer or a trading company?

A: We are one of the leading PE manufacturer in China for more than 20 years.

2. Q: How long can I get the latest price?

A: We usually quote within 12 hours after we get your inquiry.

3. Q: What is your mainly products

A: UHMWPE/HDPE outrigger pads, HDPE ground protection mats, UHMWPE sheet, PE chopping board, UHMW PE belt conveyor roller, UHMWPE fender.

4. Q: Do your factory inspect the finished products?

A: Yes. Each step of products and finished products will be carried out inspection by QC department before shipping.

5. Q: How can I get sample from you

A: Just send your requirement and we will send you the samples accordingly by DHL,UPS,TNT or others
