4ft.W X 8ft.L Diamond Plate Tread Design HDPE Ground Protection Mats Clear

4ft.W X 8ft.L Diamond Plate Tread Design HDPE Ground Protection Mats Clear
4ft.W X 8ft.L Diamond Plate Tread Design HDPE Ground Protection Mats Clear 4ft.W X 8ft.L Diamond Plate Tread Design HDPE Ground Protection Mats Clear 4ft.W X 8ft.L Diamond Plate Tread Design HDPE Ground Protection Mats Clear 4ft.W X 8ft.L Diamond Plate Tread Design HDPE Ground Protection Mats Clear

Large Image :  4ft.W X 8ft.L Diamond Plate Tread Design HDPE Ground Protection Mats Clear

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: Ground Protection Mat Clear
Payment & Shipping Terms:
Minimum Order Quantity: 100 kilograms
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 500000 /Kilograms per Month

4ft.W X 8ft.L Diamond Plate Tread Design HDPE Ground Protection Mats Clear

Description
Item:: Diamond Plate Tread Design HDPE Ground Protection Mat Clear Material: High Density Polyethylene
Color:: White,Customized Size:: 1250*2500 Mm, 1220*2440mm And Customized
Thickness: 12.7mm/15mm Shape: Rectangular
Feature: Waterproof,non-toxic,anti Resistant
High Light:

Ground Protection Mat Clear

,

HDPE Ground Protection Mat Clear

,

Diamond Ground Protection Mats

                Diamond Plate Tread Design HDPE Ground Protection Mat Clear



4ft.W x 8ft.L Diamond Plate Tread Design HDPE Ground Protection Mat Clear

Ground Protection Mat is made of high-density polyethylene (HDPE) with an slip-resistant diamond plate tread pattern on both sides. Used to build temporary roadways or walkways, this mat easily supports 120-ton loads to leave turf smooth, even in soft conditions. Far more effective than splintered, water-logged plywood, this mat is also safe to walk on. Field-tested in record cold and heat, this mat remains flexible to conform to ground variations.



4ft.W X 8ft.L Diamond Plate Tread Design HDPE Ground Protection Mats Clear 0

 Ground Protection Mat Feature:

  • Allows UV penetration for grass to grow
  • Rugged 3/4 inch thick recycled polyethylene
  • Bold cleat design for great traction
  • Build a roadway or working platform in minutes
  • Leave turf smooth, even in soft conditions
  • No more splintered, warped, water logged plywood
  • Simply hosing down leaves the mats clean
  • Available in both black or clear mats



Product Specification:


Clear mats let the sun shine through, which will help keep the grass greener and feature one smooth side to protect grass, concrete, and asphalt. These flexible mats provide excellent traction in wet or muddy areas.



Regular size Thickness
1220*2440mm(4'*8') 12mm load bearing reference:60 ton
15mm load bearing reference:80 ton
  20mm load bearing reference:100 ton
910*2440mm(3'*8')
610*2440mm(2'*8')
910*1830mm(3'*6')
610*1830mm(2'*6')
610*1220mm(2'*4')
1250*3100mm 20-50 mm

Physical properties

Water absorption rate <0.01%
Compressive strength ≥27 Mpa
Shore hardness 65 Shore
Heat distortion temperature  85 ℃
Embrittlement temperature <-40 ℃


4ft.W X 8ft.L Diamond Plate Tread Design HDPE Ground Protection Mats Clear 1

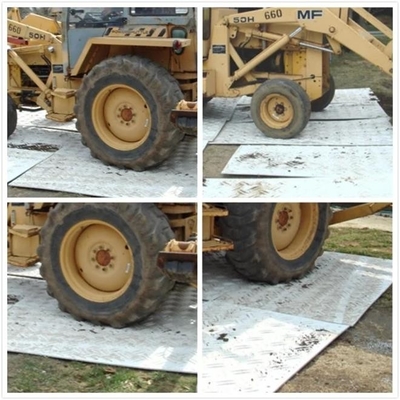

The ground protection mats we designed has handrails, which is more convenient for manual handling. At the same time, we provide two ways of linking ground protection mats, single connection and double connection, which can make the ground protection mats more stable and will not move easily,and the installation is simple.


 4ft.W X 8ft.L Diamond Plate Tread Design HDPE Ground Protection Mats Clear 2


Application:

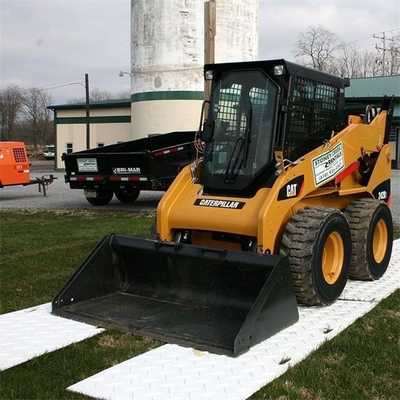

Synthetic ground protection mats offer safe access and a solid base for your machine on unpaved surfaces, such as construction sites. Even zones that must be protected against damage and - as a result - aren't easily accessible with heavy equipment (e.g. festival grounds, golf courses, cemeteries …), become perfectly accessible.



4ft.W X 8ft.L Diamond Plate Tread Design HDPE Ground Protection Mats Clear 3


About Us:


  Tangyin Taixing Engineering Plastic Co., Ltd. is located in Tengfei road, Yigou town, Tangyin county, Henan. We have gained many professional certificates with 20 years of experience.



  We are always dedicated to Providing high-performance goods and Producing new products for our customers. Mainly produce and sell UHMWPE sheet, UHMWPE Liner Sheet,Conveyor Roller ,Cutting board, Outrigger pad, ground mat. Our products sell well in domestic and international markets, such as the United States,Australia, Singapore, Pakistan, Thailand,South America etc, and are favorably appraised by clients.
