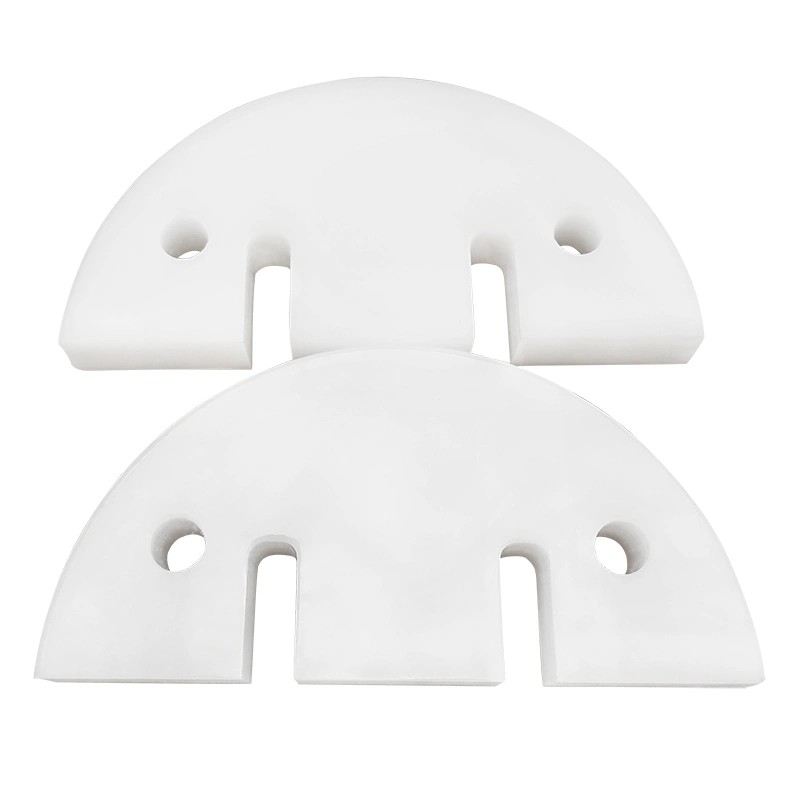

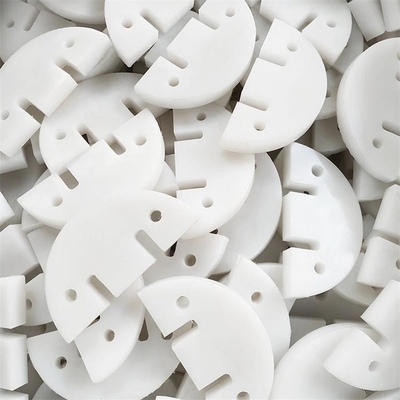

Wear Resisting UHMWPE Blade Drag Conveyor Chain Paddle For Machine

Wear Resisting UHMWPE Blade Drag Conveyor Chain Paddle For Machine
Wear Resisting UHMWPE Blade Drag Conveyor Chain Paddle For Machine Wear Resisting UHMWPE Blade Drag Conveyor Chain Paddle For Machine Wear Resisting UHMWPE Blade Drag Conveyor Chain Paddle For Machine Wear Resisting UHMWPE Blade Drag Conveyor Chain Paddle For Machine

Large Image :  Wear Resisting UHMWPE Blade Drag Conveyor Chain Paddle For Machine

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: UHMWPE Blade Drag Conveyor Chain Paddle
Payment & Shipping Terms:
Minimum Order Quantity: 100 kilograms
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 500000 /Kilograms per Month

Wear Resisting UHMWPE Blade Drag Conveyor Chain Paddle For Machine

Description
Item:: Wear-resisting UHMWPE Blade Drag Conveyor Chain Paddle Material: PE Virgin 100%
Color:: White,Green,Blue Customized Size: Customized
Thickness:: 6-200mm Feature: Wear Resistance
Application:: Corrosion-resistant And Wear-resistant Mechanical Parts
High Light:

UHMWPE Blade Drag Conveyor Chain Paddle

,

Conveyor Chain Paddle Blade Drag

,

UHMWPE Conveyor Paddle Blade Drag

Polyethylene Wear Strip T-Slot Conveyor Plastic UHMWPE Chain Guide Track Rail



Wear-resisting UHMWPE Blade Drag Conveyor Chain Paddle For Machine

UHMWPE drag paddle is a standardized machined transportation part and is an excellent highly wear-resistant material. The uhmw drag conveyor paddle also has extremely high wear resistance, excellent self-lubricating performance, high impact strength, excellent chemical resistance, non-toxic and odorless, very low water absorption, and ability to adapt to the environment.





Wear Resisting UHMWPE Blade Drag Conveyor Chain Paddle For Machine 0



Product Features:

  • Abrasion resistance
  • Excellent self-lubricating performance
  • High impact strength
  • Excellent chemical resistance
  • Non-toxic and tasteless
  • Very low water absorption



Product Specification:




 Product Name

  High Density Polyethylene Plastic HDPE Sheet
 Material

  UHMWPE/ HDPE



 Size





size can also be cut into small piece depend on your usage


 Thickness

  6-200 mm



Impact Strength

  ≥140 KJ/m2



Water Absorption

<0.01%

Compressive Strength ≥30 Mpa
Ball Indentation Hardness ≥20N/mm2
Abrasion Loss 3.8×10-4G/cm2
Heat Distortion Temperature 85°C



Wear Resisting UHMWPE Blade Drag Conveyor Chain Paddle For Machine 1



UHMWPE material has exceptionally low coefficient of friction offering superb sliding properties and is one of the best plastics for wear/abrasion resistance meanwhile tough and impact resistant even at cryogenic temperatures. As a result, it is definite that UHMW polyethylene is a wonderful engineering plastic that can solve many problems that other engineering plastics cannot.



Wear Resisting UHMWPE Blade Drag Conveyor Chain Paddle For Machine 2





Application:

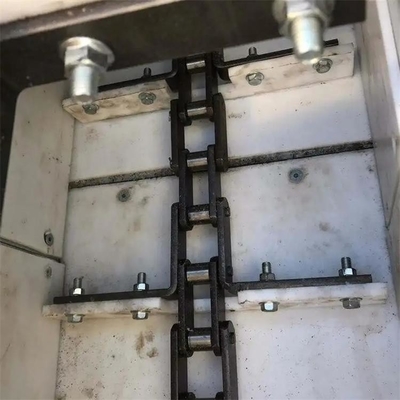

The PE Drag Conveyor  is suitable for conveyors of any shape or manufacture, can use ultra-high power or high temperature machinery for drag chain conveyor paddles, can be used for star wheels, seals, propagation fittings or other HDPE CNC machined parts.

Wear Resisting UHMWPE Blade Drag Conveyor Chain Paddle For Machine 3



FAQ:




1. Q: Are you a manufacturer or a trading company?



A: We are one of the leading PE manufacturer in China for more than 20 years.



2. Q: How long can I get the latest price?



A: We usually quote within 12 hours after we get your inquiry.



3. Q: What is your mainly products



A: UHMWPE/HDPE outrigger pads, HDPE ground protection mats, UHMWPE sheet, PE chopping board, UHMW PE belt conveyor roller, UHMWPE fender.



4. Q: Do your factory inspect the finished products?



A: Yes. Each step of products and finished products will be carried out inspection by QC department before shipping.
