Temporary HDPE Crane Foot Support Plate Jack Outrigger Pad For Construction

Certification
China Tangyin Taixing Engineering Plastics Co., Ltd. certification
China Tangyin Taixing Engineering Plastics Co., Ltd. certification
I'm Online Chat Now

Temporary HDPE Crane Foot Support Plate Jack Outrigger Pad For Construction

Temporary HDPE Crane Foot Support Plate Jack Outrigger Pad For Construction
Temporary HDPE Crane Foot Support Plate Jack Outrigger Pad For Construction Temporary HDPE Crane Foot Support Plate Jack Outrigger Pad For Construction Temporary HDPE Crane Foot Support Plate Jack Outrigger Pad For Construction Temporary HDPE Crane Foot Support Plate Jack Outrigger Pad For Construction

Large Image :  Temporary HDPE Crane Foot Support Plate Jack Outrigger Pad For Construction

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: Jack Outrigger Pad
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 50000 /Pieces per Month

Temporary HDPE Crane Foot Support Plate Jack Outrigger Pad For Construction

Description
Item: Temporary HDPE Crane Foot Support Plate Jack Outrigger Pad For Construction Material: PE Virgin 100%
Size: Dia 800-1200 Mm Shape: Round
Water Absorption: <0.01% Processing Service::: Cutting, Moulding, CNC
Usage: Cranes, Pump Trucks
High Light:

outrigger jack pads

,

Temporary HDPE crane jack pads

,

Crane outrigger jack pads

Temporary HDPE Crane Foot Support Plate Jack Outrigger Pad For Construction


Heavy duty outrigger stabilizer pad are manufactured using engineered HDPE plastic and come with industry leading features like safety texturing, radius edges and corners and safety handles. Outrigger Pads are also corrosion, moisture and chemical resistant, making them easy to clean and maintain.

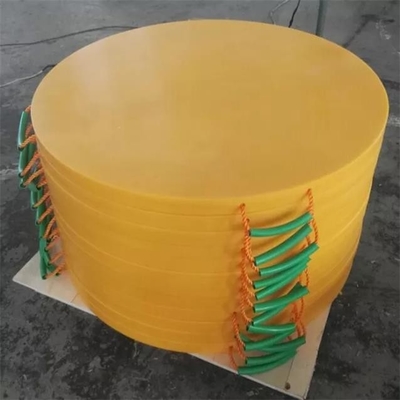

Temporary HDPE Crane Foot Support Plate Jack Outrigger Pad For Construction 0

Benefits of Crane Otrigger Pads:
Work in sub zero temperatures.
Easy to mount, replace.
Reduced downtime.
Lower maintenance costs.
Durable & Long Lasting.
Cost Efficient compared to Steel or Aluminu
Safer to use in the field compared to other wood based pads.



Product Specification:




Size Load Capacity Weight
800*50mm 35Ton 25kg
800*60mm 40 Ton 30 kg
900*50mm 45 Ton 30 kg
900*60mm 50 Ton 35 kg
1000*50mm 55 Ton 29.25kg
1000*60mm 60Ton 40 kg
1000*70mm 75 Ton 50.75kg
1000*80mm 80 Ton 61.5kg
1200*60mm 90 Ton 66.4kg
1200*70mm 110 Ton 77.45kg

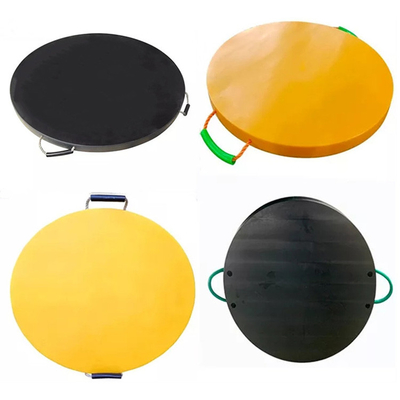

Temporary HDPE Crane Foot Support Plate Jack Outrigger Pad For Construction 1

The outrigger block is primarily an outrigger used to support large machines. It is used to distribute the weight of large aerial equipment such as cranes, concrete pumps, multi-purpose trucks, fire engines, tree shears, etc.Leg pads reduce the chance that the legs will pass through soil, asphalt, or even concrete due to the weight of the support.

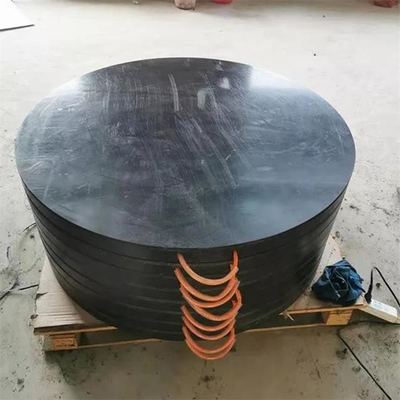

Temporary HDPE Crane Foot Support Plate Jack Outrigger Pad For Construction 2


Plastic Crane Outrigger Pads Features:


* More Stable
UHMW outrigger pads is made by moulding press process craft. the thickness can be customized and as thick as 200mm. It is super durable, it will not change the shape and thickness even after decades. The surface remain flat under extrem high loading capacity.

* Long lasting service life
One outrigger pad can be used forever!​ Because of the excellent wear resistance and strong structure, our pads will not warping, splinter, bend or any other damage.

* Waterproof, Anti chemical
UHMW polyethylene water absorption rate less than 0.01%. It can be used in any weather, due to its chemical resistance features, it also can be used in critical working site.

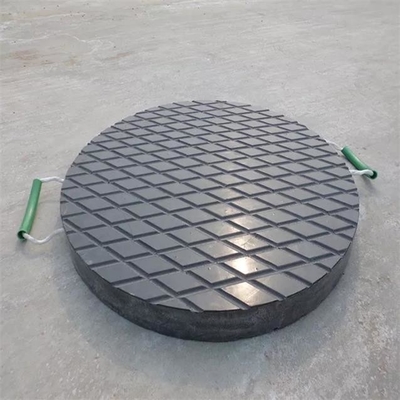

Temporary HDPE Crane Foot Support Plate Jack Outrigger Pad For Construction 3



FAQ :



Q1: Are you a manufacturer or a trading company?
A1: We are one of the leading PE manufacturer in China for more than 20 years.

Q2: How can I get samples for PE Jack Pad ?
A2: Normally small samples (sizes not larger than 150*150mm) could be sent for free ,only freight collect. For bigger sizes.

Q3: How can you guarantee the quality of mass production is same with the sample outrigger pad sent to me before?
A3: Our warehouse staff will leave another same sample in our company, with your company name marked on it, which our production will be based on.

Q4: What is your delivery time for the outrigger pad?
A4: It depends on the volume, usually it is about 7 days.
