24X24 Inch Hard Plastic HDPE Outrigger Pads Block Crane Jack Truck Foot Pad

24X24 Inch Hard Plastic HDPE Outrigger Pads Block Crane Jack Truck Foot Pad
24X24 Inch Hard Plastic HDPE Outrigger Pads Block Crane Jack Truck Foot Pad 24X24 Inch Hard Plastic HDPE Outrigger Pads Block Crane Jack Truck Foot Pad 24X24 Inch Hard Plastic HDPE Outrigger Pads Block Crane Jack Truck Foot Pad 24X24 Inch Hard Plastic HDPE Outrigger Pads Block Crane Jack Truck Foot Pad

Large Image :  24X24 Inch Hard Plastic HDPE Outrigger Pads Block Crane Jack Truck Foot Pad

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: PE Crane Jack Truck Foot Pad
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 50000 /Pieces per Month

24X24 Inch Hard Plastic HDPE Outrigger Pads Block Crane Jack Truck Foot Pad

Description
Item: Hard Plastic HDPE Outrigger Pads Block Crane Jack Truck Foot Pad Material: PE Virgin 100%
Color: Yellow,Black,Customized Dimension: 600*600*60 Mm
Shape: Square Loading Weight: 20-200 Tonnes
Surface: Anti-Slip, Smooth
High Light:

PE Crane Jack Truck Foot Pad

,

Hard Plastic HDPE Outrigger Pads

,

24X24 Inch HDPE Outrigger Pads

24 X 24 Inch Hard Plastic HDPE Outrigger Pads Block Crane Jack Truck Foot Pad

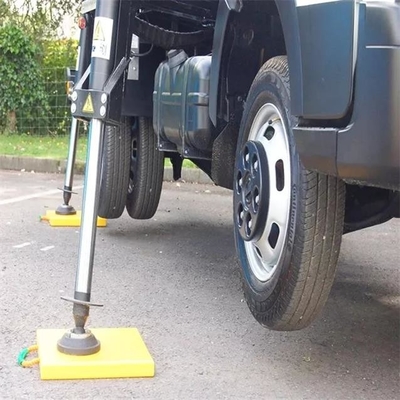

PE outrigger pads are used under the support legs of heavy cranes, crawler cranes, boom pumps, concrete pumps, fire trucks, utility trucks, tree trimmers, any type of aerial equipment, etc. Make the machine work safely!

24X24 Inch Hard Plastic HDPE Outrigger Pads Block Crane Jack Truck Foot Pad 0

Benefits of Crane Otrigger Pads:

  • Work in sub zero temperatures.
  • Easy to mount, replace.
  • Reduced downtime.
  • Lower maintenance costs.
  • Durable & Long Lasting.
  • Cost Efficient compared to Steel or Aluminu
  • Safer to use in the field compared to other wood based pads.



Product Specification:




Size Load Capacity Load Spread Area
300*300*30mm 5 Ton 0.09 m²
400*400*40mm 10 Ton 0.16 m²
500*500*50mm 18 Ton 0.25 m²
600*600*60mm 25 Ton 0.36 m²
800*800*80mm 35 Ton 0.64 m²
1000*1000*100mm 80 Ton 1.00 m²
1200*1200*100mm 160 Ton 1.44 m²
1500*1500*100mm 200 Ton 2.25m²


24X24 Inch Hard Plastic HDPE Outrigger Pads Block Crane Jack Truck Foot Pad 1

Crane outrigger pads are made from a high-quality polyethylene. This means they will not splinter, crack, are non-conductive and will not absorb water. They are easy to install and provide a safe working environment for heavy equipment with outrigger arms.
24X24 Inch Hard Plastic HDPE Outrigger Pads Block Crane Jack Truck Foot Pad 2


Plastic Crane Outrigger Pads Features:


* More Stable

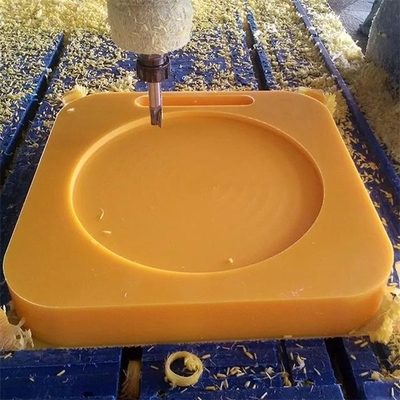

UHMW outrigger pads is made by moulding press process craft. the thickness can be customized and as thick as 200mm. It is super durable, it will not change the shape and thickness even after decades. The surface remain flat under extrem high loading capacity.

* Long lasting service life
One outrigger pad can be used forever!​ Because of the excellent wear resistance and strong structure, our pads will not warping, splinter, bend or any other damage.

* Waterproof, Anti chemical
UHMW polyethylene water absorption rate less than 0.01%. It can be used in any weather, due to its chemical resistance features, it also can be used in critical working site.


24X24 Inch Hard Plastic HDPE Outrigger Pads Block Crane Jack Truck Foot Pad 3


FAQ :


 Q1: Are you trading company or manufacturer ?
 A1: We are an industry and trade integrated company, we have our own factory and foreign trade sales team, so, we can process the drawings you provide, to provide you with a competitive price.



Q2: How can I get samples for PE Jack Pad ?

A2: Normally small samples (sizes not larger than 150*150mm) could be sent for free ,only freight collect. For bigger sizes.



Q3: How can you guarantee the quality of mass production is same with the sample outrigger pad sent to me before?
A3: Our warehouse staff will leave another same sample in our company, with your company name marked on it, which our production will be based on.


Q4:What about the after-sales service?
A4: We have years of guaranteed life, if our products have any problems, you can ask the feedback of our product termly, we will fix it for you.
