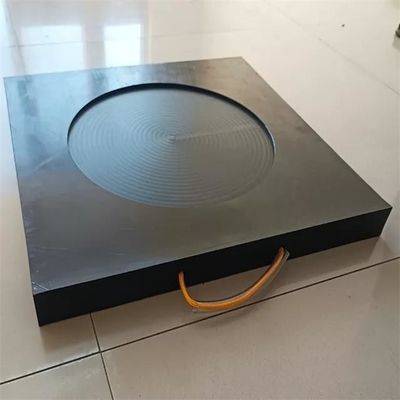

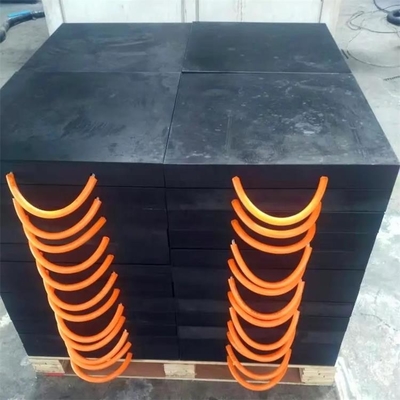

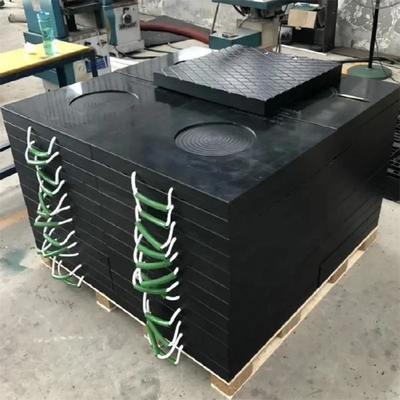

Portable Composite Polyethylene Crane Outrigger Jack Pads For Heavy Machinery

Portable Composite Polyethylene Crane Outrigger Jack Pads For Heavy Machinery
Portable Composite Polyethylene Crane Outrigger Jack Pads For Heavy Machinery Portable Composite Polyethylene Crane Outrigger Jack Pads For Heavy Machinery Portable Composite Polyethylene Crane Outrigger Jack Pads For Heavy Machinery Portable Composite Polyethylene Crane Outrigger Jack Pads For Heavy Machinery

Large Image :  Portable Composite Polyethylene Crane Outrigger Jack Pads For Heavy Machinery

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: PE Crane Outrigger Jack Pads
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 50000 /Pieces per Month

Portable Composite Polyethylene Crane Outrigger Jack Pads For Heavy Machinery

Description
Item: Portable Composite Polyethylene Crane Outrigger Jack Pads Material: PE Virgin 100%
Color: Yellow,Black,Customized Size: 400*400*40 Mm,500*500*50 Mm,600*600*60 Mm
Processing Service: Cutting, Moulding, CNC Feature: Durable, Anti-Slip
Usage: Supporting Legs Of The Construction Machinery, And Play A Supporting Role
High Light:

PE Crane Outrigger Jack Pads

,

Portable Outrigger Jack Pads

,

Polyethylene Outrigger Jack Pads

Portable Composite Polyethylene Crane Outrigger Jack Pads For Heavy Machinery



Crane outrigger pads are made from a high-quality polyethylene. This means they will not splinter, crack, are non-conductive and will not absorb water. They are easy to install and provide a safe working environment for heavy equipment with outrigger arms.



Portable Composite Polyethylene Crane Outrigger Jack Pads For Heavy Machinery 0



Benefits of Crane Otrigger Pads:



  • Work in sub zero temperatures.
  • Easy to mount, replace.
  • Reduced downtime.
  • Lower maintenance costs.
  • Durable & Long Lasting.
  • Cost Efficient compared to Steel or Aluminu
  • Safer to use in the field compared to other wood based pads.



Product Specification:




Size Load Capacity Load Spread Area
300*300*30mm 5 Ton 0.09 m²
400*400*40mm 10 Ton 0.16 m²
500*500*50mm 18 Ton 0.25 m²
600*600*60mm 25 Ton 0.36 m²
800*800*80mm 35 Ton 0.64 m²
1000*1000*100mm 80 Ton 1.00 m²
1200*1200*100mm 160 Ton 1.44 m²
1500*1500*100mm 200 Ton 2.25m²



Portable Composite Polyethylene Crane Outrigger Jack Pads For Heavy Machinery 1

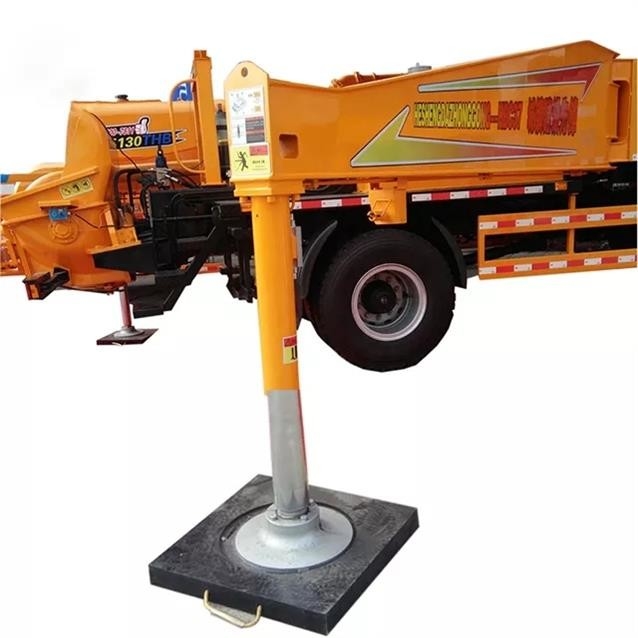

 Plastic crane outrigger pads are used under the support legs of heavy cranes, crawler cranes, boom pumps, concrete pumps, fire trucks, utility trucks, tree trimmers, any type of aerial equipment, etc. Make the machine work safely!



Portable Composite Polyethylene Crane Outrigger Jack Pads For Heavy Machinery 2



How Do The Work For Crane Outrigger Pads :


Stable support is achieved by spreading the load from the stabiliser or outrigger foot over the large and tough surface of an outrigger pad or crane mat. The overall pressure on the ground is reduced by applying the load over a wider surface area, and effectively supporting the machinery or vehicle. Our range of outrigger pads are durable yet lightweight, making them safe and easy to handle.



Portable Composite Polyethylene Crane Outrigger Jack Pads For Heavy Machinery 3



FAQ :


Q1: Are you a manufacturer or a trading company?

A1: We are one of the leading PE manufacturer in China for more than 20 years.



Q2: How can I get samples for UHMWPE Jack Pad ?

A2: Normally small samples (sizes not larger than 150*150mm) could be sent for free ,only freight collect. For bigger sizes.



Q3: How can you guarantee the quality of mass production is same with the sample outrigger pad sent to me before?

A3: Our warehouse staff will leave another same sample in our company, with your company name marked on it, which our production will be based on.



Q4: What is your delivery time for the outrigger pad?
A4: It depends on the volume, usually it is about 7 days.
