48 X 96 Inches Under Sieve Funnel UHMWPE Plastic Coal Bunker Blue Lining Board

Certification
China Tangyin Taixing Engineering Plastics Co., Ltd. certification
China Tangyin Taixing Engineering Plastics Co., Ltd. certification
I'm Online Chat Now

48 X 96 Inches Under Sieve Funnel UHMWPE Plastic Coal Bunker Blue Lining Board

48 X 96 Inches Under Sieve Funnel UHMWPE Plastic Coal Bunker Blue Lining Board
48 X 96 Inches Under Sieve Funnel UHMWPE Plastic Coal Bunker Blue Lining Board 48 X 96 Inches Under Sieve Funnel UHMWPE Plastic Coal Bunker Blue Lining Board 48 X 96 Inches Under Sieve Funnel UHMWPE Plastic Coal Bunker Blue Lining Board 48 X 96 Inches Under Sieve Funnel UHMWPE Plastic Coal Bunker Blue Lining Board

Large Image :  48 X 96 Inches Under Sieve Funnel UHMWPE Plastic Coal Bunker Blue Lining Board

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: UHMWPE Coal Bunker Liner
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 50000 /pieces per Month

48 X 96 Inches Under Sieve Funnel UHMWPE Plastic Coal Bunker Blue Lining Board

Description
Item:: Under Sieve Funnel UHMWPE Plastic Coal Bunker Blue Lining Board Material: UHMW Polyethylene
Color:: Natural White, Black, Yellow Size:: 1220*2440*15mm
Thickness:: 5-200mm Contraction Percentage: <0.4%
Feature: Self Lubricating ,Non-Sticking Plastic Bunker Lining Application: Chute Liner
High Light:

UHMWPE Coal Bunker Liner

,

UHMWPE Plastic Blue Lining Board

,

UHMWPE Coal Bunker Blue Lining Board

          Under Sieve Funnel UHMWPE Plastic Coal Bunker Blue Lining Board

48 X 96 Inches Under Sieve Funnel UHMWPE Plastic Coal Bunker Blue Lining Board

UHMWPE liner is a kind of engineering plastics with excellent properties, which has excellent properties such as impact resistance, high wear resistance, non adhesive material, corrosion resistance and so on. It can effectively prevent the congestion and bond in the coal bunker, and be widely used in many industries such as steel, coal, cement, metallurgy, power, ship industry ,etc.

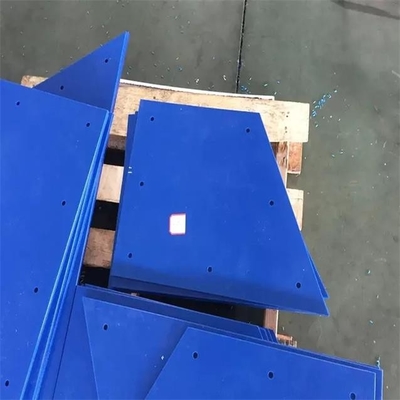

 48 X 96 Inches Under Sieve Funnel UHMWPE Plastic Coal Bunker Blue Lining Board 0


UHMWPE Liner Sheets Advantages:

1 Extraordinary wear-resistant,4~6 times higher than other plastic,6~9 times higher than steel,and 26 times higher than copper.


2 Highly impact strength, 10 times higher than PA6 and PP


3 Low friction coefficient (0.05~0.11) , and capable of self lubrication


4 Unattractive to foreign material,and anti sticking while sliding


5 Resistant to chemical attack



Product Specification:


UHMWPE resin is an engineering thermoplastic composed of ethylene and butadiene monomer-----under the action of catalyst. The viscosity average molecular weight of UHMWPE is more than 1.5 million---7 million, and it is called "The Fantastic Plastic".


 Product Name

  Ultra-high Molecular Weight Polyethylene UHMWPE Sheet
 Material

 Ultra-high Molecular Weight Polyethylene





 Size



1200*2400 mm,1200*4000 mm ,12100*3100 mm
size can also be cut into small piece depend on your usage


 Thickness

  5-200 mm


Density

  0.94-0.98 g/cm3



Water Absorption

<0.01%

Impact Strength


≥140 KJ/m2


Tensile strength (23°C in air)

22 Mpa

Breaking strength 42 Mpa
Temperature resistance -269°C to +90°C

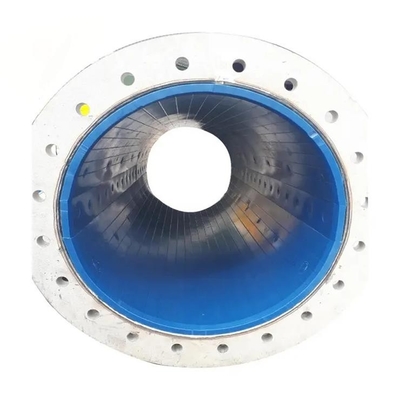

48 X 96 Inches Under Sieve Funnel UHMWPE Plastic Coal Bunker Blue Lining Board 1



 UHMW plastic liners is a common alternative for lining chutes, hoppers and silos as it helps solve liquid movement, ratholing, and arching problems. It is solid and stable, exhibits outstanding corrosion resistance and does not absorb moisture. Using in-house CNC machining equipment for fast deployment, our UHMW plastic liners is available in a variety of thicknesses and can be machined to order.

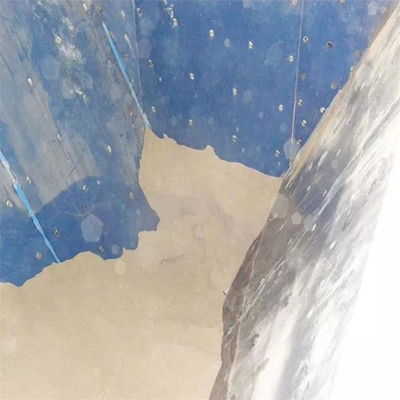

 48 X 96 Inches Under Sieve Funnel UHMWPE Plastic Coal Bunker Blue Lining Board 2




Coal Bunker Liner Install:


We have 6 construction teams with years of experience ,which can provide coal bunker liner plate installation service for you anytime.

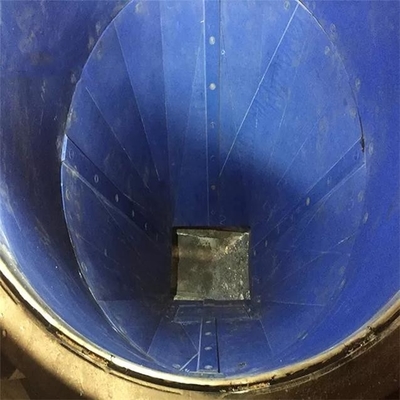

48 X 96 Inches Under Sieve Funnel UHMWPE Plastic Coal Bunker Blue Lining Board 3



UHMWPE Liner Application:


1. Chemical Engineering: Corrosion and wear resistantance mechanical parts
2. Thermal power: coal handling, storage of coal, warehousing chute lining
3. Coal processing: sieve plate, filter, U-underground coal chute
4. Concrete: cement raw and finished product silo silo lining
5. Grain: food storage or chute lining
6. Mining: sieve plate, chute linings, wear anti-bonding part
7. Food industry: star-shaped wheel, transmission timing bottle screw, bearings, guide



Company Profile:


  Q1: What color of UHMWPE dump bed liner can you make?
 A1: Usually we can make a regular color, like green, blue, black, yellow, grey and so on. Or you can offer the Pantone color number for reference to produce.



Q2: What is your MOQ of UHMWPE plastic dump truck bed liner?
A2: It depends on the stock we have and the size you need.



Q3: What is your delivery time?
A3: It depends on the volume, usually it is about 7 days.



Q4: How can I get a sample?
A4: Small size sample is free, you only need to pay for the shipping cost, or you can provide your UPS, DHL, FedEx, TNT courier account to us. Customized size of sample should be charged.
