Product Details:
|
| Item：: | UHMW Polyethylene Chute Liner Plastic Bunker Lining | Material: | UHMW Polyethylene |
|---|---|---|---|
| Color：: | Natural White, Black, Yellow | Size：: | 1220mm*2440 Mm |
| Thickness：: | 5-200mm | Density：: | 0.94-0.98 G/cm3 |
| Processing Service:: | Cutting, Moulding | Feature: | Self Lubricating ,Non-Sticking Plastic Bunker Lining |
| High Light: | UHMW polyethylene Chute Liner,UHMW Polyethylene Bunker Lining,Chute UHMWPE Liner |
||

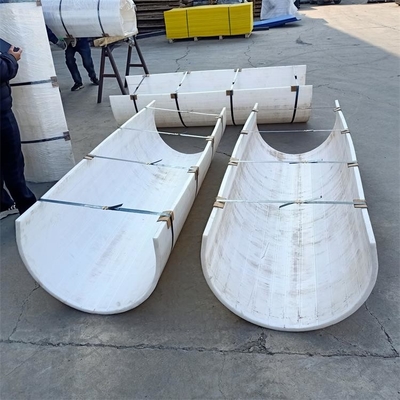

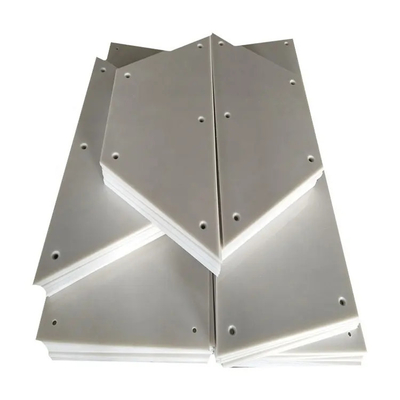

Non-sticky UHMW Polyethylene Chute Liner Plastic Bunker Lining For Coal Bunker
The large characteristic of the coal bunker lining is its low friction coefficient and excellent self-lubricating performance. Its dynamic friction factor is 1/2 of pa66 and pom under water lubrication conditions, second only to self-lubricating polytetrafluoroethylene (ptfe) under non-lubricated conditions. When it works in sliding or rotating condition, it is better than steel. It is better to lubricate with brass-added lubricants, so it is known as a friction material with excellent cost performance in the field of friction.
UHMWPE Liner Sheets Advantages:
1 Extraordinary wear-resistant,4~6 times higher than other plastic,6~9 times higher than steel,and 26 times higher than copper.
2 Highly impact strength, 10 times higher than PA6 and PP
3 Low friction coefficient (0.05~0.11) , and capable of self lubrication
4 Unattractive to foreign material,and anti sticking while sliding
5 Resistant to chemical attack
Product Specification:
UHMWPE resin is an engineering thermoplastic composed of ethylene and butadiene monomer-----under the action of catalyst. The viscosity average molecular weight of UHMWPE is more than 1.5 million---7 million, and it is called "The Fantastic Plastic".
|
Product Name |
Ultra-high Molecular Weight Polyethylene UHMWPE Sheet |
| Material |
Ultra-high Molecular Weight Polyethylene
|
|
Size
|
1200*2400 mm,1200*4000 mm ,12100*3100 mm |
|
Thickness |
5-200 mm |
|
Density |
0.94-0.98 g/cm3
|
| Water Absorption |
<0.01% |
| Impact Strength |
|
| Tensile strength (23°C in air) |
22 Mpa |
| Breaking strength | 42 Mpa |
| Temperature resistance | -269°C to +90°C |

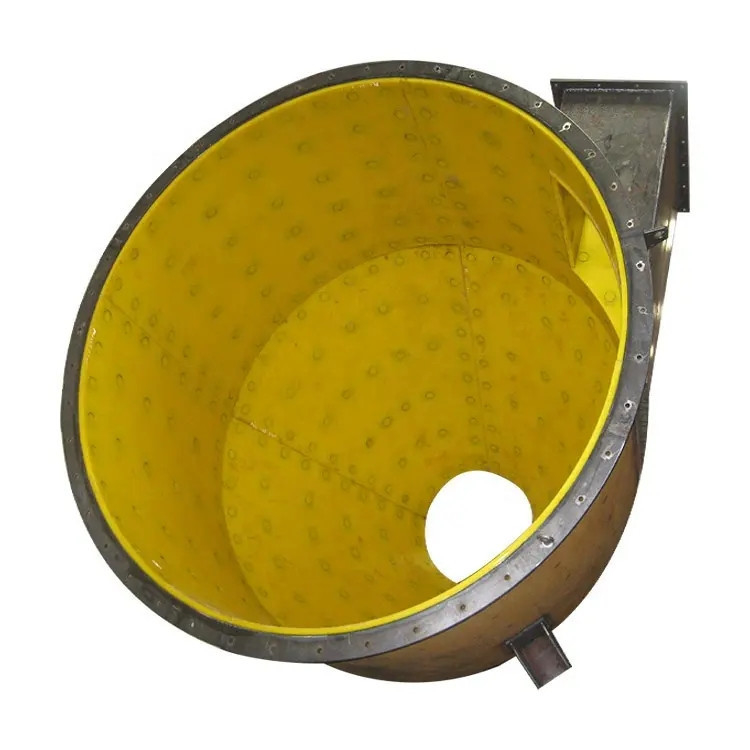

UHMW bulk liner is a high-quality engineering plastic that is commonly used in bulk material handling applications. It offers excellent resistance to wear and has a very low coefficient of friction that allows materials to flow freely across its surface.

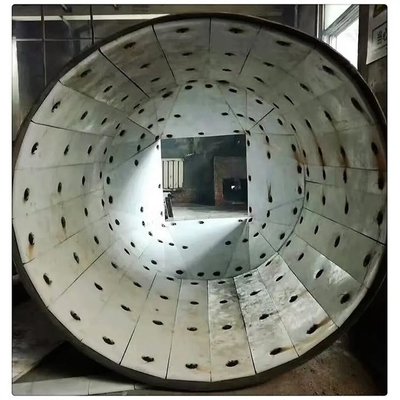

Coal Bunker Liner Install:
We have 6 construction teams with years of experience ,which can provide coal bunker liner plate installation service for you anytime.
UHMWPE Liner Application:
1. Chemical Engineering: Corrosion and wear resistantance mechanical parts
2. Thermal power: coal handling, storage of coal, warehousing chute lining
3. Coal processing: sieve plate, filter, U-underground coal chute
4. Concrete: cement raw and finished product silo silo lining
5. Grain: food storage or chute lining
6. Mining: sieve plate, chute linings, wear anti-bonding part
7. Food industry: star-shaped wheel, transmission timing bottle screw, bearings, guide
Company Profile:
Tangyin Taixing Engineering Plastic Co., Ltd. is located in Tengfei road, Yigou town, Tangyin county, Henan. We have gained many professional certificates with 20 years of experience.
We are always dedicated to Providing high-performance goods and Producing new products for our customers. Mainly produce and sell UHMWPE sheet, UHMWPE Liner Sheet,Conveyor Roller ,Cutting board, Outrigger pad, ground mat. Our products sell well in domestic and international markets, such as the United States,Australia, Singapore, Pakistan, Thailand,South America etc, and are favorably appraised by clients.
