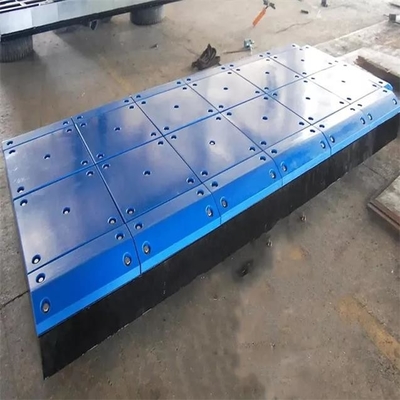

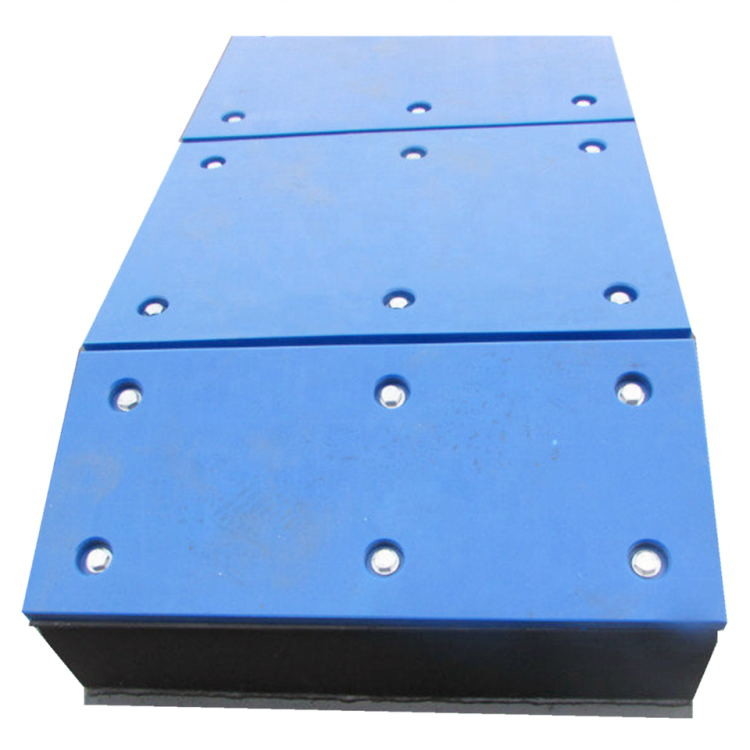

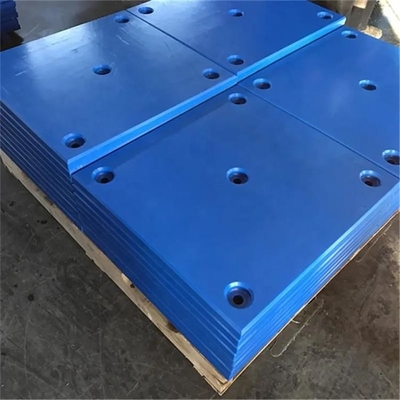

UHMWPE Dock Fender Face Pad Polyethylene Plastic Board Panel For Marine Fender

UHMWPE Dock Fender Face Pad Polyethylene Plastic Board Panel For Marine Fender
UHMWPE Dock Fender Face Pad Polyethylene Plastic Board Panel For Marine Fender UHMWPE Dock Fender Face Pad Polyethylene Plastic Board Panel For Marine Fender UHMWPE Dock Fender Face Pad Polyethylene Plastic Board Panel For Marine Fender UHMWPE Dock Fender Face Pad Polyethylene Plastic Board Panel For Marine Fender

Large Image :  UHMWPE Dock Fender Face Pad Polyethylene Plastic Board Panel For Marine Fender

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: PE Dock Fender Face Pad
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 50000 /pieces per Month

UHMWPE Dock Fender Face Pad Polyethylene Plastic Board Panel For Marine Fender

Description
Item: UHMWPE Dock Fender Face Pad Polyethylene Plastics Board Panel For Marine Fender Material: 100% Virgin PE
Color: Blue, Black, Yellow Standard Size: 500*500*10mm
Life-Span: 10 Year Surface: Smooth
Application: Ship Alongside,port,docking
High Light:

PE Dock Fender Face Pad

,

UHMWPE Dock Fender Face Pad

,

UHMWPE Fender Facing Pad

           UHMWPE Dock Fender Face Pad Polyethylene Plastics Board Panel For Marine Fender

   PE marine Facing Pads can protect the hull and wharf structure. PE facing pads will not swell or deteriorate due to water penetration. PE fender pads can withstand salt water, fuel and chemical leakage. Chemical inertness does not immerse chemicals in waterways, thereby disrupting fragile ecosystems.
 UHMWPE Dock Fender Face Pad Polyethylene Plastic Board Panel For Marine Fender 0

PE Marine Fenders Advantages:

  •   Impact resistance,Resistant to wear and tear,Corrosion resistant,Self lubricating
  •   Low water absorption,No pollution.
  •  The color is pure and any color can be made by us.
  •  According to different requirements with different application.
  •  Special specifications can be customized.

Product Specification:


Marine fenders typically operate as a group of single units where the type, location and density of their installation or deployment depends on several factors including their technical specifications, berth structure, ship type, etc.


 Product Name

 UHMWPE Dock Fender Face Pad Polyethylene Plastics Board Panel
 Material

ultrahigh molecular weight polyethylene



 Size




1220*2440mm, 1200*4000mm, 1250*3100mm, 2200*1000mm, other sizes can also be customized.


 Thickness

  5-200 mm


Density

  0.94-0.98 g/cm3



Water Absorption

<0.01%

Impact Strength


≥140 KJ/m2


Compressive Strength

≥42 Mpa

Friction coefficient0.11-0.17


UHMWPE Dock Fender Face Pad Polyethylene Plastic Board Panel For Marine Fender 1

Ship fender panels are processed from ultrahigh molecular weight polyethylene (UHMWPE) material, which has an extremely low coefficient of friction and excellent wear resistance, uv and ozone resistance, corrosion resistance and will not rot or crack when soaked in water for a long time.

UHMWPE Dock Fender Face Pad Polyethylene Plastic Board Panel For Marine Fender 2


Application:


Because of the advantages, UHMWPE plastic Fender Panel is widely used in the world’s major ports and wharves.
1. Ships in the harbor
2. Chafing plate
3. Trucks drive piles first
4. Floating wharf
5. Slide the wall fender
6. Protection of quaywall
7. Protection of piles

UHMWPE Dock Fender Face Pad Polyethylene Plastic Board Panel For Marine Fender 3

FAQ:


Q1: Are you a manufacturer or a trading company?
we are real manufacturer of Polyethylene Products, our factory located in Tangyin of China, we welcome customer from all over the world to visit us and build longer term business.

Q2. Can I have a sample order for UHMWPE​ fender pad?
Yes, we welcome sample order to test and check quality.

Q3. What about the lead time?
1) 2--3 days for sample.
2) 20--30 days for mass production. If urgent,we have green channel.

Q4. Do you have any MOQ limit for Marine fender pad order?
Low MOQ, 1pc for sample checking is available.

Q5. Is it OK to print my logo on UHMWPE fender product?
Yes. Please inform us your logo or design before mass production.
