Durable Mobile Square HDPE Plastic Crane Truck Outrigger Pads For Lifting Crane

Certification
China Tangyin Taixing Engineering Plastics Co., Ltd. certification
China Tangyin Taixing Engineering Plastics Co., Ltd. certification
I'm Online Chat Now

Durable Mobile Square HDPE Plastic Crane Truck Outrigger Pads For Lifting Crane

Durable Mobile Square HDPE Plastic Crane Truck Outrigger Pads For Lifting Crane
Durable Mobile Square HDPE Plastic Crane Truck Outrigger Pads For Lifting Crane Durable Mobile Square HDPE Plastic Crane Truck Outrigger Pads For Lifting Crane Durable Mobile Square HDPE Plastic Crane Truck Outrigger Pads For Lifting Crane Durable Mobile Square HDPE Plastic Crane Truck Outrigger Pads For Lifting Crane

Large Image :  Durable Mobile Square HDPE Plastic Crane Truck Outrigger Pads For Lifting Crane

Product Details:
Place of Origin: China
Brand Name: TaiXing
Certification: ISO9001
Model Number: Crane Outrigger Pad
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: Wooden Crate of Pallet
Delivery Time: 15-20 days after deposit received
Payment Terms: T/T, Western Union
Supply Ability: 50000 /Pieces per Month

Durable Mobile Square HDPE Plastic Crane Truck Outrigger Pads For Lifting Crane

Description
Item: Mobile Square HDPE Plastic Crane Truck Outrigger Pads For Lifting Crane Material: PE Virgin 100%
Color: Yellow,Black,Customized Dimension: 400*400*40 Mm,500*500*50 Mm,600*600*60 Mm
Shape: Square Or Round Processing Service::: Cutting, Moulding, CNC
Usage: Supporting Legs Of The Construction Machinery, And Play A Supporting Role
High Light:

Crane Outrigger Pad

,

Square HDPE Crane Truck Outrigger Pads

,

Lifting Crane Truck Outrigger Pads

Mobile Square HDPE Plastic Crane Truck Outrigger Pads For Lifting Crane

Durable Mobile Square HDPE Plastic Crane Truck Outrigger Pads For Lifting Crane

Crane outrigger pads are made from a high-quality polyethylene. This means they will not splinter, crack, are non-conductive and will not absorb water. They are easy to install and provide a safe working environment for heavy equipment with outrigger arms.

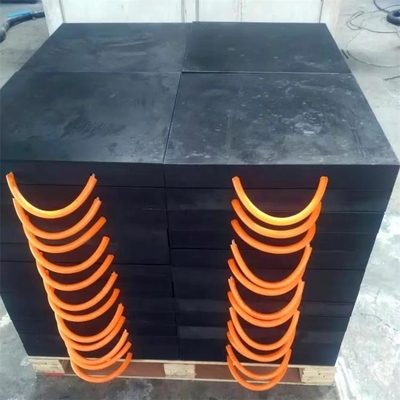

Durable Mobile Square HDPE Plastic Crane Truck Outrigger Pads For Lifting Crane 0



Benefits of Crane Otrigger Pads:



  • Work in sub zero temperatures.
  • Easy to mount, replace.
  • Reduced downtime.
  • Lower maintenance costs.
  • Durable & Long Lasting.
  • Cost Efficient compared to Steel or Aluminu
  • Safer to use in the field compared to other wood based pads.



Product Specification:




Size Load Capacity Load Spread Area
300*300*30mm 5 Ton 0.09 m²
400*400*40mm 10 Ton 0.16 m²
500*500*50mm 18 Ton 0.25 m²
600*600*60mm 25 Ton 0.36 m²
800*800*80mm 35 Ton 0.64 m²
1000*1000*100mm 80 Ton 1.00 m²
1200*1200*100mm 160 Ton 1.44 m²
1500*1500*100mm 200 Ton 2.25m²

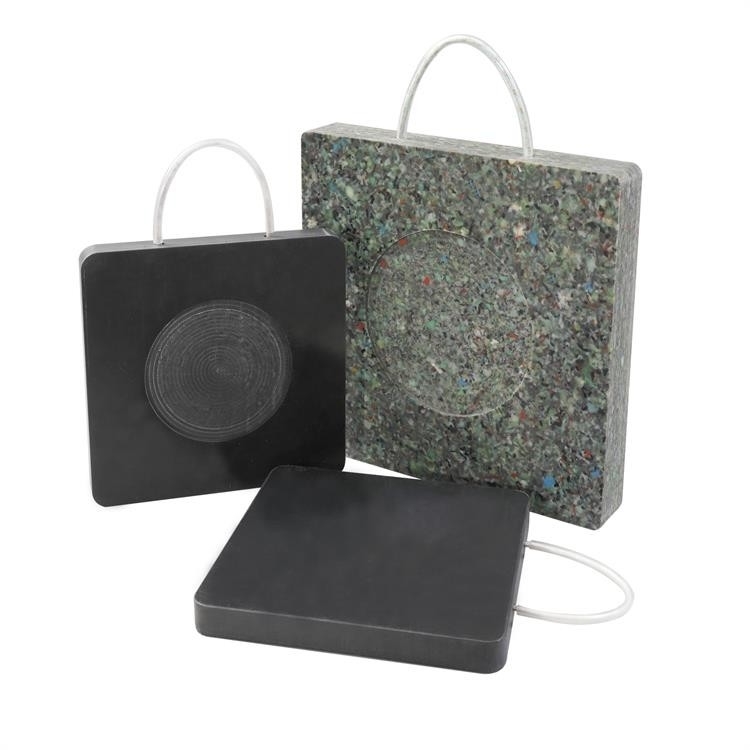

Durable Mobile Square HDPE Plastic Crane Truck Outrigger Pads For Lifting Crane 1

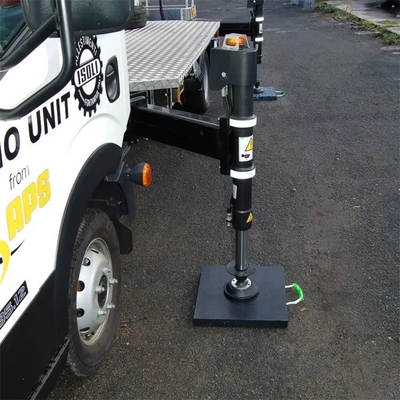

UHMW Plastic crane outrigger pads are used under the support legs of heavy cranes, crawler cranes, boom pumps, concrete pumps, fire trucks, utility trucks, tree trimmers, any type of aerial equipment, etc. Make the machine work safely!



Durable Mobile Square HDPE Plastic Crane Truck Outrigger Pads For Lifting Crane 2



UHMW Plastic Crane Outrigger Pads Features:


* More Stable
UHMW outrigger pads is made by moulding press process craft. the thickness can be customized and as thick as 200mm. It is super durable, it will not change the shape and thickness even after decades. The surface remain flat under extrem high loading capacity.


* Long lasting service life
One outrigger pad can be used forever!​ Because of the excellent wear resistance and strong structure, our pads will not warping, splinter, bend or any other damage.


* Waterproof, Anti chemical
UHMW polyethylene water absorption rate less than 0.01%. It can be used in any weather, due to its chemical resistance features, it also can be used in critical working site.

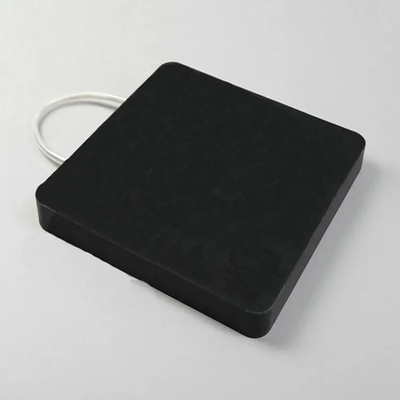

Durable Mobile Square HDPE Plastic Crane Truck Outrigger Pads For Lifting Crane 3







Company Profile :


  Tangyin Taixing Engineering Plastic Co., Ltd. is located in Tengfei road, Yigou town, Tangyin county, Henan. We have gained many professional certificates with 20 years of experience.

   We are always dedicated to Providing high-performance goods and Producing new products for our customers. Mainly produce and sell UHMWPE sheet, UHMWPE Liner Sheet,Conveyor Roller ,Cutting board, Outrigger pad, ground mat. Our products sell well in domestic and international markets, such as the United States,Australia, Singapore, Pakistan, Thailand,South America etc, and are favorably appraised by clients.
